SUPERWORKSTATION 7047GR-TPRF User's Manual

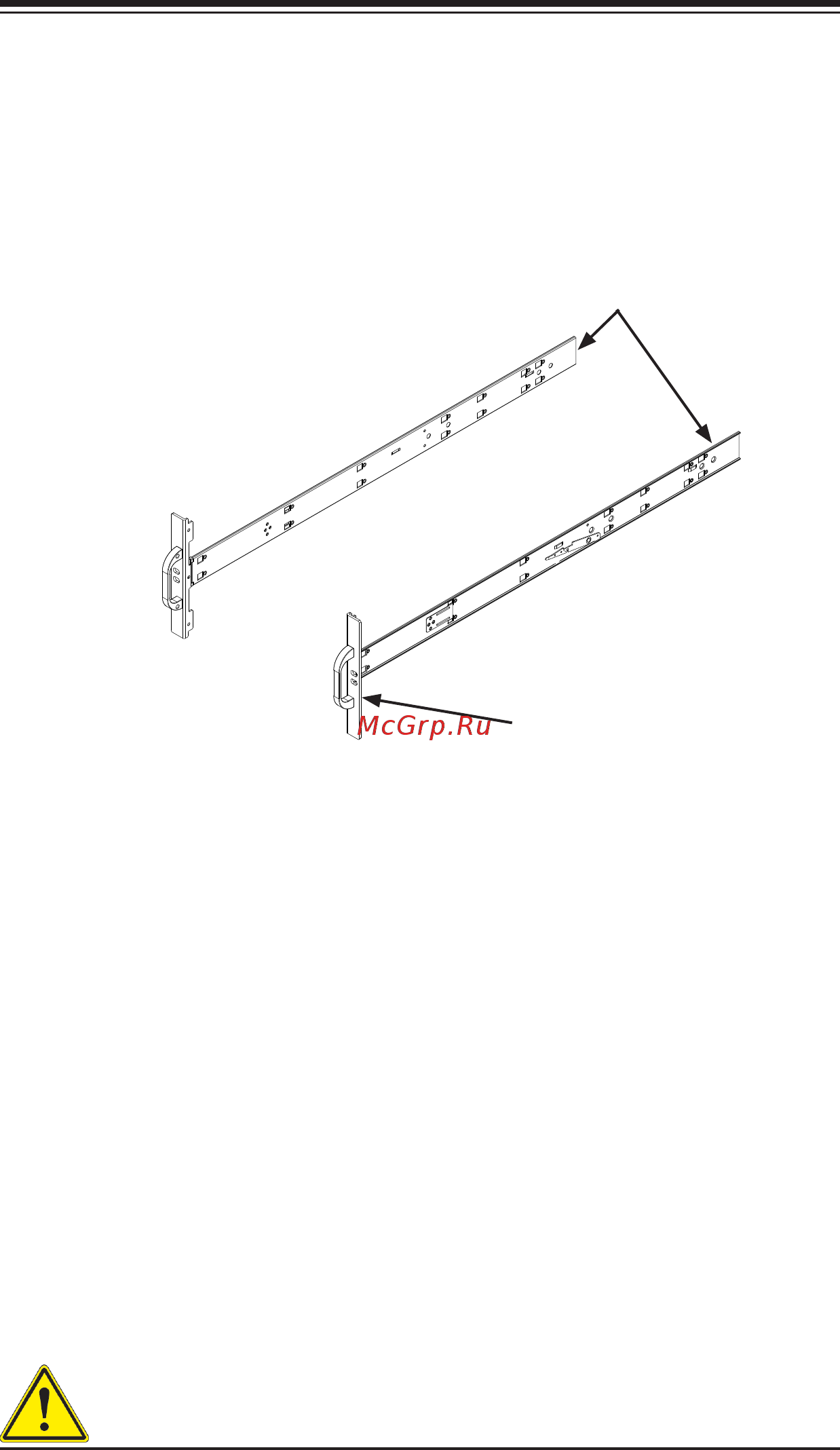

Figure 2-2. Identifying the Inner Rails and Chassis Handles

Chassis Handle

Inner Rails

Installing the Chassis Handles and Inner Rails

Installing the Inner Rails

1. Locate the chassis handles and handle screws.

2. Align the chassis handle with the front of the chassis and secure with the

three chassis handle screws.

3. Repeats steps 1 and 2 with the other handle.

4. Locate the inner rails and screws in the shipping package.

5. Align the inner rails against the chassis, as shown. Conrm that the rails are

ushed against the edge of the chassis.

6. Tighten the screws. Do not over-tighten.

7. Repeat steps 5 and 6 with the other inner rail.

Identifying the Sections of the Rack Rails

The chassis package includes two rack rail assemblies in the rack mounting kit.

Each assembly consists of two sections: an inner xed chassis rail that secures

directly to the workstation chassis and an outer xed rack rail that secures directly

to the rack itself.

Warning: do not pick up the server with the front handles. They are de-

signed to pull the system from a rack only.
