Chapter 5: Advanced Serverboard Setup

5-3

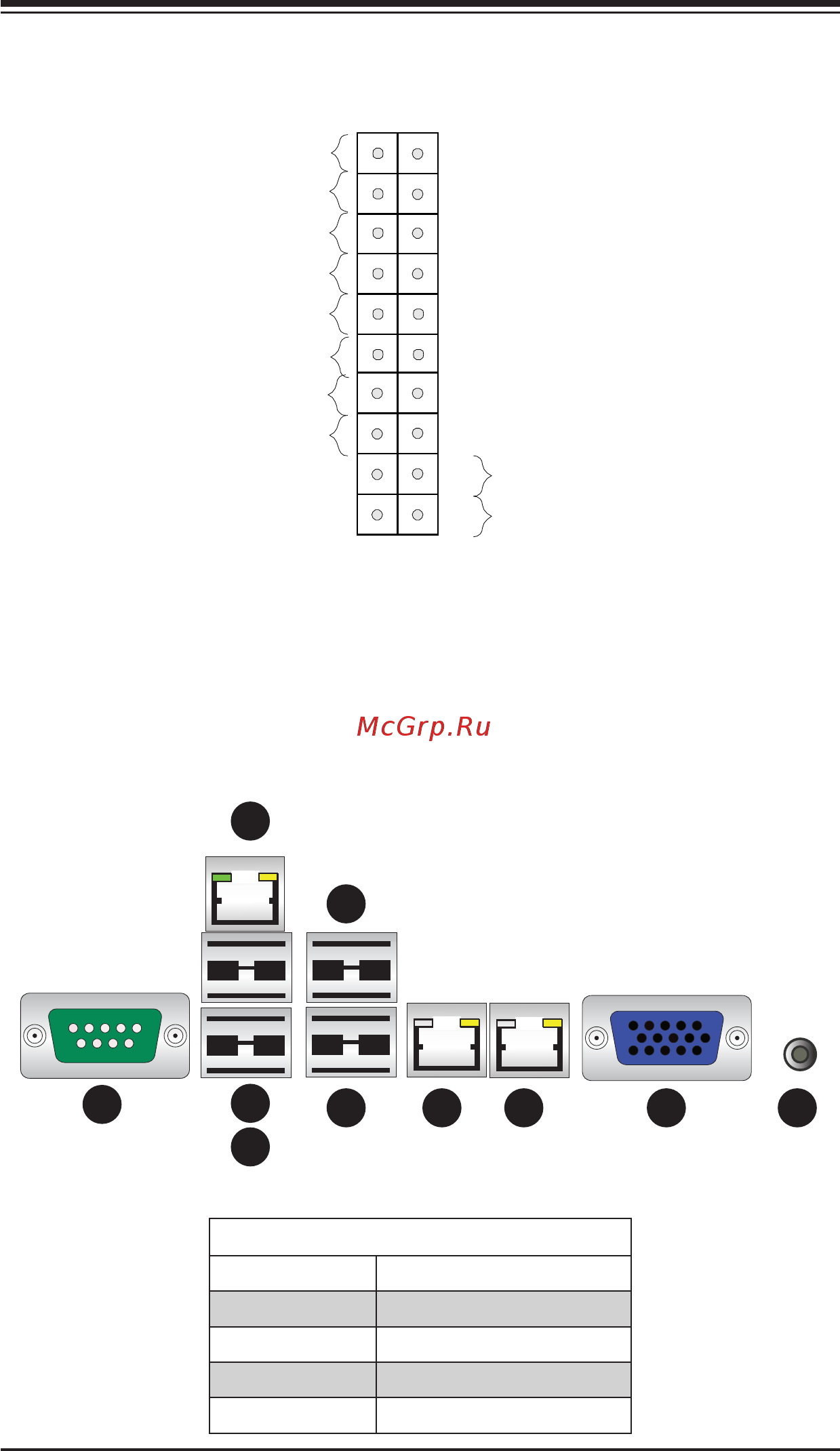

Rear I/O Ports

1. COM1 Port 2. USB0 Port

3. USB1 Port 4. Dedicated IPMI LAN Port

5. USB2 Port 6. USB3 Port

7. LAN1 Port 8. LAN2 Port

9. VGA Port 10. UID Switch

Figure 5-1. Control Panel Header Pins

5-3 I/O Ports

The I/O ports are color coded in conformance with the PC 99 specication. See

Figure 5-2 below for the colors and locations of the various I/O ports.

Figure 5-2. I/O Ports

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID LED)

NIC1 Link LED

Reset Button

Power Fail LED

HDD LED

FP PWRLED

Reset

PWR

3.3 V

ID_UID_SW/3/3V Stby

Red+ (Blue LED Cathode)

Ground

1920

3.3V

Ground

NMI

NIC2 Link LED

NIC2 Activity LED

NIC1 Activity LED
