SUPERWORKSTATION 7047GR-TPRF User's Manual

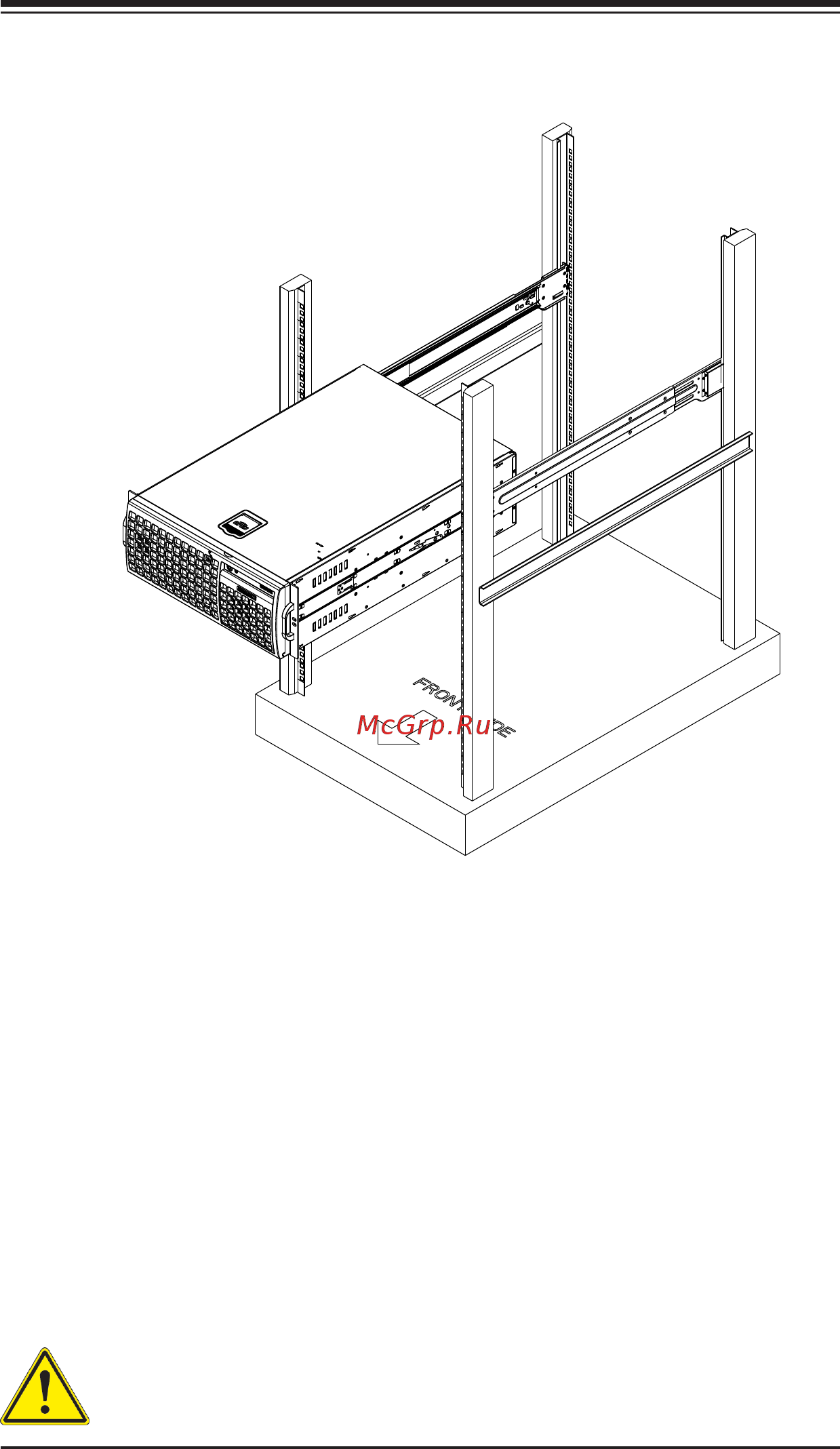

Figure 2-5. Installing the Rack Rails

Installing the Chassis into a Rack

Installing the Chassis

1. Conrm that chassis includes the inner rails and the outer rails.

2. Align the inner chassis rails with the front of the outer rack rails (C).

3. Slide the inner rails into the outer rails, keeping the pressure even on both

sides (you may have to depress the locking tabs when inserting). When

the chassis has been pushed completely into the rack, you should hear the

locking tabs "click" into the locked position.

Stability hazard. The rack stabilizing mechanism must be in place, or the

rack must be bolted to the oor before you slide the unit out for servicing.

Failure to stabilize the rack can cause the rack to tip over.

Note: gures are for illustrative purposes only. Always install servers to the bottom

of a rack rst.
