Chapter 2: Workstation Installation

2-7

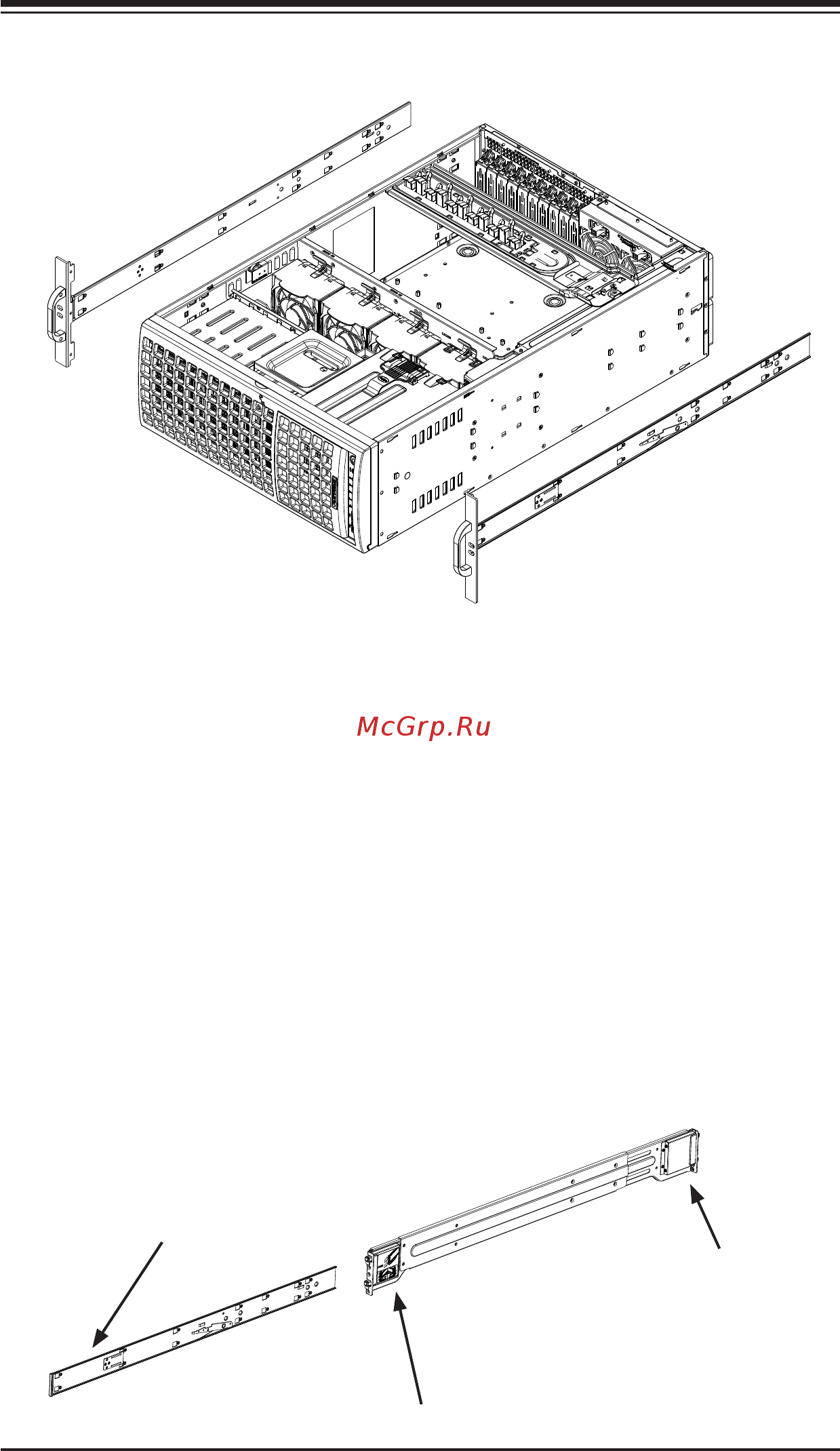

Figure 2-3. Installing the Inner Rack Rails

Installing the Outer Rails to the Rack

Installing the Outer Rails

1. Attach the rear bracket to the middle bracket.

2. Adjust both the brackets to the proper distance so that the rail ts snugly into

the rack.

3. Secure the rear of the outer rail with two M5 screws and the rear of the rack.

Note: The outer rail is adjustable from approximately 26" to 38.25".

4. Repeat steps 1-3 for the left outer rail.

Figure 2-4. Assembling the Outer Rails

Slide into the Inner Rail

Secure to the

Rear of the Rack

Attach to Middle Rail
