Karmel Baby Model No. 2626, 2626EX
Page 17
gmpopcorn.com

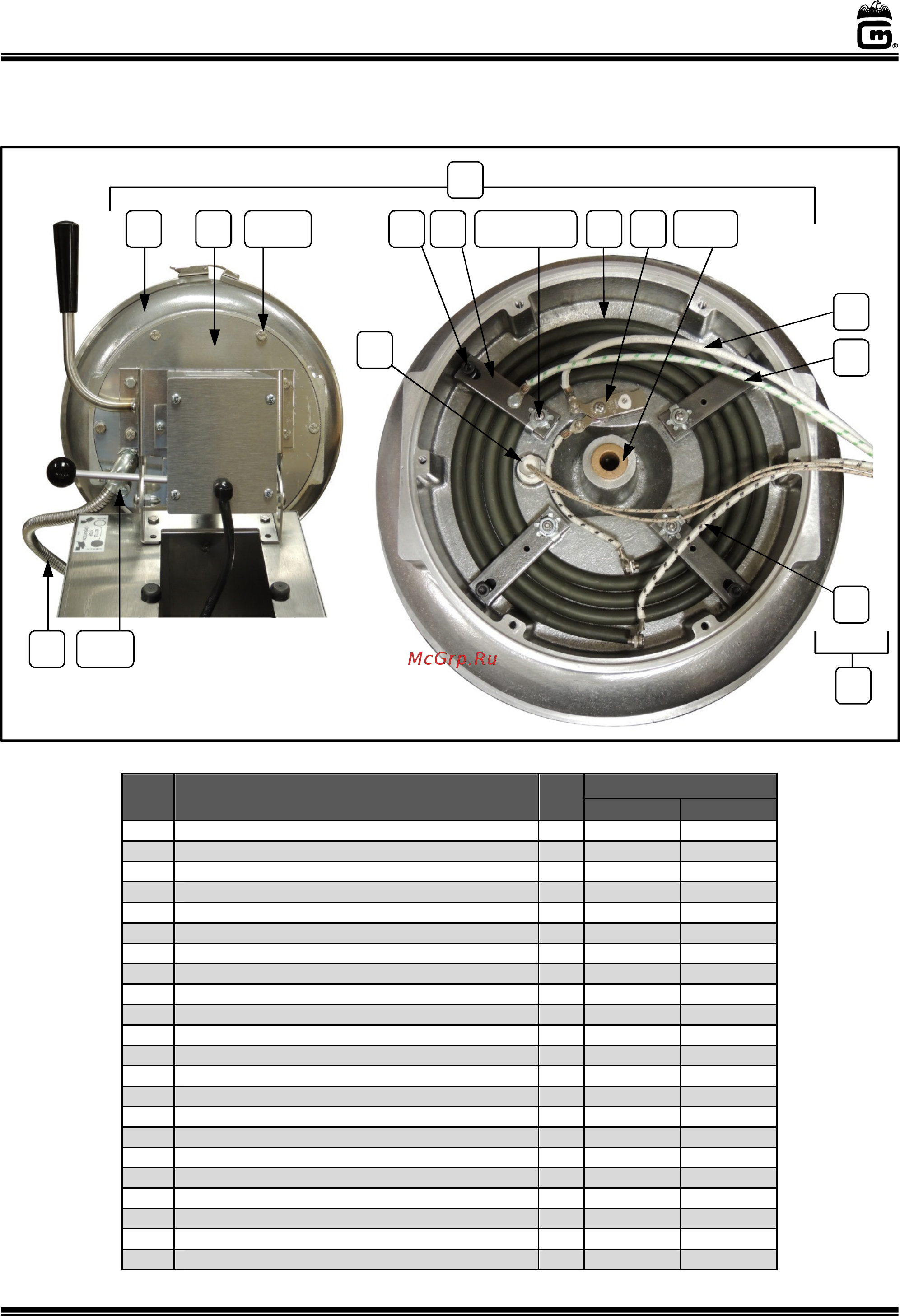

Kettle Lead-In / Kettle Bottom Breakdown
Item
Part Description Qty.
Part Number
2626
2626EX
1
FLEXIBLE CONDUIT
1
82107
-
19
87107
-
19
2
CONNECTOR 90 DEGREE
1
46241
46241
3
1/2 CONDUIT BUSHING NM
1
82135NM
82135NM
4
KETTLE LEAD ASSY
(incl
s
.
wire items 5
-
7
below
)
1
55546
55546
5
12GA MGT BLK 40IN
1
MB12E40U
MB12E40U
6
12GA MGT GRN 30IN
1
MG12I30U
MG12I30U
7
12GA MGT WHT 37IN
1
MW12U37E
MW12U37E
8
KETTLE SUB
ASSEMBLY (includes
parts below)
1
88730
88730EX
9
MARK 2.5 KETTLE ASSEMBLY
1
16766
16766
10
BOTTOM PLATE
1
111013
111013
11
1/4
-
20 X 1/2 HX HD SCREW
6
12382
12382
12
WASHER 1/4 INTERNAL TOOTH
6
12383
12383
13
RTD HEAT SENSOR
1
46299
46299
14
1/4
-
20 X
1/2 Socket Head Screw
4
46722
46722
15
ELEMENT CLAMP 16/18OZ
4
67894
67894
16
1/4
-
20 x 1.25 SET SCREW
4
59060
59060
17
NUT RETAINER
4
50190
50190
18
HEX NUT 1/4
-
20
4
74133
74133
19
TUBULAR HEAT ELEMENT 1720
1
67889
67889EX
20
THERMOSTAT 525F
1
76702
76702
21
FLANGE BEARING MARK 2.5 (bottom Bearing)
1
16735PMO
16735PMO
22
FLANGE BEARING MACHINED
(top bearing)
1
16735
16735
2, 3 1
5
6
7
4
10
11, 12
20
9
14
15
16, 17, 18
19
13
8
21, 22
Bottom
Bearing
Shown
Bottom View
Element
View
