Karmel Baby Model No. 2626, 2626EX
Page 18
gmpopcorn.com

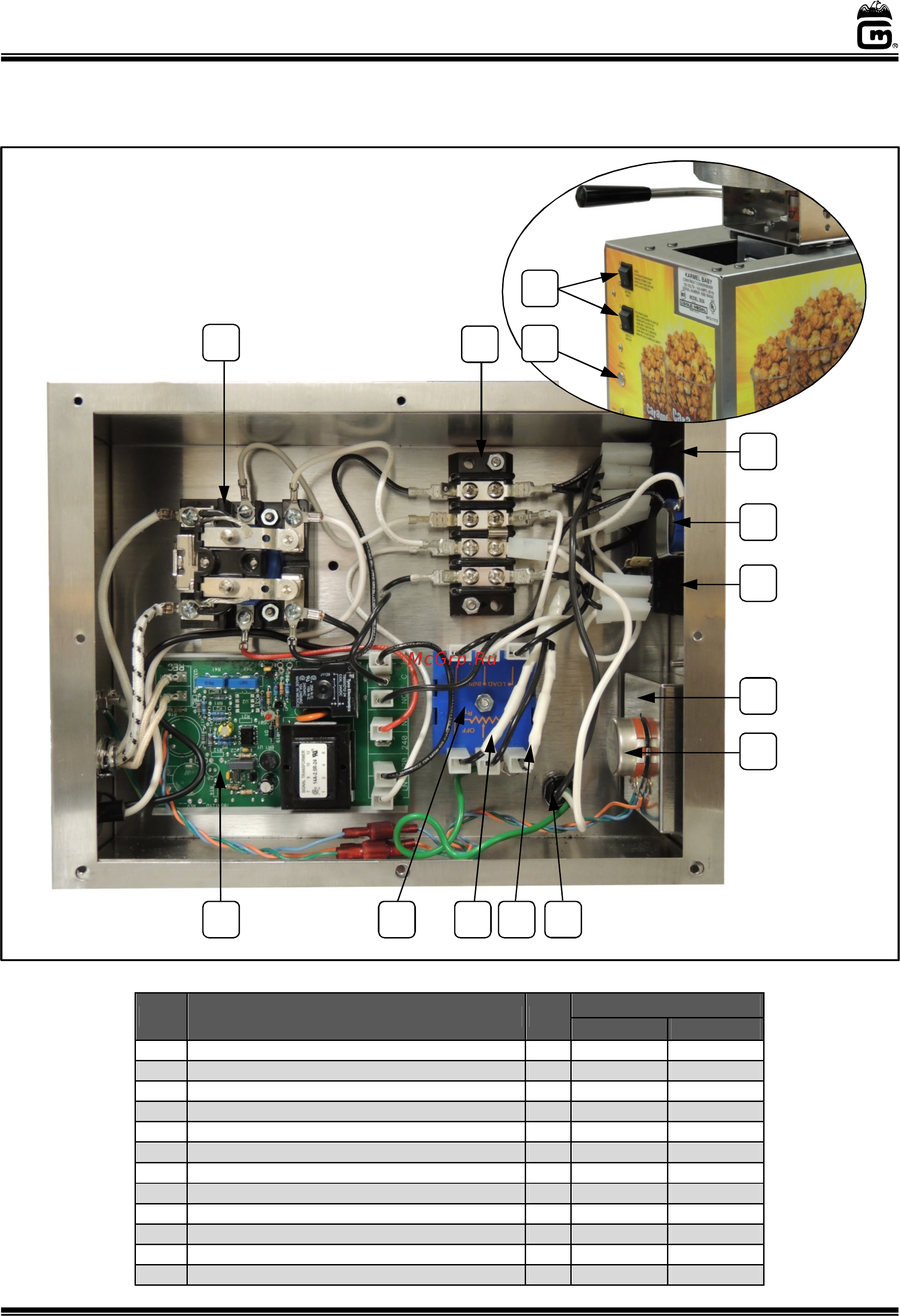

Controls and Control Box Interior View
Item
Part Description Qty.
Part Number
2626
2626EX
1
RELAY, 30A DPST 120V
1
55219
55219EX
2
TERMINAL BLOCK
1
42006
42006
3
SWITCH, ROCKER DPDT LGHT
2
48616
48616
4
HOLE PLUG, 1/2 DIA. SS
1
45395
45395
5
BUZZER SIGNAL
1
46118
46120
6
POTENTIOMETER ENCLOSURE
1
55120
55120
7
POTENTIOMETER, 500 OHM
1
46326
46326
8
STRAIN RELIEF #SR
-
6P3
-
4
1
76026
76026
9
RESISTOR, 240K 1/2 WATT (Front, “ON”)
1
48689
48689
10
RESISTOR, 750K 1/2 WATT
(Rear, “OFF”)
1
48690
48690
11
TIMER, PERCENTAGE 60 SEC
1
48688
48688EX
12
TEMPERATURE CONTROL, RTD
1
55057
55057
2
1
12
5
3
3
7
11
10
9
6
8
3
4
