OPTIONS AND ACCESSORIES
English
Installing Legs
Use the following procedure to install optional 4″ (102 mm) or
6″ (152 mm) legs.
1. Remove the pan shelves and drain the water reservoir, if
necessary.
2. Carefully lay the unit on its back side. This step requires
two people.
NOTE: Place a piece of cardboard between the cabinet and
the floor to prevent marring the cabinet finish.
3. Remove the mounting screws and casters on each corner
of the unit, if installed.
4. Reinstall the mounting screws at each corner directly into
the bottom of the unit. They are not needed for leg
installation.
5. Screw the legs to the bottom of the unit. Tighten securely.
6. Return the unit to its upright position. This step requires
two people.
7. Replace the pan shelves inside the cabinet.
8. Level the unit after it is placed in its final position. The feet
on the legs are adjustable for leveling.
Stacking Option
A stacking option is available for stacking one unit on top of
another. The stacking option requires the purchase of an
additional unit with a stacking bracket and hardware to secure
the top unit to the bottom unit.
NOTE: Casters are required on stacked units.
1. Make sure the bottom unit is completely assembled with
casters installed. Refer to the appropriate procedure in
either the INSTALLATION section or the OPTIONSAND
ACCESSORIES section.
2. Remove the pan shelves from inside each cabinet and
drain the water reservoirs, if necessary.
3. Carefully lay the top unit on its side (this step requires at
least two people).
NOTE: Place a piece of cardboard between the cabinet and
the floor to prevent marring the cabinet finish.
4. Attach the stacking bracket to the underside of the top unit.
a. Position the bracket so that the flange without screw
holes is toward the front and the flange with two screw
holes is toward the back.
b. Screw four bracket screws on each end of the side
brackets to secure the side brackets to the front and
back bracket.
c. At each corner of the side brackets, screw the bottom
screws through the underside of the bracket and into the
underside of the unit (eight screws total, supplied with
kit). Tighten securely.
5. Remove and discard the two screws in the rear of the top
cover of the bottom unit.
6. Carefully lift and place the top unit onto the bottom unit (this
step requires at least two people). The flanges on the
stacking bracket will fit around the front, sides, and back of
the bottom unit. CAUTION! Do not lift unit by stacking
bracket. Bracket has edges that may cause injury.
7. Align the holes in the back flanges of the stacking bracket
with the holes in the back of the top cover on the bottom
unit.
8. Install the two mounting screws (supplied with kit) through
the holes in the back flanges of the stacking bracket and
into the holes in the back of the top cover on the bottom
unit. Tighten securely.
9. Replace the pan shelves inside each cabinet.

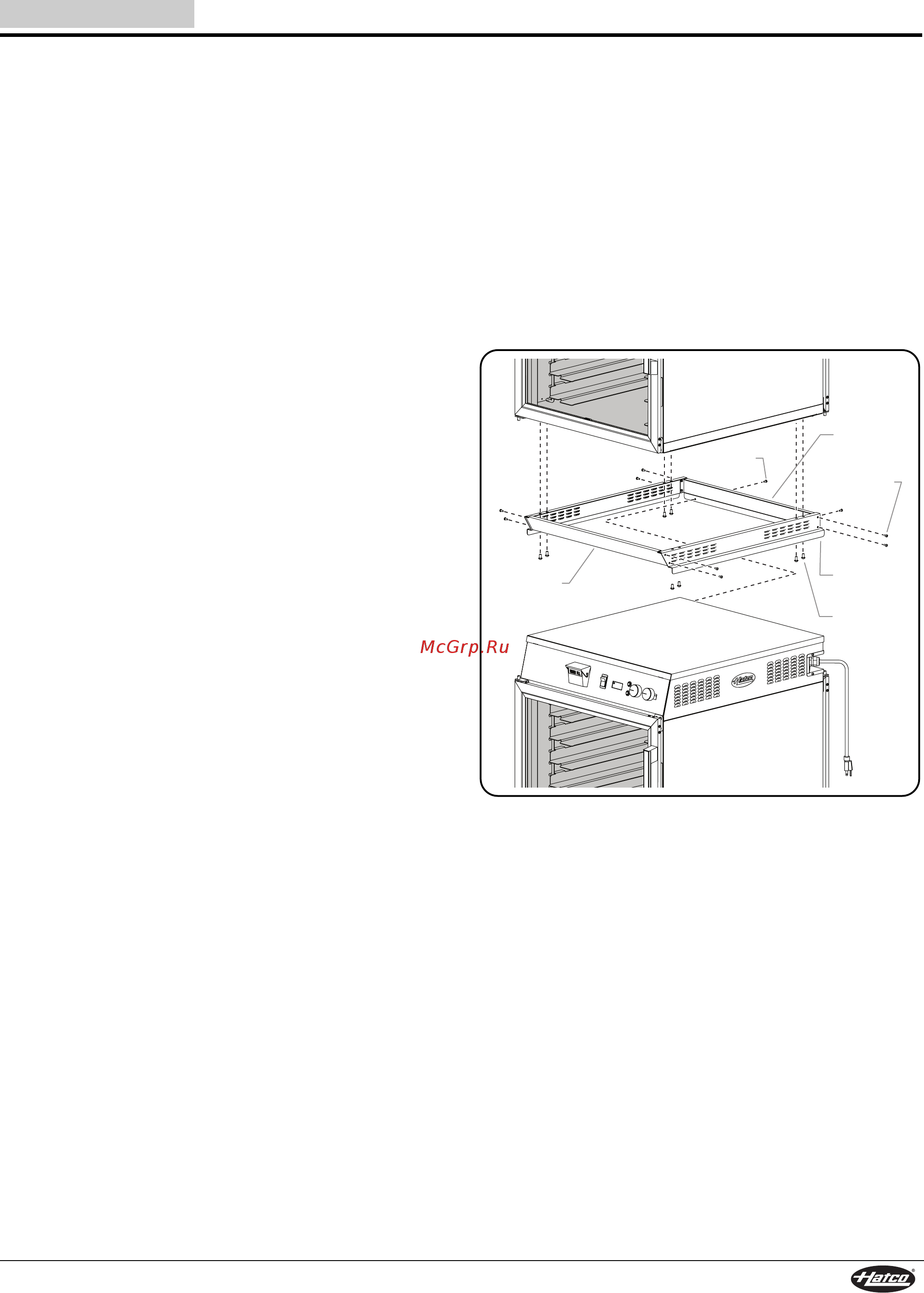

Stacking two units
Stainless Steel Door (FSHC-6W Series Only)
The optional heavy duty stainless steel door is not available for
retrofit.
Pan Shelves
Additional stainless steel pan shelves are available as
accessories. Use additional pan shelves to increase the pan
capacity of the unit when the height of the pans/product allow.
Front
Bracket
Side
Bracket
Bottom
Screws
Bracket
Screws
Back
Bracket
Mounting
Screw
