7.0 CLEANING INSTRUCTIONS
NOTE:
- Cleaning must be carried out by fully trained personnel only.
- Isolate machine from mains supply before carrying out any cleaning.
- Do not steam clean or use a jet of water.
-Do not use any form of caustic detergent or abrasive cleaners. -
All the outer surfaces of the machine should be wiped over daily with warm soapy water.
HARD AND SOFT DOUGH HOPPERS
BETWEEN PRODUCT MIX CHANGES
The feed hopper, pump assembly, template, nozzles etc. should be removed from
the machine and dismantled for thorough cleaning between product mix changes.
1. Open top safety guard and remove excess mixture remaining in the feed hopper.
2. Lift off front see-through safety cover.

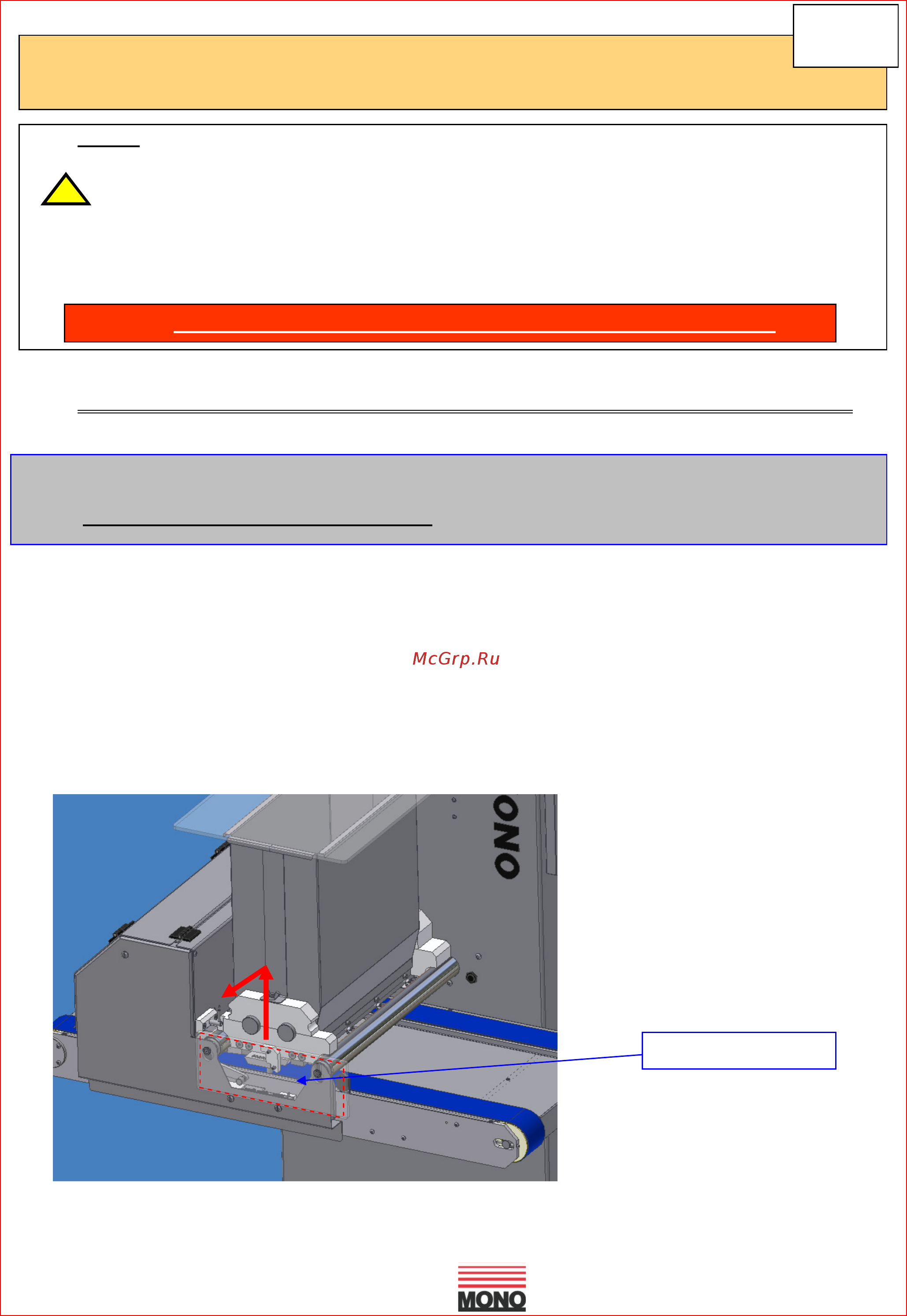

SAFETY COVER
Omega
PLUS
