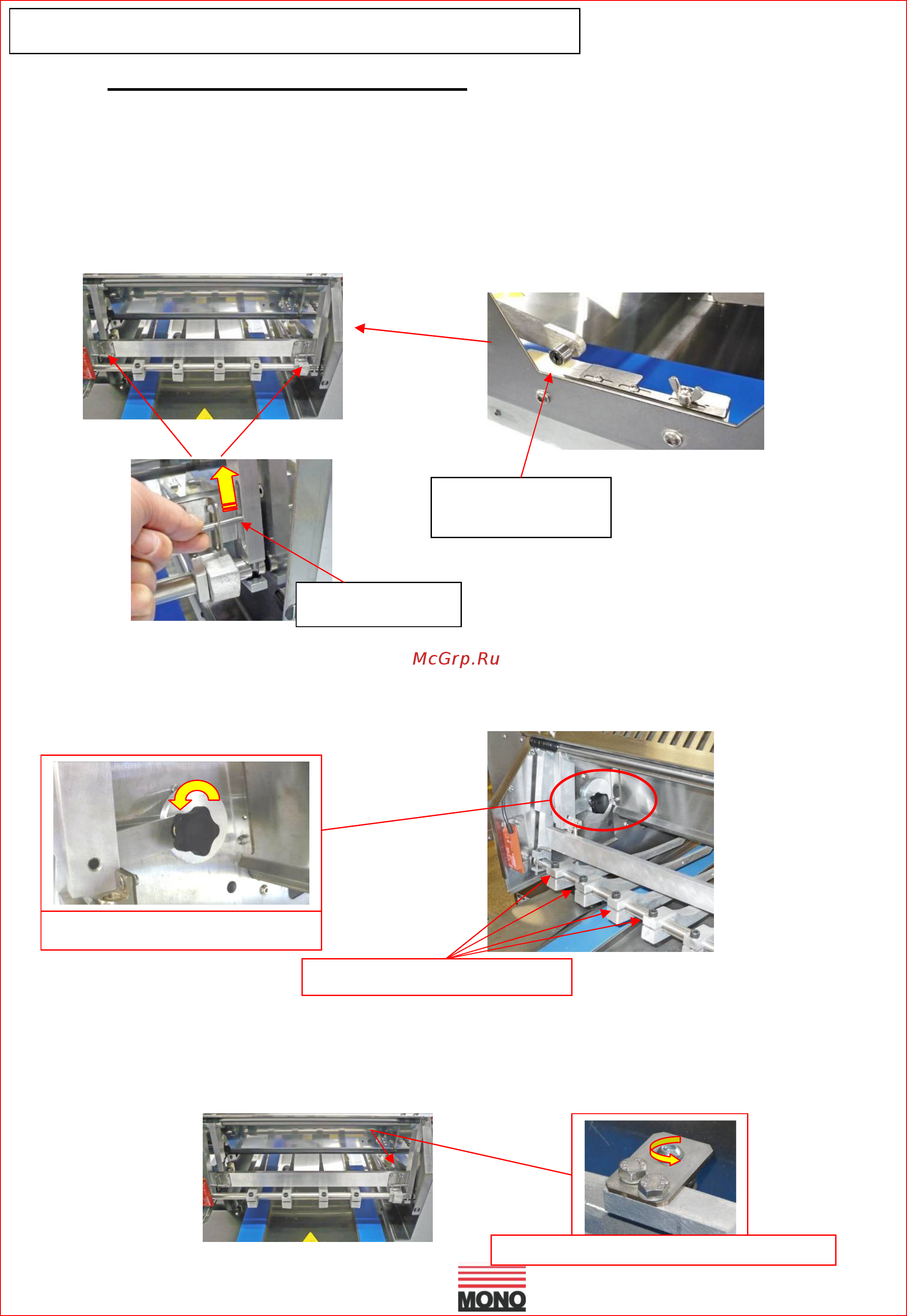

FITTING WIRECUT FINGERS

1. Select wirecut fingers that suit the chosen template to be used.i.e. the correct

number to match the number of dies across template.

2. Remove drop arm pins and insert finger frame into arms. Ensure that the

follower arm roller is positioned on the cam track.

3. Replace drop arm pins.

4. Disconnect motor release knob and push fingers forward in order to line up the

wire with the dies.

5. Adjust individual finger bolts to raise the wire to touch the bottom surface of the

dies used in the template.

Adjust the spring loaded screw to raise or lower all fingers at the same time.

FOLLOWER ARM

ROLLER

DROP ARM PINS

MOTOR RELEASE KNOB

FINGER ADJUSTING BOLTS

SPRING LOADED ADJUSTMENT SCREW

IF WIRECUT FITTED
