6
ENGLISH
* Pipes between the cooling tower and the icemaker should be
at least 20 mm DIA to reduce pressure loss, even though the
icemaker ttings are 13 mm DIA.
* Pressure loss in the water circuit inside the unit will be 5 to 6 m
when the cooling water ows at the ratio of 4 to 5 lit/min.
* Select a circulating pump referring to the above values of heat
ow.
[Icemaker Connections]
1) Attach the angled end of exible inlet hose (accessory) to the
G3/4 tting on the rear of the icemaker as indicated, ensuring
rubber sealing washer is correctly positioned. Hand tighten
sufciently to provide leak free joint.
2) Attach the other end of inlet hose to the water tap, noting
washer is correctly positioned before hand tightening as above.
Note: If ltration or treatment is used, ensure icemaker section
only is on treated water supply, not the condenser.
3) Attach grey exible outlet hose (accessory) to the R3/4 tting
on the rear of the icemaker as indicated, conrming tment of
rubber washer before nally hand tightening the joint. The hose
can be cut to length as necessary to suit position of main drain.
4) By means of a suitable spanner or wrench, tighten the 1/2-
3/4 and 3/8-3/4 nipples (accessory) into the Rc1/2 and Rc3/8
ttings on the rear of the icemaker as indicated. P.T.F.E. tape
and/or a suitable sealing compound should be used to obtain a
leak free joint.
Note: Jointing compounds should be approved and suitable for
potable water use.
5) Connect the condenser cooling circuit to the free end of 1/2-3/4
and 3/8-3/4 nipples as indicated using a suitable rigid type pipe.
[b] Connections according to regulations other than WRAS
by utilising accessory hoses
1) Follow the instructions from 1) to 4) in [a] above.
2) For condenser connections, use supplied accessory hoses and
make the same connections as 1) to 3) in [a] above to the free
end of 1/2-3/4 and 3/8-3/4 nipples as indicated.

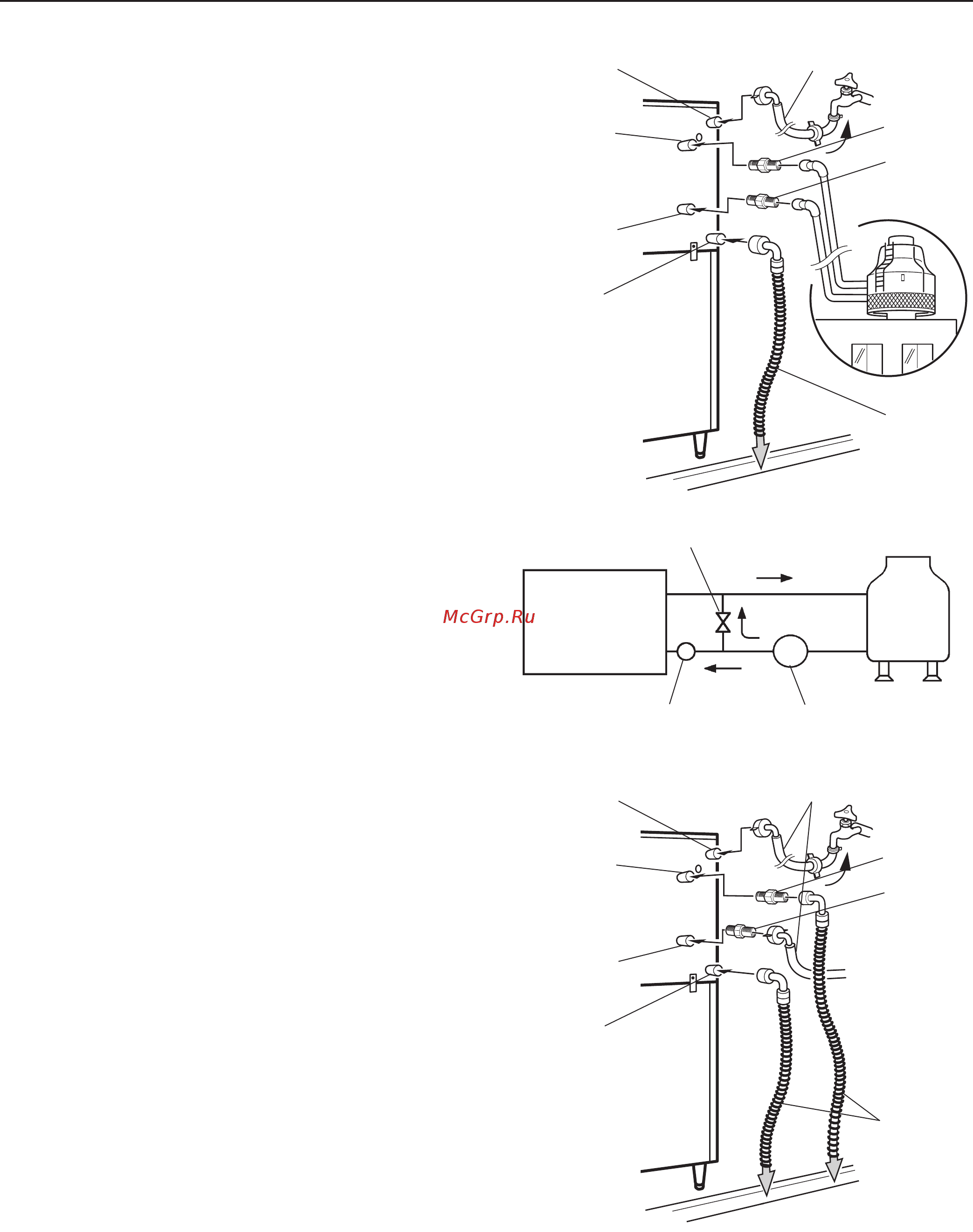

Icemaker Cooling
Tower
Flow Control Valve
Strainer Pump
P
Potable Water
Inlet G3/4
Inlet Hose
Drain Outlet
R3/4
Outlet Hose
Cooling Water
Inlet Rc1/2
Cooling Water
Outlet Rc3/8
3/8-3/4 Nipple
Condenser Cooling Circuit
Icemaker
Bin
Water-Cooled Model [a]
1/2-3/4 Nipple
Potable Water
Inlet G3/4
Drain Outlet
R3/4
Outlet Hose
Cooling Water
Inlet Rc1/2
Cooling Water
Outlet Rc3/8
Icemaker
Bin
Water-Cooled Model [b]
Inlet Hose
3/8-3/4 Nipple
1/2-3/4 Nipple
