Ceiling/Shelf drilling and Plate Fixing

CEILING/SHELF DRILLING

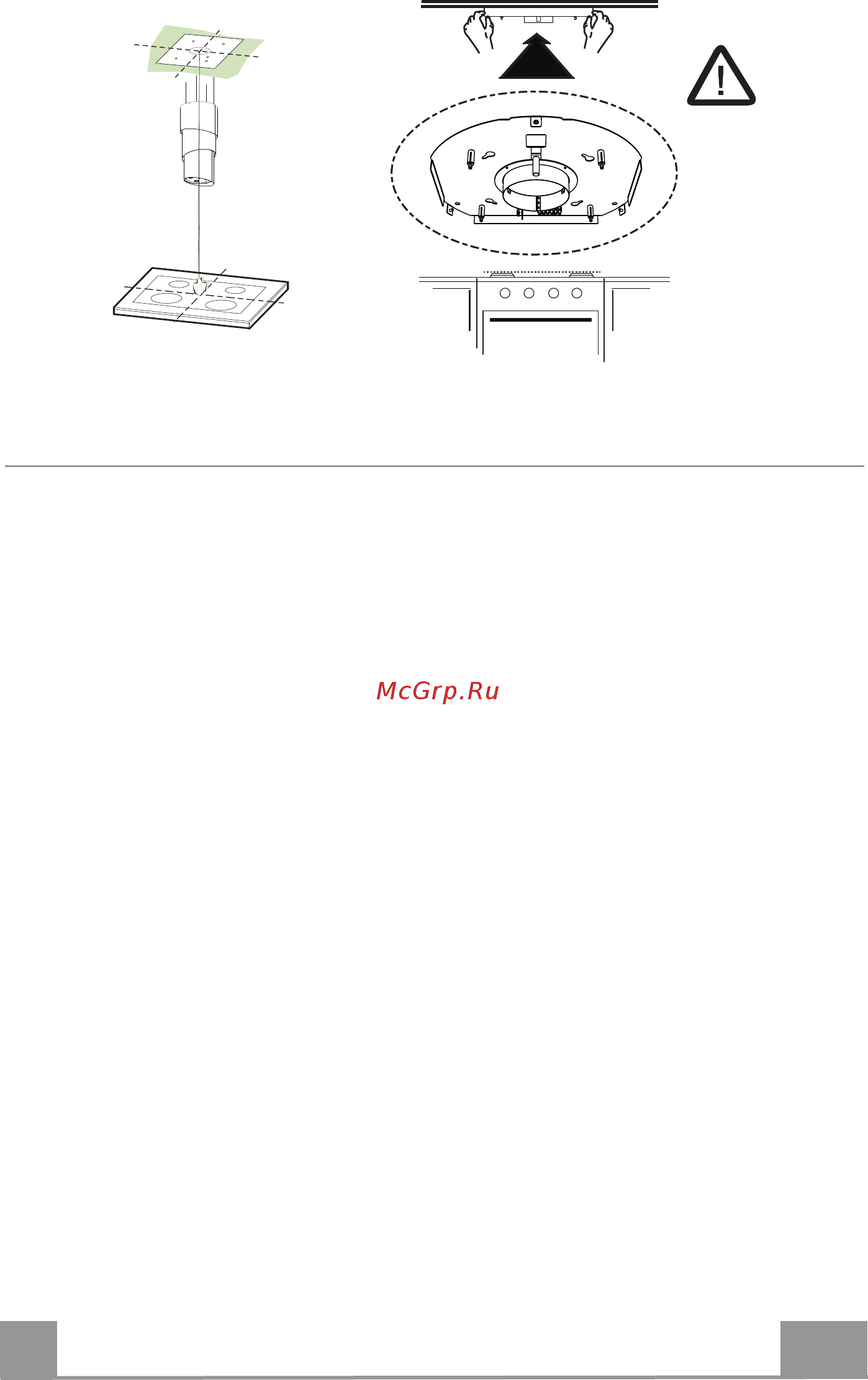

• Use a plumb-line and mark the centre of the cooking hob on the Support Ceiling/Shelf

• Rest the Plate against the Ceiling/Shelf, making sure it is the right way up, as shown in the

figure.

• Mark the centres of the holes in the plate.

• Drill the following points:

• Ceilings in solid concrete: As per concrete plugs used.

• Ceilings in hollow bricks with 20 mm resistance thickness: Drill a hole ø 10 mm (insert

Plugs 11 supplied immediately).

• Ceilings with Wood Beams: As per Wood Screws used (not supplied).

• Wooden shelf, with a resistant thickness of 15 mm: drill a hole ø 7 mm.

• Feeding the electric supply cable: drill a hole ø 10 mm.

• Insert two screws, crossing them and leaving 4-5 mm from the ceiling:

• for solid concrete, concrete plugs, not provided.

• for hollow bricks with approx. 20 mm resistance thickness, screws 12h, provided.

• for wooden beams, wood screws, not provided.

• for wooden shelves, screws with washers and nuts, not provided.
