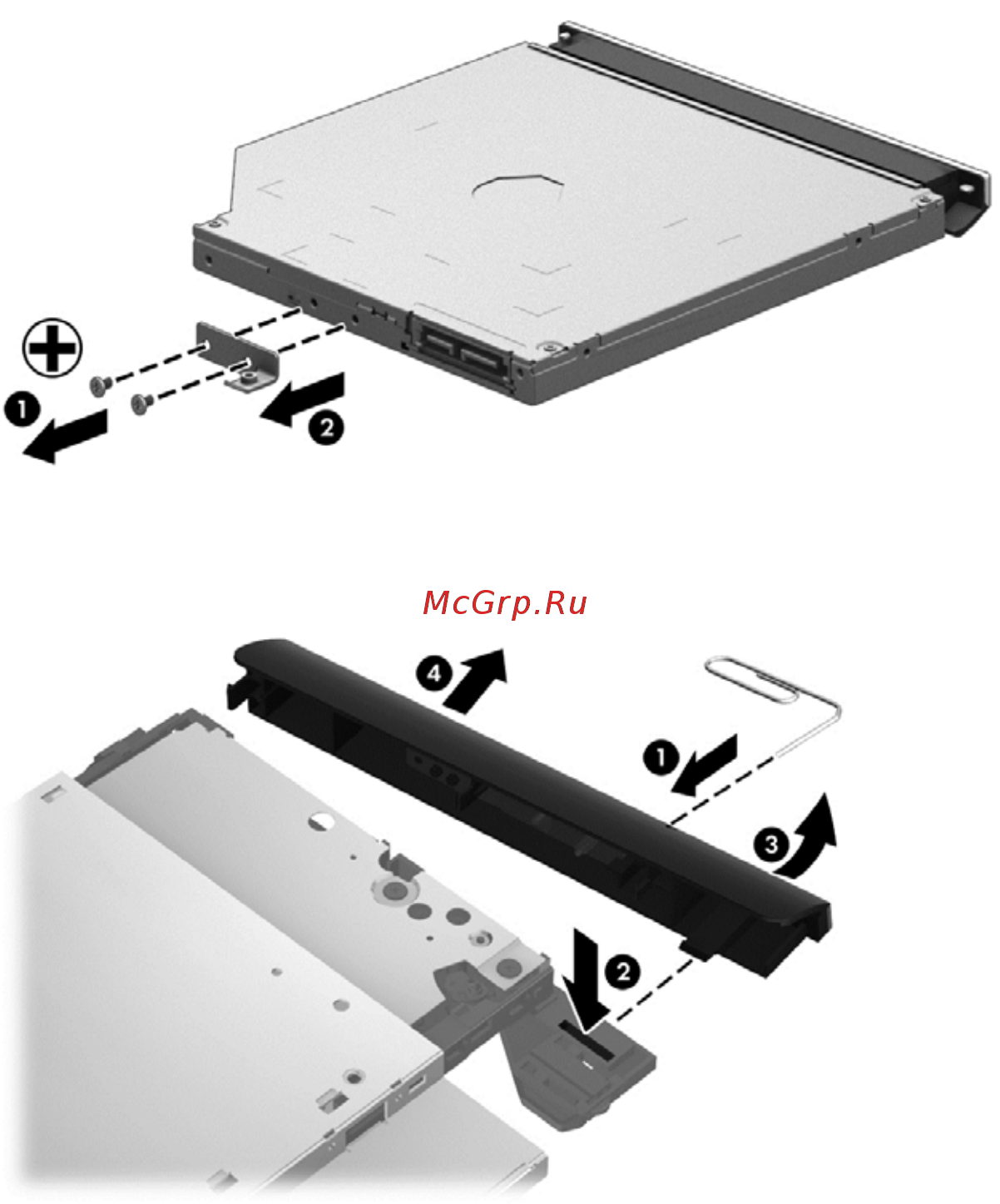

2. Use a straightened paperclip to press in gently on the release hole (1) and release from the tab (2) until

the disc tray releases. Tilt the tray (3) and pull the bezel (4) to remove it.

Reverse this procedure to reassemble and install the optical drive.

Component replacement procedures 33
