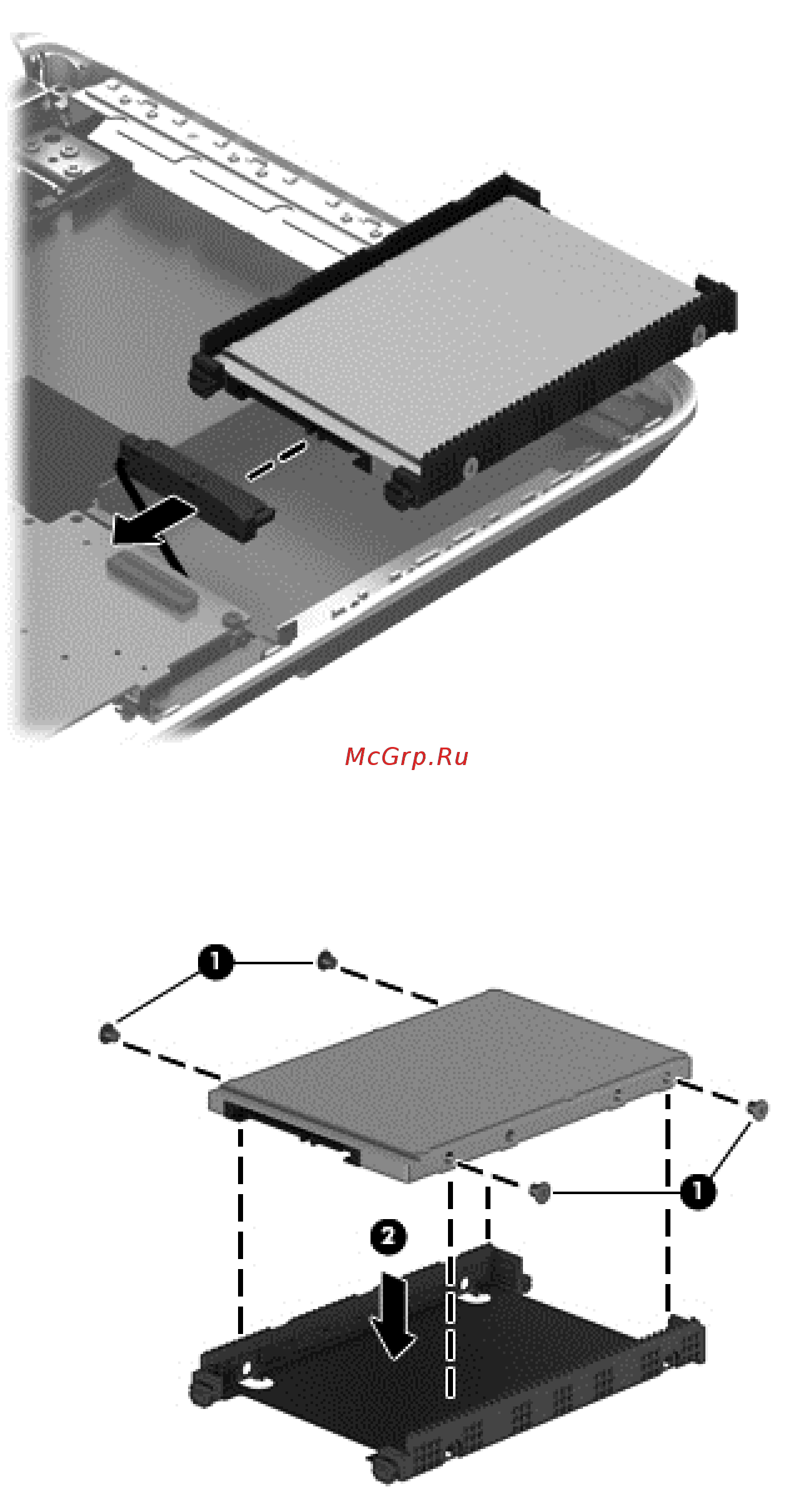

3. Disconnect the hard drive connector cable from the hard drive, and then remove the hard drive.

4. If it is necessary to disassemble the hard drive, perform the following steps:

a. Remove the four Phillips M3.0×3.5 screws (1) from the bracket.

b. Remove the bracket (2) from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
