1. Call 95 preset or call 9 preset twice within 3 seconds, to enter into
main menu.
2. Operate the joystick up and down and move the cursor to【SYS-
TEM SETTING】, press【OPEN】to enter submenu.
3. Operate the joystick up and down and move the cursor to【DOME
ID SETTING】, press【OPEN】to call dome parameter setting menu.
【S/N】: Series number of the dome
【CONF】: Confirm S/N and input the same number with S/N
【DOME ID】: Set dome address (ID range: 001-255)
1. If [S/N] and [CONF] are different, the above operation
can't be implemented.
2. The dome address should be set as 255 by setting SW1
as ON at first, there will be display this item [DOME ID]
3. After setting dome address, the dome need to restart, then
the dome address will be effective.

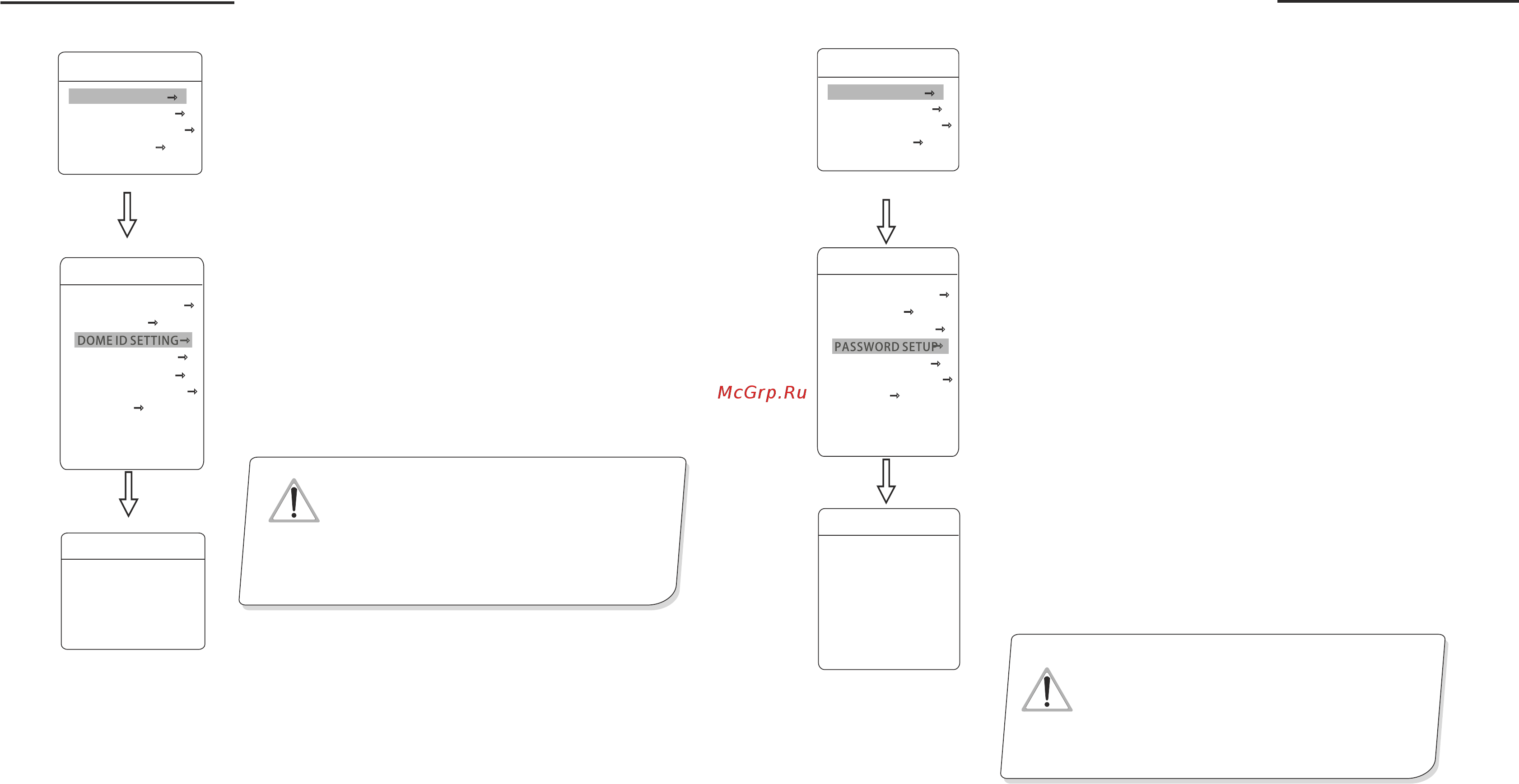

4. 4 Dome ID Setting
NOTICE
S/N:BC35CS010025
CONF:BC35CS010000
DOMEID:
BACK
EXIT
DOME ID SETTING
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
EXIT
SYSTEM SETTING
EDITDOMETITLE
DOMEINFO
DOMEIDSETTING
PASSWORDSETUP
CLOCKSETTING
SYSTEMPARAMETER
DEFAULTS
BACK
EXIT
1 5
The shortcut of Dome ID setting: call 101-116 preset twice within
3 seconds, to set dome ID as 1 to 16. For example, call 103 preset
twice within 3 seconds, then dome ID be setted as 3.
OLDPASSWORD：******
NEWPASSWORD：******
CONFPASSWORD：******
ENABLEPASSWORD：OFF
BACK
EXIT
PASSWORD SETUP
4. 5 Password setup
1. Call 95 preset or call 9 preset twice within 3 seconds and then
input the password to enter the main menu.
2. Operate the joystick up and down and move the cursor to
SYSTEM SETTING , press OPEN to call the submenu.【 】 【 】
3. Operate the joystick up and down and move the cursor to PASS-【
WORD SETUP , press OPEN to call the submenu. Please refer 】 【 】
to the left picture.
4. Operate the joystick up and down and move the cursor to OLD 【
PASSWORD , press OPEN to choose it, operate the joystick 】 【 】
right and left to input the password, up and down to choose the
number you need.
NEW PASSWORD : enter the new password●【 】
CONFIRM PASSWORD : confirm the new password●【 】
ENABLE PASSWORD : set password function ON/OFF●【 】
The password function is effective only "ENABLE PASSWORD"
is set as "ON".
NOTICE
When user forgot the password and can not enter into the
main menu, he can use the super password to enter, which is
"584609", at this time, the password of dome will change
to initial one, which is "000000", and then user may set the
password by himself again.
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
EXIT
SYSTEM SETTING
EDITDOMETITLE
DOMEINFO
DOMEIDSETTING
PASSWORDSETUP
CLOCKSETTING
SYSTEMPARAMETER
DEFAULTS
BACK
EXIT
1 6
