1. Precaution
1
Precaution
Electrical safety
Conform to country and local electrical safety standard when using or installing the product.
Using local special power adapter. This dome uses DC12V/1500mA power supply.
Transportation
The dome should be protected against extremes of pressure, vibration and humidity during
storage and transportation. It should be shipped in parts disassembled as the original packing did.
Damage caused by improper transportation is not within the warranty.
Installation with care
Do not install it in any other orientation. Do not squeezed structure parts, which may cause
mechanical damage. Down cover is a precise optical product. Do not touch it directly to avoid
scratches which can affect image quality.
Requirements to service personnel
All the service work should be done by qualified technicians.
Environmental requirements
Don't place the camera to be shoot by strong light objects
Don't place the camera to be shoot by strong light objects. Don't point the dome to the sun or
other bright objects when in use or not. It may affect image quality.
Operation environment temperature：-10℃～+50℃
Humidity：< 90%
Air pressure：86-106Kpa
Power supply：DC12V/1500MA
2

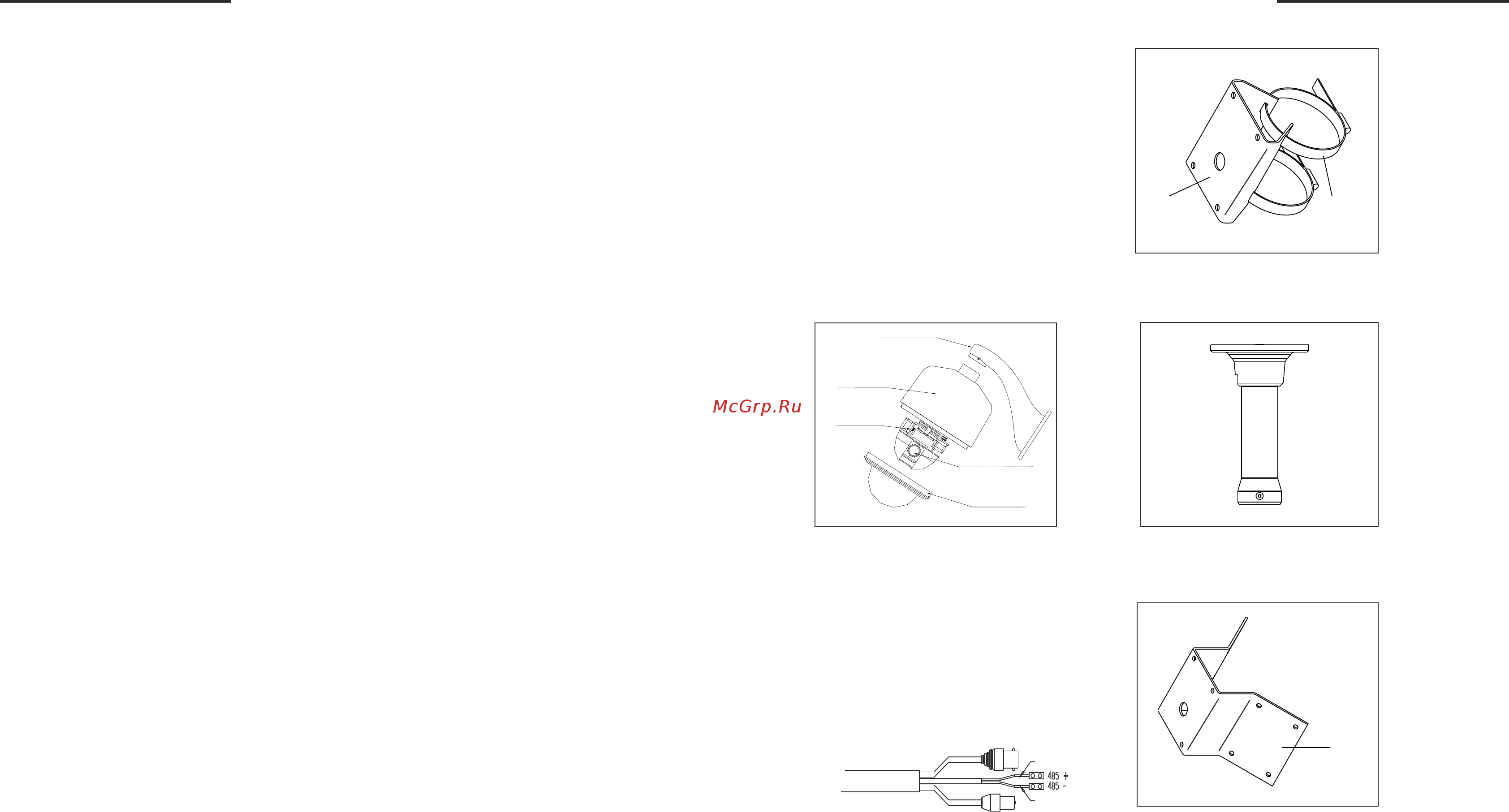

1. 1 Installation Instruction
1. 1. 1 Structure Introduction
Pole Mount
Pendant Mount
Corner Mount
The dome has four Bracket, upper cover, pan/tiltparts.
core and down cover. There are also accessory for the instal
-lation of the dome.
The design of the intelligent dome had considered fully
the situation that you sometimes need to work on high place,
and it makes you quite difficult and dangerous. So the dome
had be disconnected to several parts.
.We can offer many mounting way to choose: Wall
mount, Pendant mount, Pole mount, Corner mount.
Corner Bracket
Pole Bracket
Hoop
Wall Mount
Wall braceket
Upper cover
Down cover
Pan/tilt core
Camera module
The connection board is simple, and the mark of
connection joint is clear.
Installation Instruction
Connect the power line, video cable and
RS485 cable.
Picture 1.1-1
Orange
Yellow
Power connector
Video connector
