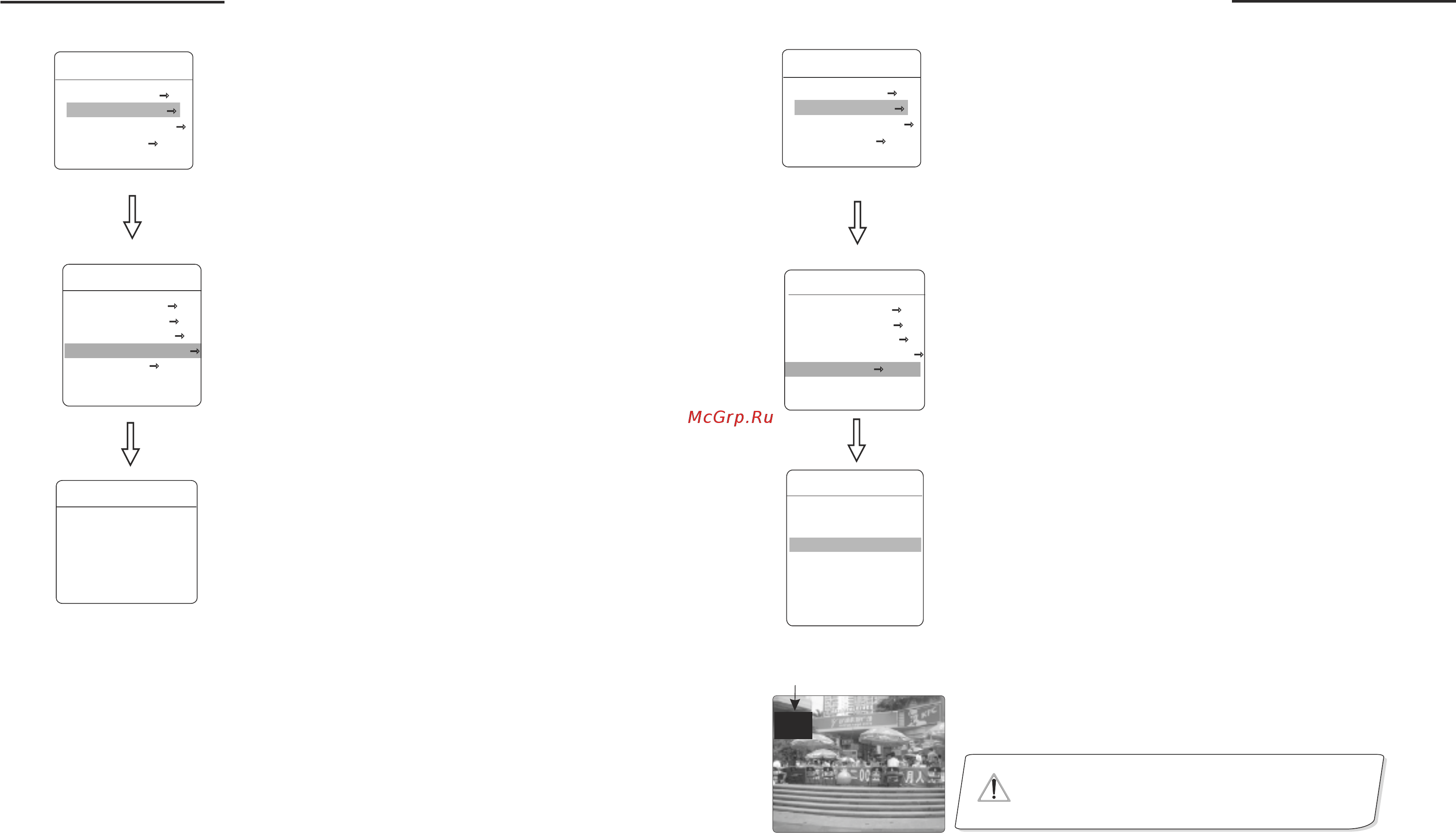

The system enters into the main menu by calling 95 preset or by 1.
calling 9 preset twice within 3 seconds. Move the cursor to
CAMERA SETTING to enter ADVANCE PARAMETERS .【 】 【 】
2.【SHARPNESS】: change the sharpness of the image. The value
is bigger, the image will be clearer.
3.【HI-RESOLUTION】:high resolution is built-in function of
camera. This function is relative with the model of camera.
4. 【MAX GAIN】: it is the max gain of auto gain, and can be set
between 8-28dB. When the light is very dark, the value is smaller,
the noise of image will be less. The value is larger, the noise of image
will be more.
5.【EXPOS COMP】: exposal compensation function.
ADVANCE PARAMETERS
SHARPNESS05
HI-RESOLUTIONON
MAXGAIN28dB
EXPOSCOMPN/A
BACK
EXIT
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
EXIT
CAMERA SETTING
LENSPARAMETERS
AEMODESETTING
AWBMODESETTING
ADVANCEPARAMETERS
PRIVACYMASK
BACK
EXIT
5. 4 Advance parameters
2 9
5. 5 Privacy zone masking
The system enters into the main menu by calling 95 preset or by 1.
calling 9 preset twice within 3 seconds.
Operate joystick to MASK .2. 【PRIVACY 】
choose window number as current ● 【PRIVACY NUMBER】
privacy window, other choices in the menu just aim at current privacy
window
program current window● 【EDIT PRIVACY】
permit/prohibit current privacy ● 【ENABLE PRIVACY】
window, there are two choices: ON---permit current privacy window/
OFF---prohibit current privacy window
clear current privacy window, after ● 【CLEAR PRIVACY】
clearing it, the window will auto- change as OFF.
Program current privacy window: Firstly choose window number, 3.
then do the following operations:
a. Operate joystick, move the cursor to EDIT , press【 PRIVACY】
OPEN to move the image that need privacy window to display 【 】
in the screen.
b Press OPEN , there will be a square displaying in the centre of . 【 】
the screen, operate joystick, and move the square to the central place
that need to conceal.
c. Press OPEN , operate joystick to adjust the size of privacy zone:【 】
joystick to up, the height is increased; joystick to down, the height
is reduced; joystick to right, the width is increased; joystick to left,
the width is reduced.
d. Press OPEN to save the current privacy zone setting, and the 【 】
window will auto-change as ON at the same time.
PRIVACYMASK
PRIVACYNUMBER01
EDITPRIVACY
ENABLEPRIVACYOFF
CLEARPRIVACY
BACK
EXIT
CAMERA SETTING
LENSPARAMETERS
AEMODESETTING
AWBMODESETTING
ADVANCEPARAMETERS
PRIVACYMASK
BACK
EXIT
Privacy function can show someone piece of regional shielding
while protecting. For example, protect the window of bedroom or
ATM of bank. Each dome can set up to 24 privacy windows.
(Masking setting function is relative with the model of camera
module. The masking numbers will be different according to the
different cameras.)
NOTICE
This function is decide by the parameter of built-in camera,
if the camera does not have this function, this option is invalid.
Pr iv ac y zo ne m as ki ng
305 45305 45305 45
01X01X01X
032
032
032
PRESET 07PRESET 07PRESET 07
3 0
