TIME03:20:18
DATE07-10-10
DAYWED
BACK
EXIT
CLOCK SETTING
4. 6 Clock setting
1. Call 95 preset or call 9 preset twice within 3 seconds and then input
the password to enter into the main menu.
2. Operate the joystick up and down and move the cursor to SYSTEM 【
SETTING , press OPEN to call the submenu.】 【 】
3. Operate the joystick up and down and move the cursor to CLOCK 【

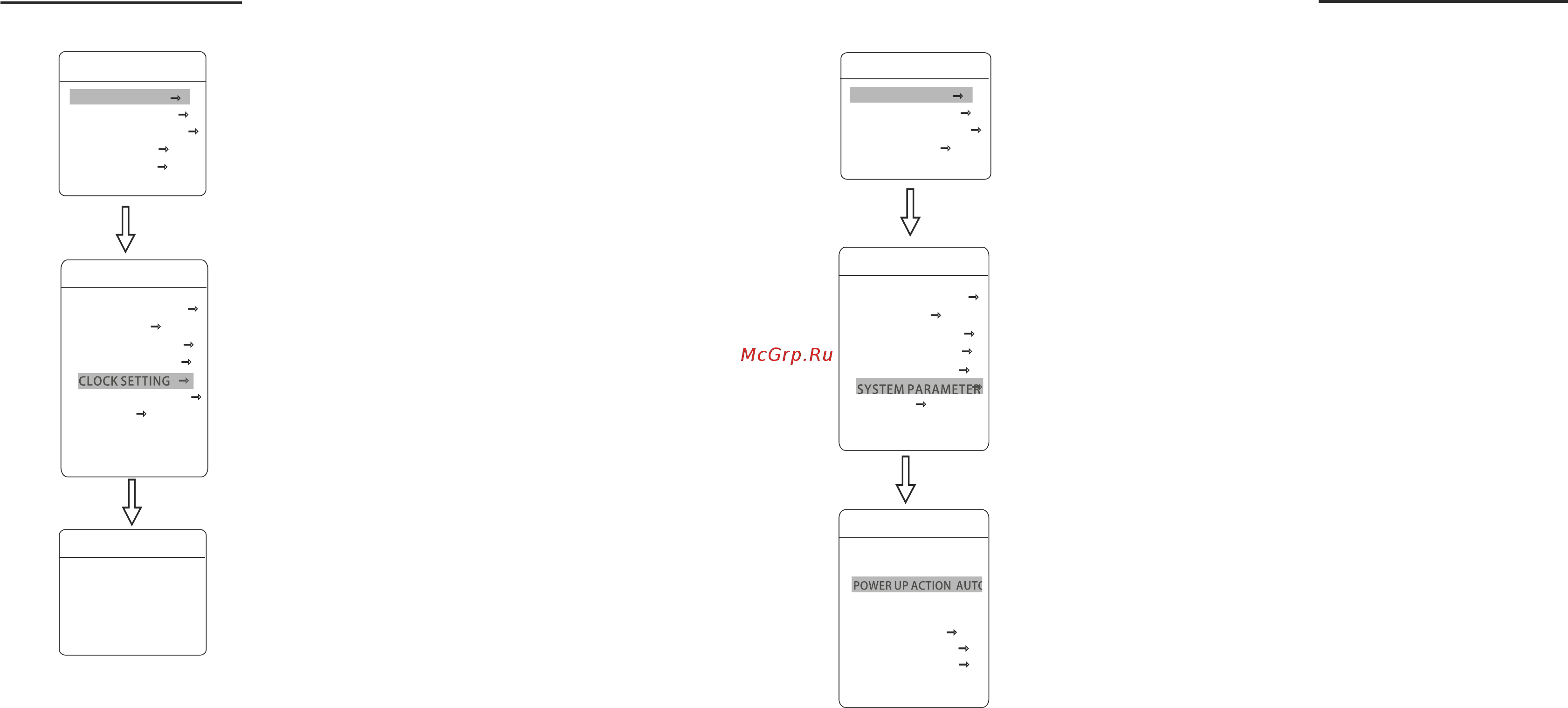

SETTING , press OPEN to call the submenu. Please refer to 】 【 】
the left picture.
4. Operate the joystick up and down and move the cursor to TIME , 【 】
press OPEN to choose it, move the joystick up and down to choose 【 】
the number you need, move the joystick right and left to set hour,
minute, second.
TIME : set hour, minute, second●【 】
DATE : set year, month, date●【 】
DAY : set week●【 】
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
ALARMSSETUP
EXIT
SYSTEM SETTING
EDITDOMETITLE
DOMEINFO
DOMEIDSETTING
PASSWORDSETUP
CLOCKSETTING
SYSTEMPARAMETER
DEFAULTS
BACK
EXIT
1 7
Systematic motion controlling may control a series of canonical
movement of the dome, and plays an important role in controlling
the image of the dome.
. The system enters into the main menu by calling 95 preset or by 1
calling 9 preset twice within 3 seconds.
Operate the joystick up and down and move the cursor to SYST-2. 【
EM SETTING , press OPEN to enter submenu.】 【 】
4. 7 System parameter
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
EXIT
SYSTEM SETTING
EDITDOMELABEL
DOMEINFO
DOMEIDSETTING
PASSWORDSETUP
CLOCKSETTING
SYSTEMPARAMETER
DEFAULTS
BACK
EXIT
4. 7. 1 Power up action
The dome startup to run actions after self-testing, if nobody
intervenes with it , the dome will repeatedly run this action continu-
ously , if default sets as 【NONE】.
Operate joystick, move the cursor to 【POWER UP ACTION】:
press【OPEN】 to jump to the following choice, tilt up/down joystick
to choose power up action , press 【OPEN】 to save. " "
●【NONE】: none action
●【AUTO】: the dome resumes the primary action and
direction before power up.
●【PRESET】: use preset
●【SCAN】: run scan
●【PAT】: run pattern
●【TOUR】: run tour
SYSTEMPARAMETER
FANENABLED045C.
TEMPC/FCENT.
POWERUPACTIONAUTO
EISENABLEDON
PRESETFREEZEON
PAN/TILTSETTING
TIMEACTIONSETUP
PARKACTIONSETUP
BACK
EXIT
SYSTEMPARAMETER
1 8
System setting
System setting
