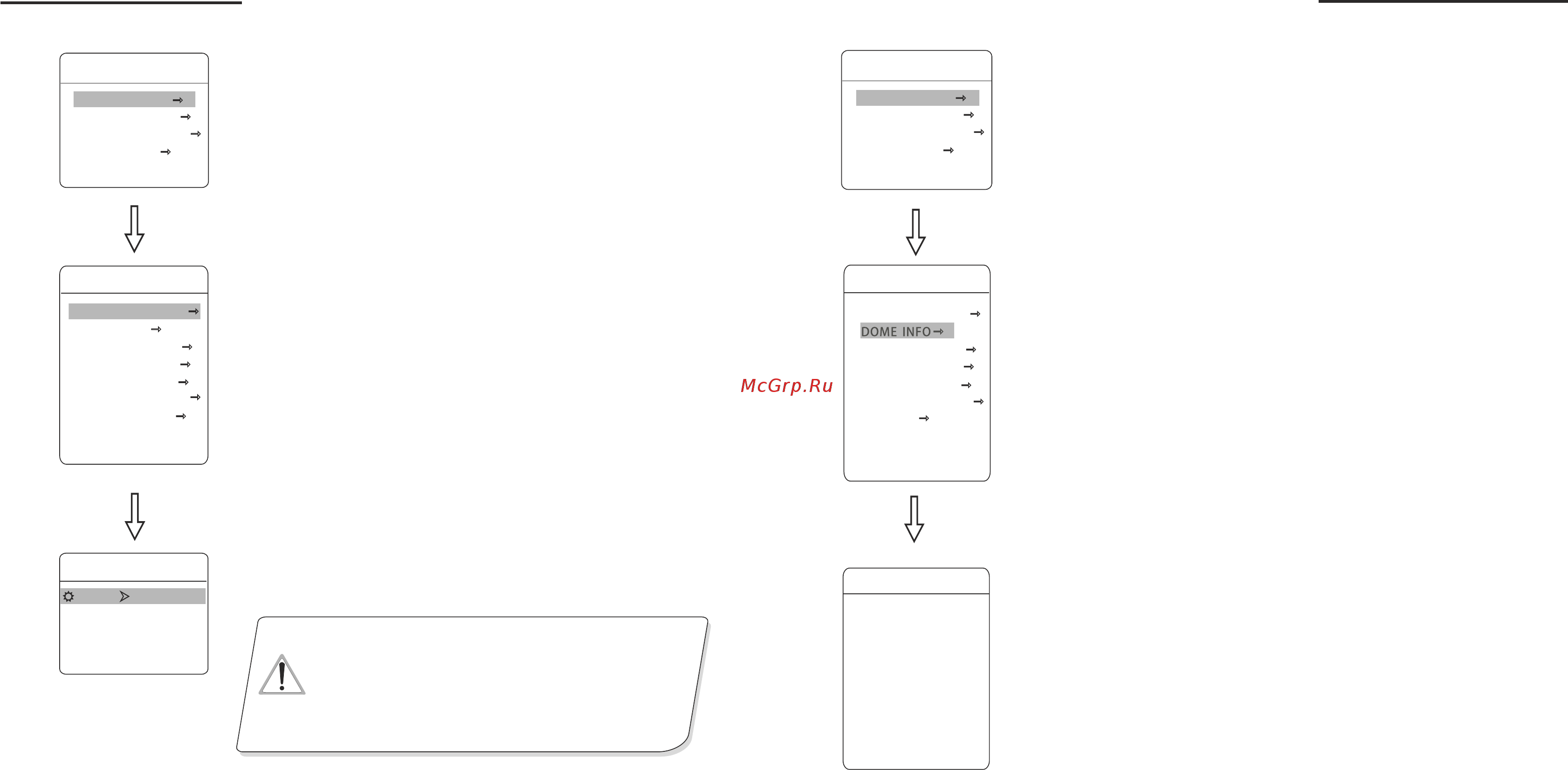

When using a lot of systems of the dome , in order to identify to
each dome, the systems support title setting. The setting ways as
follows:
1. Use 95 preset or transfer 9 preset twice in three seconds to enter
the main menu.
2. Moving joystick up and down to move the cursor to 【SYSTEM
SETTING】press【OPEN】to enter the next menu.
3. Moving joystick up and down to move the cursor to【EDIT DOME
TITLE】, press【OPEN】to enter the title setting menu.
4. Moving joystick up and down to move the cursor to【TITLE】 ，
press【OPEN】to edit current title.
5. When the cursor is twinkling n the first character of the title,
to move joystick t choose character, after editing, pressing【OPEN】
to save.
6. Moving joystick to 【BACK】,press【OPEN】to back to the
former menu.
.
1 3
The label may set 16 characters, and doesn't need editing
characters. Pressing Open continuously to jump over and using 【 】
spacebar to replace the deleted characters. When you finish to edit
character, press Open to enter into the next editing character. 【 】
When you editing the last character, pressing Open to save. 【 】
Press [Close] to exit. Character of label is suitable for choosing
as follows: 0-9、A-Z、:<>-., Space.
Other labels’ input ways are t he same as above.
4. 2 Edit dome title
Notice
SYSTEM SETTING
EDITDOMETITLE
DOMEINFO
DOMEIDSETTING
PASSWORDSETUP
CLOCKSETTING
SYSTEMPARAMETER
DEFAULTS
BACK
EXIT
EDIT DOME TITLE
TITLE：
BACK
EXIT
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
EXIT
System setting
1 4
4. 3 Dome initial information
1. Use 95 preset or transfer 9 preset twice in three seconds to enter
the main menu.
2. to Operate the joystick up and down and move the cursor
SYSTEM SETTING , press to enter submenu.【 】 【OPEN】
3. toOperate the joystick up and down and move the cursor
DOME INFO , press to display initial information 【 】 【OPEN】
as the left picture shows.
Initial information includes S/N of the dome, soft edition,
protocol, dome ID, communication parameter. System setting may
change the numerical value of initial information.
DOME INFO
DOMES/N:
VERSION:
MODEL:
PROTOCOL：FACTORY
DOMEID：001
BAUDRATE：4800bps
BACK
EXIT
SYSTEM SETTING
EDITDOMETITLE
DOMEINFO
DOMEIDSETTING
PASSWORDSETUP
CLOCKSETTING
SYSTEMPARAMETER
DEFAULTS
BACK
EXIT
MAIN MENU
SYSTEMSETTING
CAMERASETTING
FUNCTIONSETTING
DISPLAYSETUP
EXIT
System setting
