11
VZ509E
English
Owner’s manual

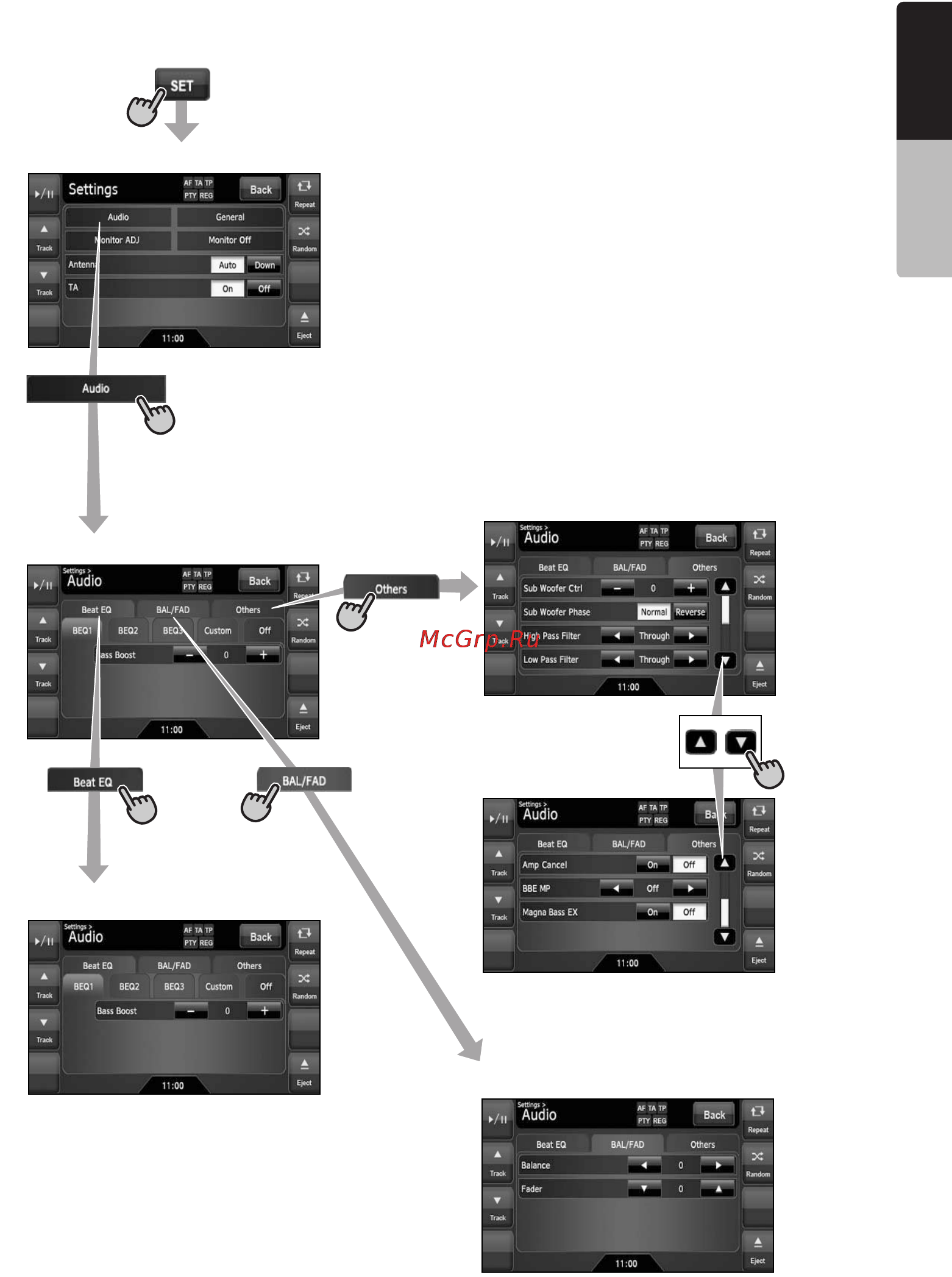

Adjusting the Audio settings
(Settings screen)
(Audio screen)
(Others tab screen)
(Beat EQ tab screen)
(BAL/FAD tab screen)
(Source or Mode screen)
