Clarion VZ509E [59/70] Specifications
![Clarion VZ509E [59/70] Specifications](/views2/1003895/page59/bg3b.png)
57
VZ509E
English
Owner’s manual
FM Tuner
Frequency Range: 87.50 MHz to 108.00 MHz
Usable Sensitivity: 9 dBf
50dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation (1 kHz): 38 dB
Frequency Response (r3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range:
MW: 531 kHz to 1602 kHz
LW: 153 kHz to 279 kHz
Usable Sensitivity:
MW: 29 dBPV
LW: 35 dBPV
DVD Player
System:
Digital Versatile Disc System with CDDA
capable
Usable discs:
DVD video disc, Compact disc
Frequency Response:
20 Hz to 20 kHz (CD) (r1 dB)
Signal to Noise Ratio: 100 dB (1 kHz)
Dynamic Range: 100 dB (1 kHz)
Distortion: 0.006%
USB
Specification: USB 2.0 Full Speed
File system: FAT12/16/32, non-VFAT-compliant
Playable audio format:
MP3 (.mp3): MPEG 1/2 Audio Layer-3
WMA (.wma): Ver. 7/8/9.1/9.2
AAC (.m4a): AAC format encoded by iTunes
and iTunes+ only
Maximum number of folders: 512
Maximum number of files: 255 (for a folder)
Maximum folder hierarchy: 8 levels (including Root)
Maximum power supply: 500 mA
Audio Amplifier
Maximum power output:
200 W (50 W u 4)
Output Power:
4 u 26 W (DIN 45324, +B = 14.4 V)
Speaker impedance: 4 : (4 to 8 : allowable)
Input
Audio input sensitivity:
High: 0.65 V (at 2 V output)
Mid: 1.3 V (at 2 V output)
Low: 2.0 V (at 2 V output)
(input impedance 10 k: or greater)
Video input:
1.0 r0.2 Vp-p (input impedance 75 :)
Video Output
Video output:
1.0 r0.2 Vp-p (output impedance 75 :)
LCD Monitor
Screen Size: 7-inch wide type
152 mm Width u 85 mm Height
Display method:
Transmission type TN liquid crystal display
Drive method: TFT (thin-film transistor)
active matrix driving
Pixels: 336,960 (1440 u 234)
General
Power source voltage:
14.4 V DC (10.8 to 15.6 V allowable)
Ground: Negative
Current consumption: 3.5 A (1 W)
Auto Antenna Rated Current: 500 mA less

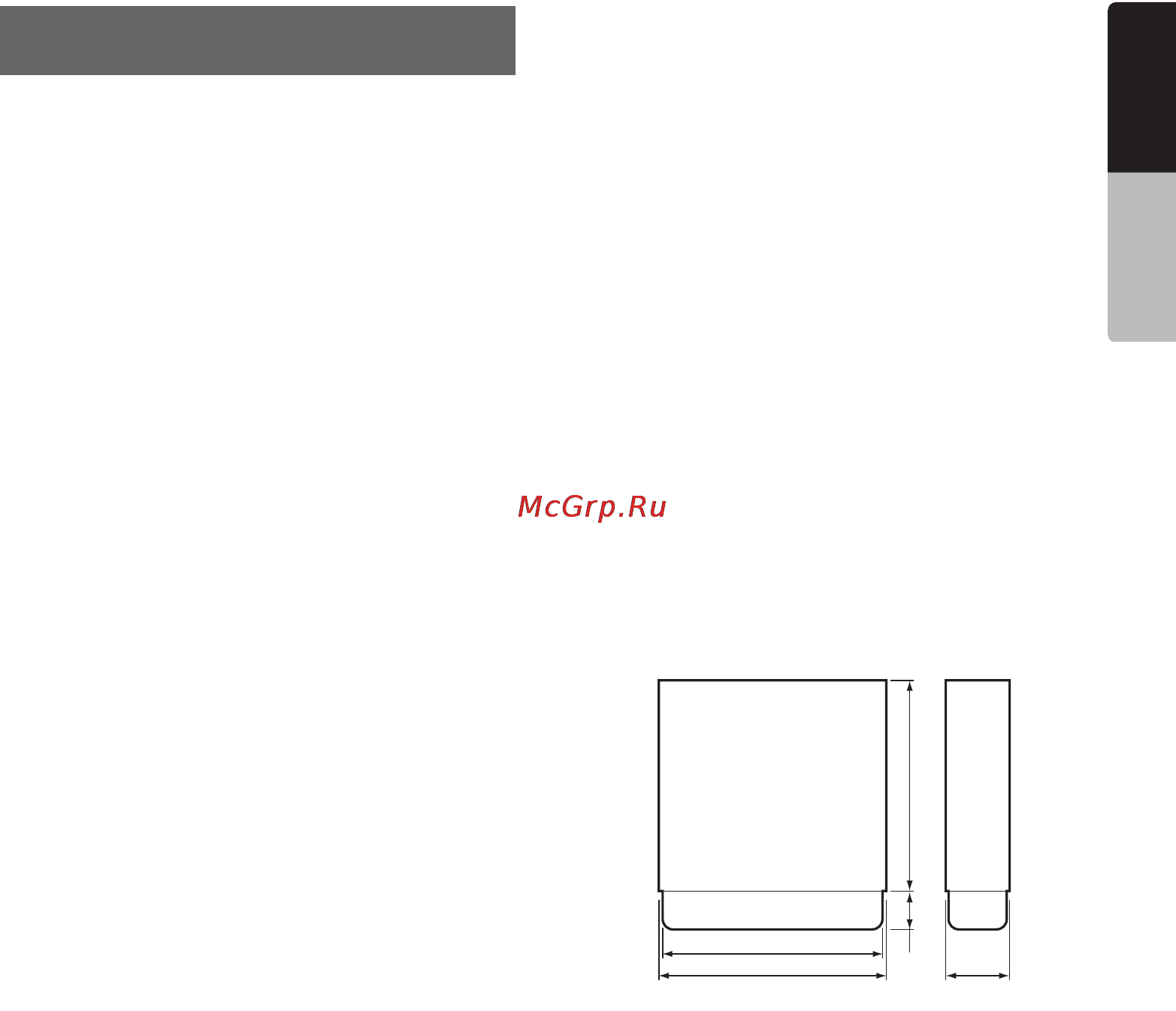

Dimensions of the Main Unit:
178 mm Width u 50 mm Height u 165 mm Depth
Weight of the Main Unit: 2.4 kg
Dimensions of the Remote Control Unit:
43.4 mm Width u 12.5 mm Height u 112.7 mm
Depth
Weight of the Remote Control Unit:
60 g (including battery)
Note:
• Specifications comply with JEITA Standards.
• Specifications and design are subject to change
without notice for further improvement.
10.SPECIFICATIONS
172 mm
178 mm
50 mm
165 mm
43 mm
