19
VZ509E
English
Owner’s manual
When the liquid crystal panel is
open

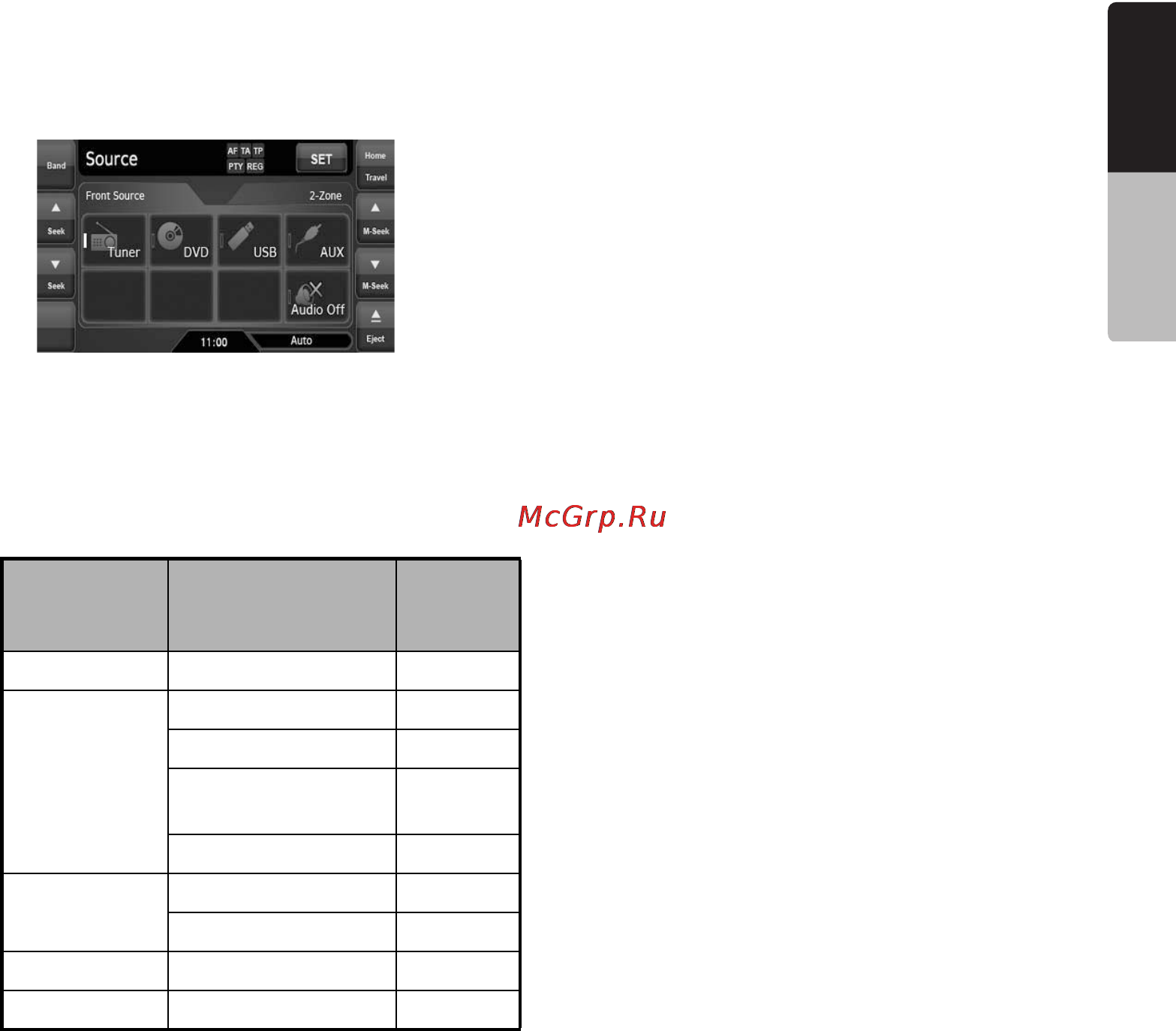

1. Press the [SRC] button to display the Source
screen.
2. Touch the desired Source key you wish to
change to.
The system is switched to the corresponding
source media mode.
Available media sources
*1:The source media mode to be selected differs
depending on the data format of the disc set
in the DVD player. When no disc is set, “No
Disc” will be displayed.
*2:The source media mode to be selected differs
depending on the type of the USB media
device connected. When no USB media
device is connected, “No Media” will be
displayed.
*3:This key is displayed only when the optional
navigation system is connected.
Note:
• When the USB mode is selected, video images
input from the AUX1 terminal will be output to the
rear monitor. This is normal.
Source
mode
Corresponding
source media
mode
Refer to
Tuner mode Tuner mode page 21
DVD mode*
1
DVD Video mode page 25
CDDA mode page 32
MP3/WMA/AAC
mode
page 33
DivX mode page 36
USB mode*
2
iPod mode page 39
USB Memory mode page 43
AUX mode AUX mode page 45
Navi mode*
3
Navi mode page 44
