6
VZ509E
English
Owner’s manual
• BBE MP (Minimized Polynomial Non-Linear
Saturation) Process improves digitally
compressed sound, such as MP3, by restoring
and enhancing the harmonics lost through
compression. BBE MP works by regenerating
harmonics from the source material, effectively
recovering warmth, details and nuance.
• Manufactured under license from BBE Sound,
Inc.
• Licensed by BBE Sound, Inc. under one or
more of the following US patents: 5510752,
5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc.
Functions of Buttons
Note:
• Be sure to read this section while referring to the
front diagram.
Sensor
• Receiver for the remote control unit (operating
range: 30° in all directions).
[VOL –], [VOL +] buttons
• Use these buttons to increase/decrease the
volume.
[SRC] button
• When the liquid crystal panel is closed, press
this button to change to the next source mode
such as Tuner mode.
• When the liquid crystal panel is open, press
this button to display/hide the Source screen to
switch the source mode.
• When the RDS interrupts are arisen, keep
pressing this button more than 1 second to
cancel these interrupts.
[OPEN/CLOSE] button
• Use this button to open/close the liquid crystal
panel.
• Keep pressing this button more than 2 seconds
so that the liquid crystal panel is positioned
horizontally when the liquid crystal panel is
open (Air Conditioner Operation mode).
• When the liquid crystal panel is closed, keep
pressing this button more than 5 seconds to
perform the panel calibration function to
memorize the maximum angle of the liquid
crystal panel.
Blink LED
• When the Blink LED function is set to “On” from
the System tab menu on the General screen,
blinks when the ACC power is turned off.

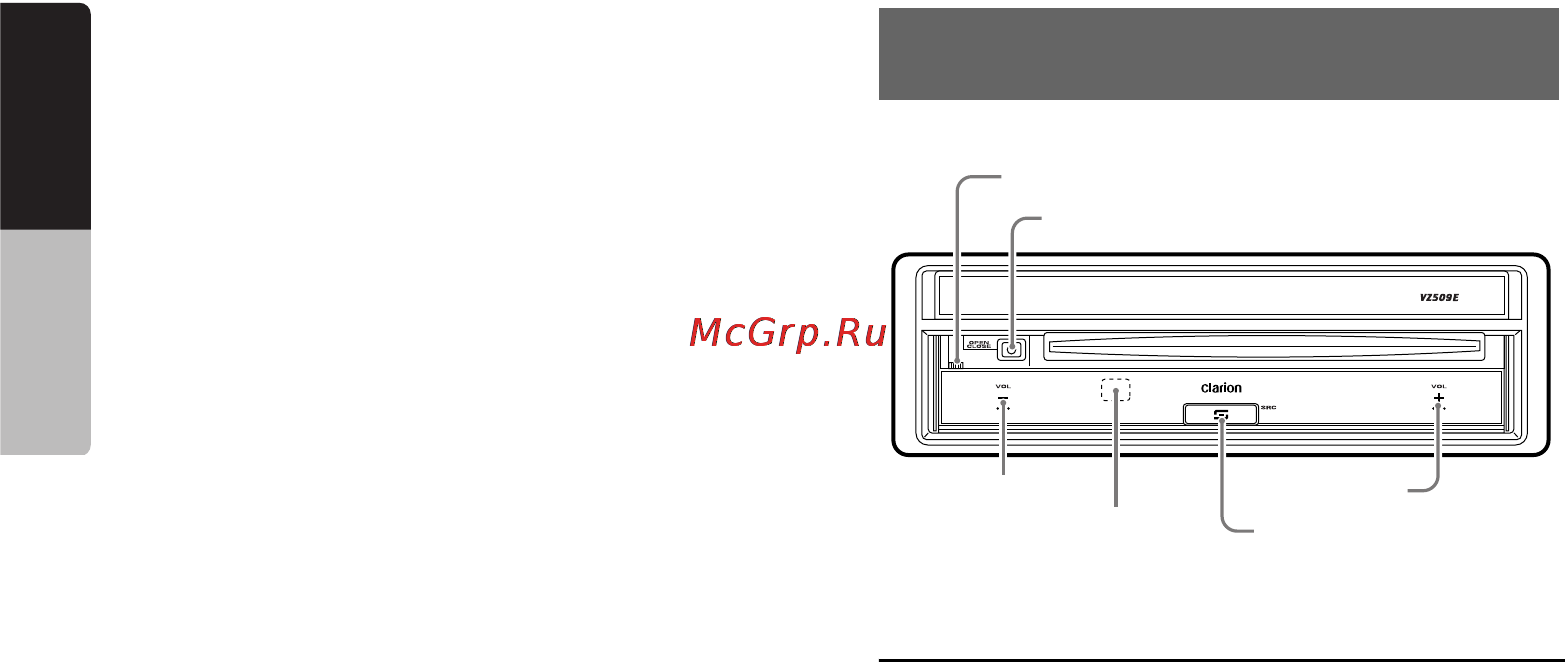

3. CONTROLS
Blink LED
[OPEN/CLOSE]
[VOL –]
[VOL +]
[SRC]
Sensor
