Airwell K 45 OG [11/16] Dimensions continued

Page 11

4-pipe units

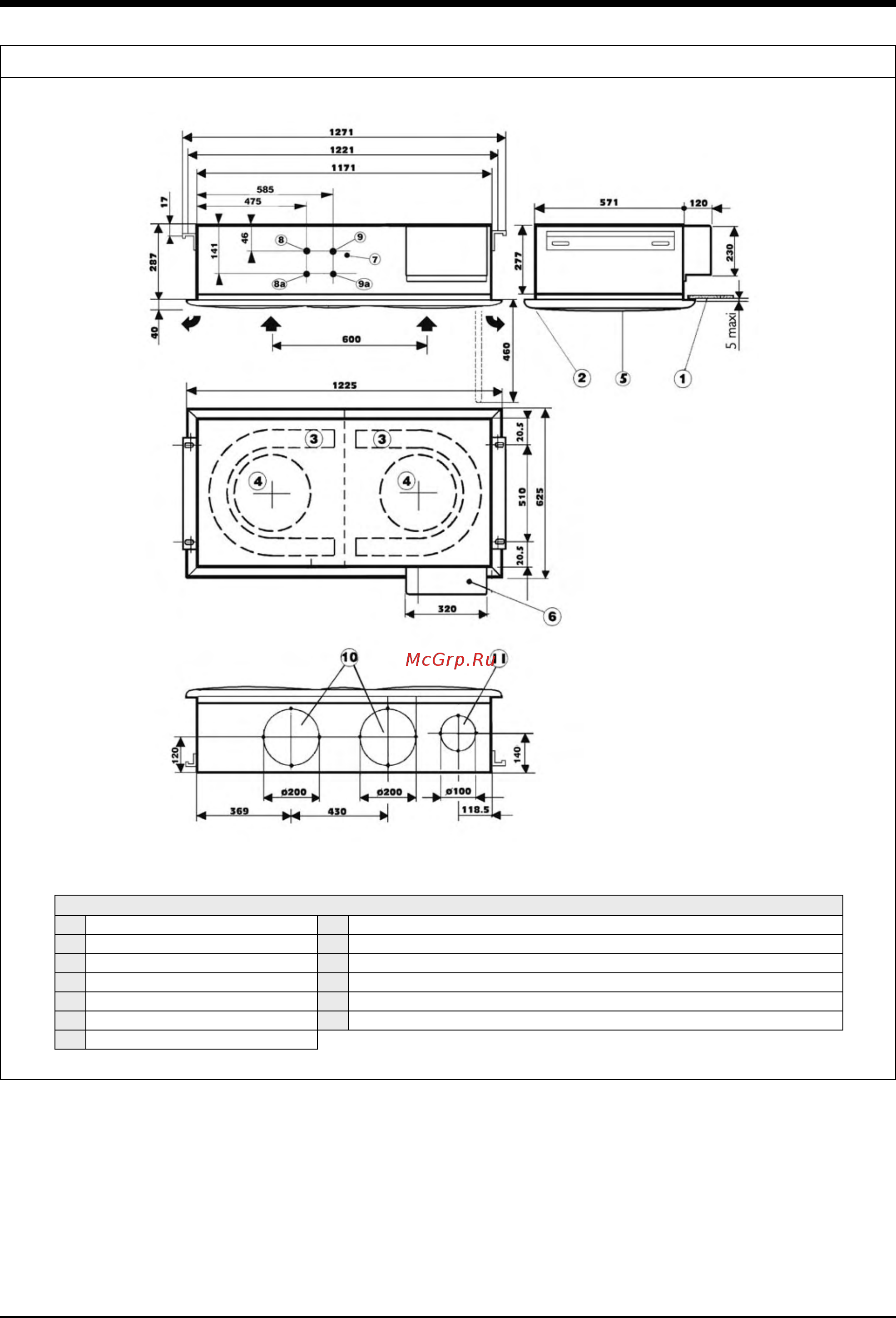

DESCRIPTION

1 False ceiling 8 Coupling of hot water outlet (G1/2")

2 T-shaped rod (false ceiling) 8a Coupling of hot water inlet (G1/2")

3 Heat exchanger 9 Coupling of chilled water outlet (G1")

4 Fan 9a Coupling of chilled water inlet (G1")

5 Suction grille 10 Port to distribute air through a duct into a neighbouring room (pre-punched)

6 Electric box (removable) 11 Port to suction fresh air (pre-punched)

7 Draining of condensates (Ø1/2")

Dimensions (continued)
