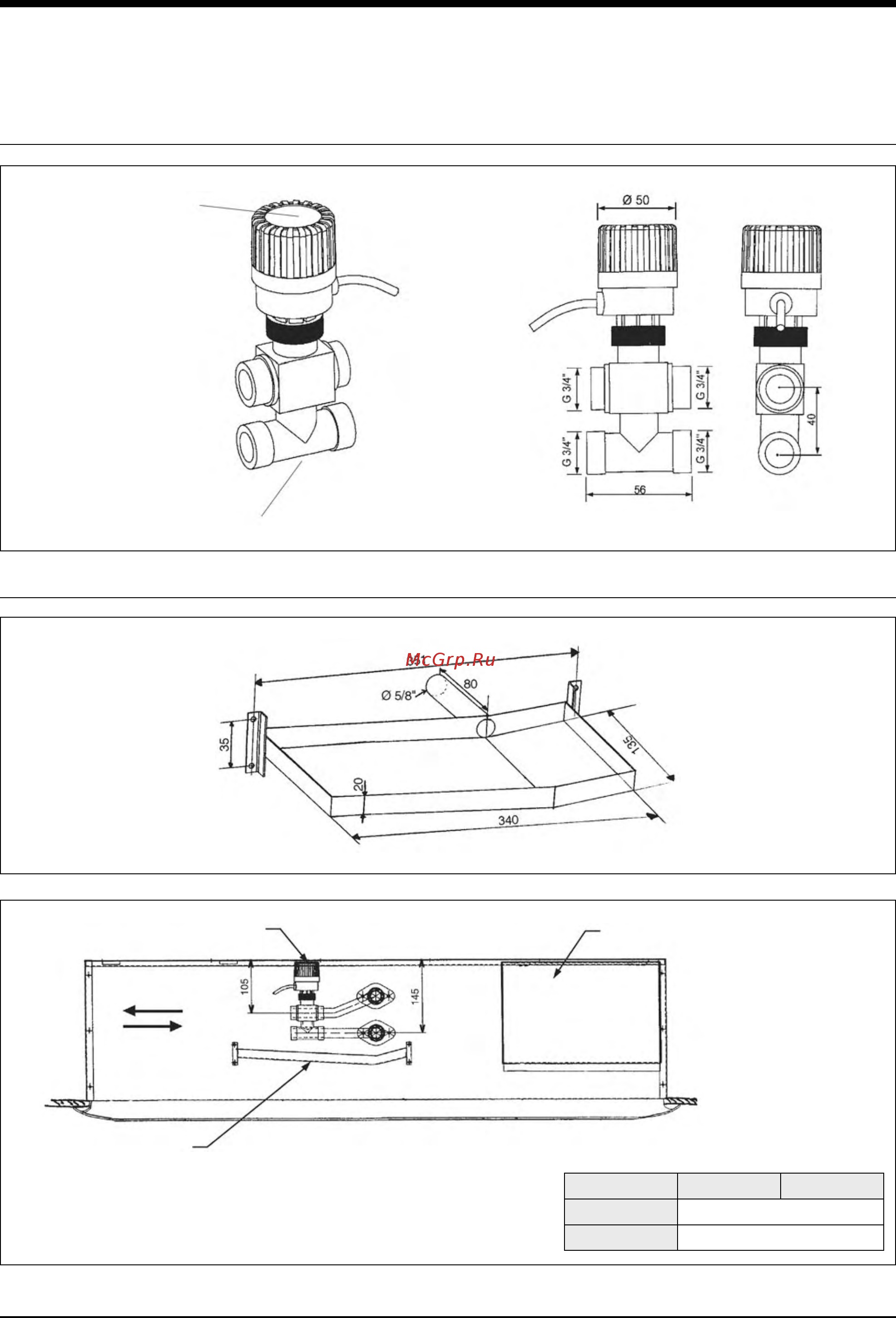

Page 12
3-Way Valve with By-pass
Motorized 3-way valve with by-pass
Condensing tray for 3-way valve
Electric servomotor
Valve body
Motorized 3-way valve with by-pass
Condensing tray
Electric box
WATER OUTLET
WATER INLET
Models 30 45
Water inlet
G 3/4" Male
Water outlet
G 3/4" Male
DIAMETER OF CONNECTION
The kit three-way valve with by-pass allows to control "all or
nothing" of a cassette when operating chilled water mode or hot
water mode.
This kit includes a three-way valve with by-pass controlled by an
electric servomotor.
