Airwell RT4D 180 [41/56] Outdoor fan curves continued
![Airwell RT4D 60 [41/56] Outdoor fan curves continued](/views2/1408288/page41/bg29.png)
Page 41

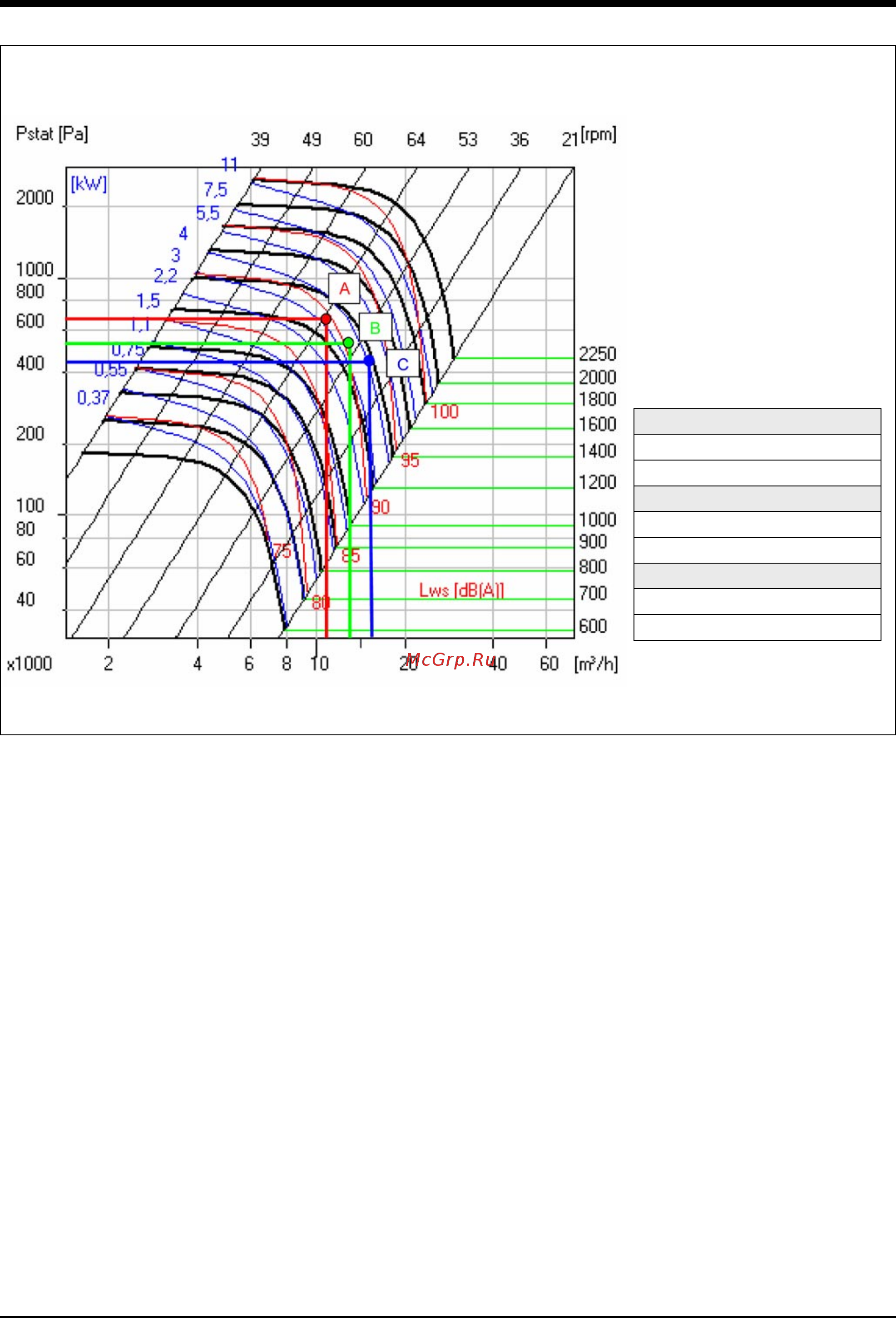

Outdoor Fan Curves (continued)
RT4D 240, 280 and 380
Size 240
4 x D.630 plugfan
Working point : 11000 m
3
/h / Pt = 630 Pa (point A)
Size 280
4 x D.630 plugfan
Working point : 14500 m
3
/h / Pt = 540 Pa (point B)
Size 380
4 x D.630 plugfan
Working point : 16200 m
3
/h / Pt = 420 Pa (point C)
