![Airwell RoofT@ir 40 [12/68] Roof ir](/views2/1408311/page12/bgc.png)
10
The frame of the curb receiving the unit must be reveled. The unit must slot perfectly into the roof curb.

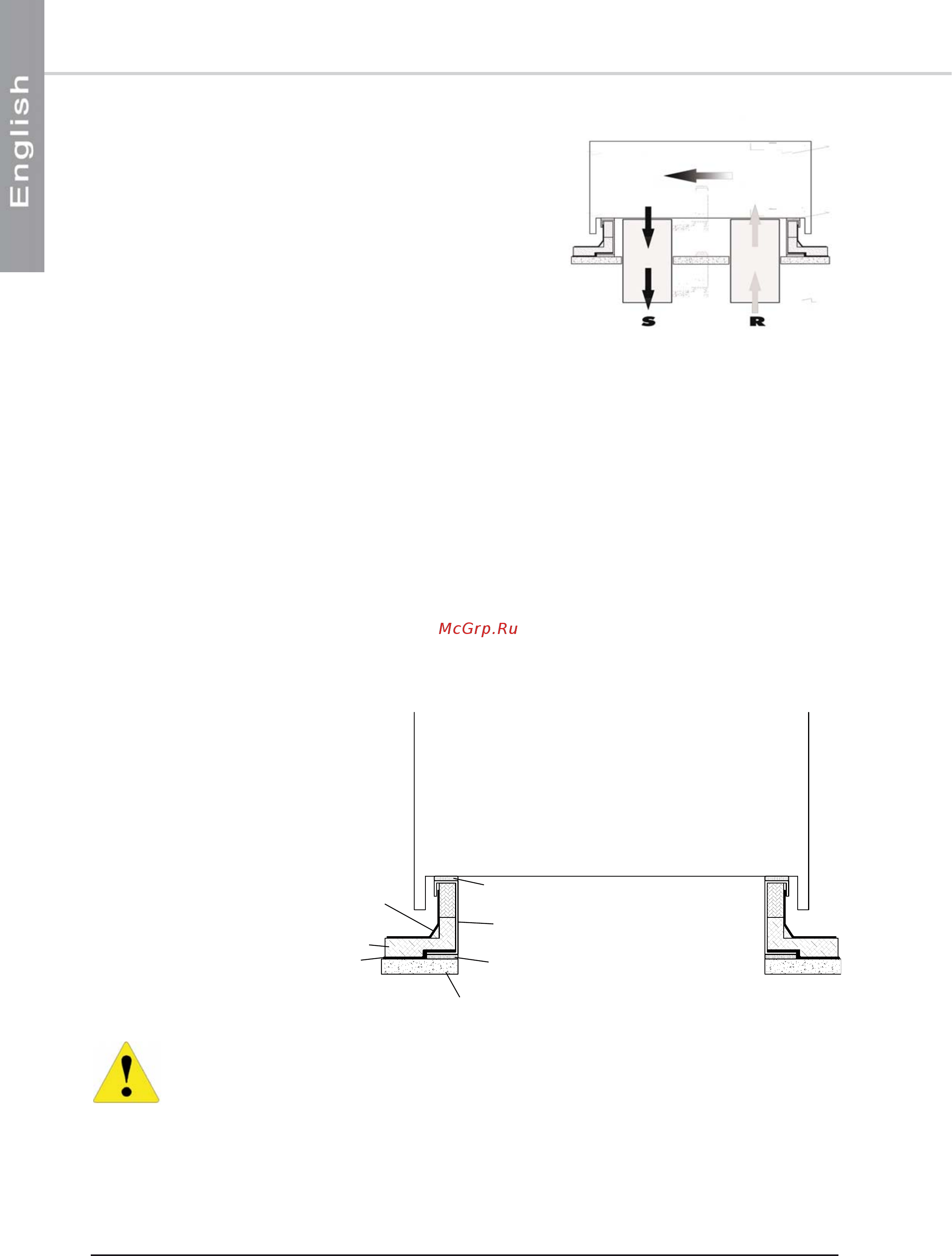

POSITIONING OF THE ROOF CURB ON THE ROOF (CUTAWAY VIEW)
Roof curb1.
Rubber seal (supplied with the roof 2.
curb)
Hard vibration-absorbent rubber 3.
(option)
Concrete beam or slab4.
Vapour sealing film (supplied by 5.
the roofer)
Roof insulation (supplied by the 6.
roofer)
Sealant roofskin (supplied by the 7.
roofer)
In order to break a thermal bridge between the roof curb and the unit, a seal (N°2) (50 X 5 mm) is
supplied with the roof curb. This seal must be glued by the installer on the roof curb to avoid metal
to metal contact and reduce eventual vibration transfer.
Once installed and fastened to the roof structure, the outside wall of the curb must be fully integrated in the roof
insulation.
To insulate the Roof curb before posing to ROOFT@IR it.
The minimum insulation thickness required is 25 mm and the surface must be protected by a bituminous coating
(or any other equivalent material) to ensure a perfect weatherproof seal.
ROOF@IR
1
2
3
4
5
6
7
ROOF CURB
The main purpose of the roof curb is to provide weatherproof passage,
supply and return air down to the building from the ROOFT@IR.
In this way, all connections (air, electricity) to the building are not free
above the roof. The curb provides a perfect roofing thermal insulation
and weight distribution between the ROOFT@IR and the building.
The roof curb should be used for a downward configuration at supply
and return air. The roof curb guarantees the perfect weathertight sealing
between the building structure and the appliance.
Two versions are available:
knocked-down and non-adjustable version
¢
This fixed roof curb, as an option, is supplied in kit form. Ask your sales representative.
An adjustable version is available assembled at the factory with a return air grille (see below).
¢
SEE APPENDIX
ROOF CURB DIMENSIONS
