APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO

F-F

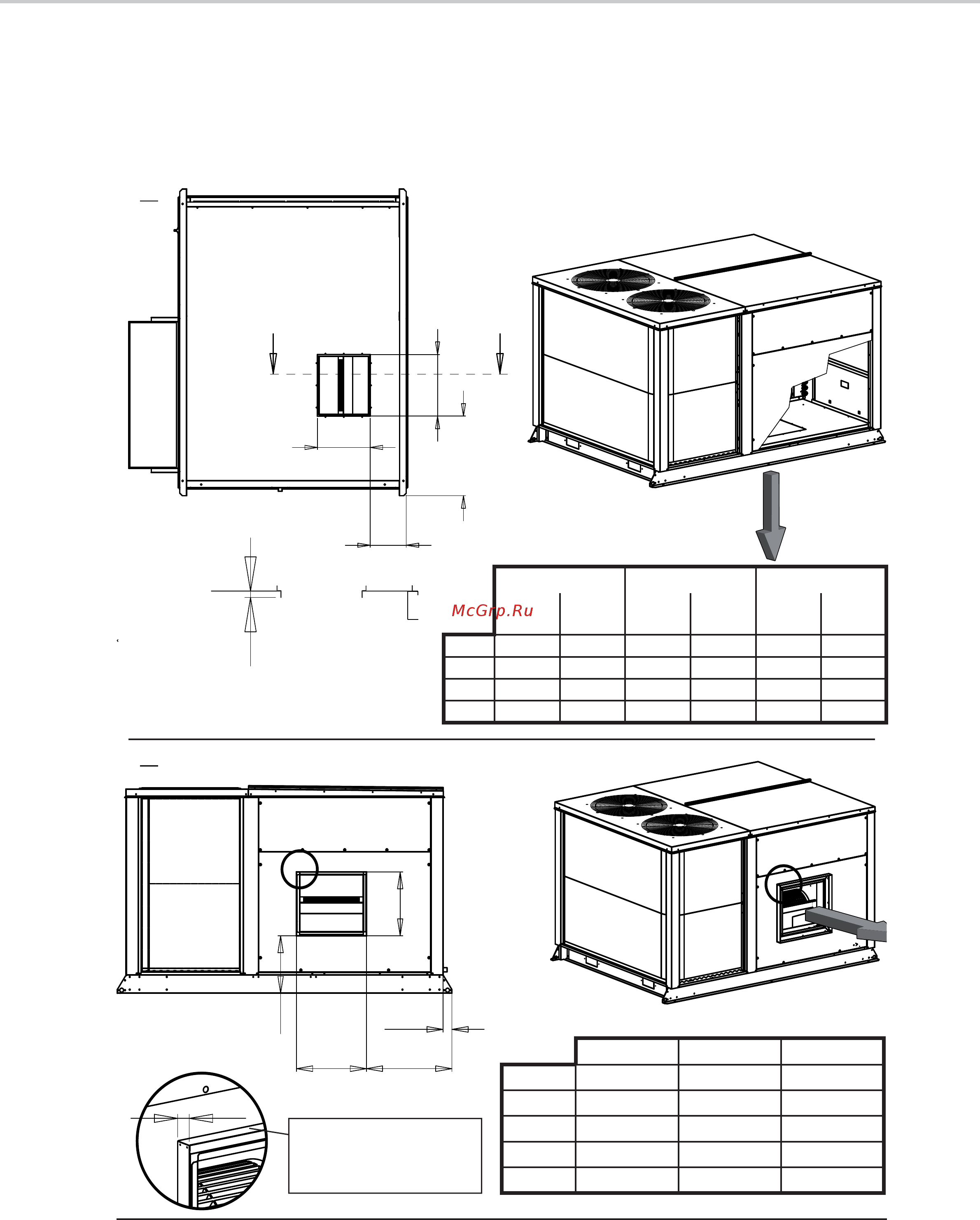

DUCT OUTLET DIMENSIONS

DIMENSIONS DEPART DE GAINES

ABMESSUNGEN DER KANALABGÄNGE

DIMENSIONI TELLE USCITE DI CONDOTTA

DIMENSIONES DE LAS SALIDAS DE CONDUCTOS

40-50 60-70 80-100-110

Electric

heat

Electric

heat

Electric

heat

A 645.5 437 737 409 738 409

B 295 249.5 325 324 328 324

C 497 793 574 1030.5 641 1030.5

D 430 413 574 574 641 574

40-50 60-70 80-100-110

A 593.5 658 660

B 365 391.5 414.5

C 601 734 803

D 534 734 803

E 65.5 73.5 73.5

DELIVERED NOT INSTALLED

LIVRE NON INSTALLE

GELIEFERT NICHT INSTALLIERT

CONSEGNATO NON INSTALLATO

SUMINISTRADO NO INSTALADO
