Airedale TurboChill TTC1 [14/28] Turbochill chillers

TURBOCHILL Chillers

Chillers

Installation Manual : 6703052 05/2008

Installation Data

• Employ lifting specialists

• Local codes and regulations relating to the lifting of this type of equipment should

be observed

• Use the appropriate spreader bars/lifting slings (provided by others) with the eye

bolts/lugs provided

• Attach individual lifting chains to each of the lifting eye bolts/lifting lugs provided;

each individual chain must be capable of lifting the whole unit

UNIT LIFTING

• Lifting eye bolt/lug dimension: 40mm

Do not use 1 chain between 2 lifting points to avoid load shift.

IMPORTANT

Only use lifting points provided.

Chains/slings MUST NOT interfere with the casing or fan assembly to

avoid damage.

Lift the unit slowly and evenly.

If the unit is dropped, it should immediately be checked for damage and reported

to Airedale.

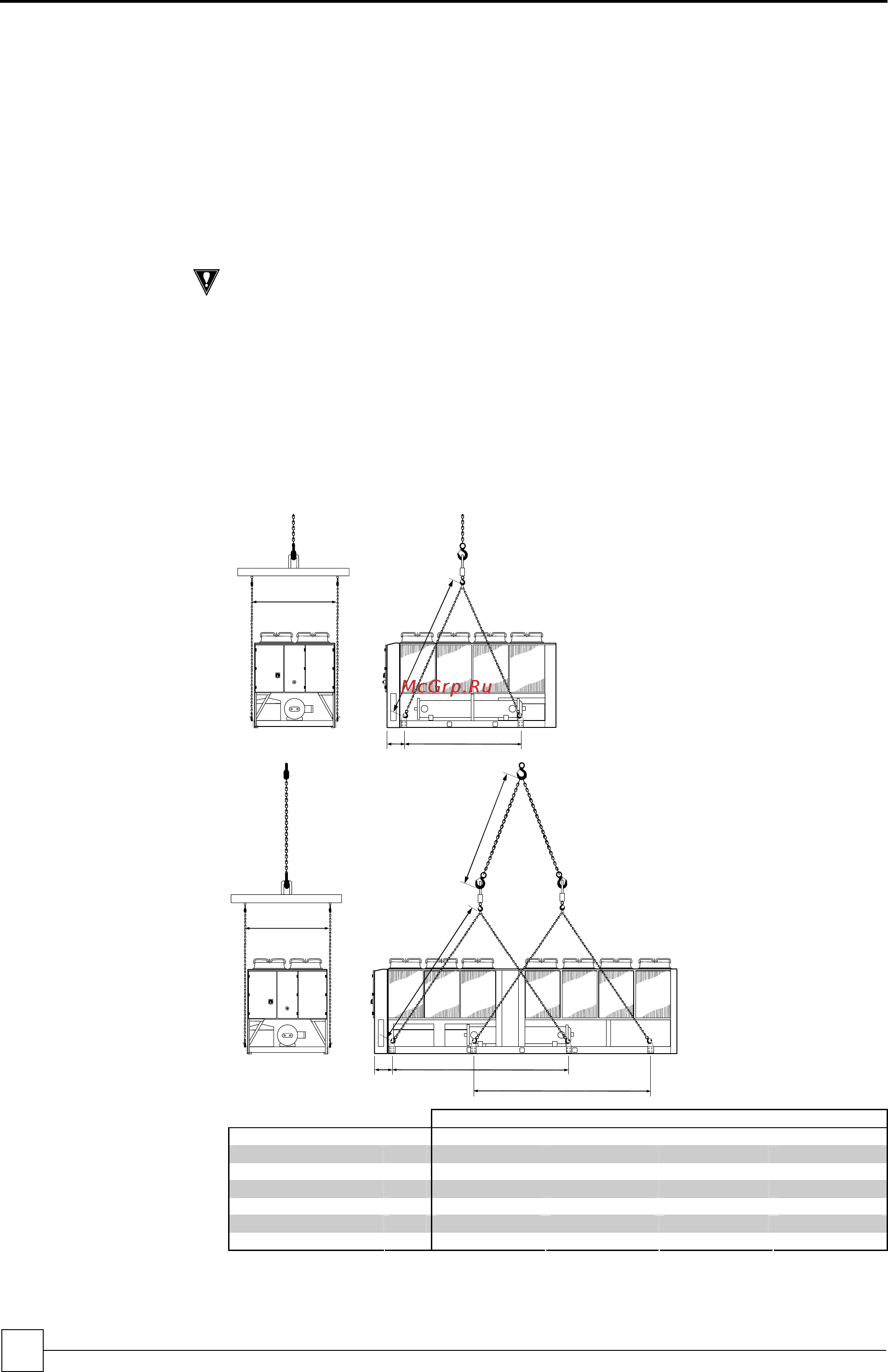

LIFTING DIMENSIONS

8 - 10 Fan

2300

12 - 20 Fan

2300

A1 (Min) A2 (Min) B C

TCC1xxx08Xxx mm 4000 N/A 520 3200

TCC1xxx10Xxx mm 4000 N/A 846 3500

TCC1xxx12Xxx mm 4000 5000 520 4000

TCC1xxx14Xxx mm 5000 5000 520 4650

TCC1xxx16Xxx mm 5000 5000 520 5000

TCC1xxx18Xxx mm 6000 5000 520 5650

TCC1xxx20Xxx mm 7000 5000 520 6650
