Installation Manual : 6703052 05/2008
Chillers
23
Chillers
TURBOCHILL
Installation Data

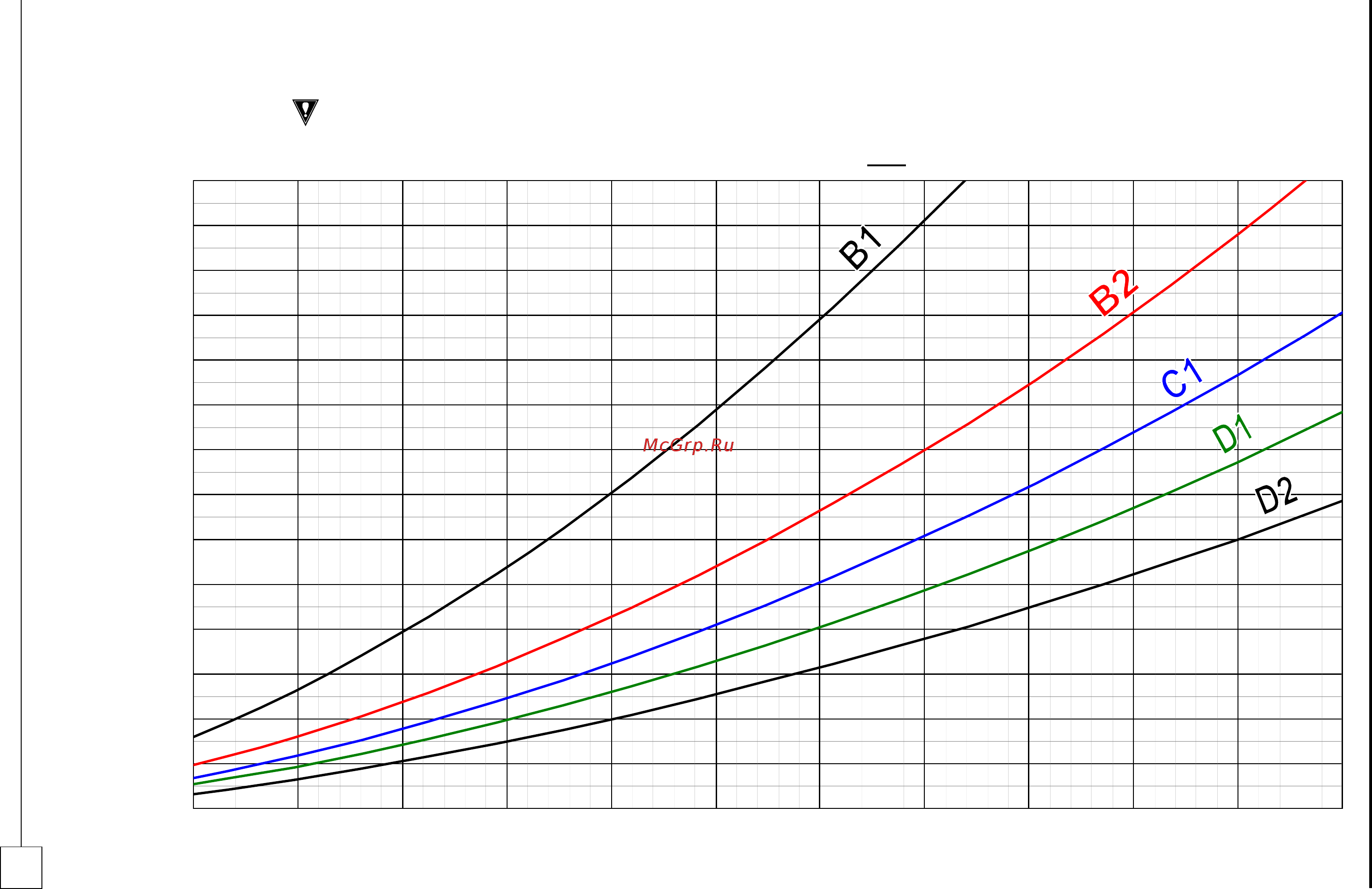

WATERSIDE PRESSURE DROP (KPA)
CAUTION
Full design water flow MUST be maintained at all times. Variable water volume is NOT recommended and will
invalidate warranty.
Refer to the unit nomenclature to identify the Evaporator Code TTC1x”XX”
xxXxx.
140
130
120
110
100
90
80
70
60
50
40
30
20
Waterside Pressure Drop (kPa)
10
0
15
20
25
30
35
40
45
50
55
60
65
70
Waterflow (l/s)
