Airedale TurboChill TTC1 [16/28] Mm ø mounting holes

TURBOCHILL

Chillers

Installation Manual : 6703052 05/2008

Chillers

Installation Data

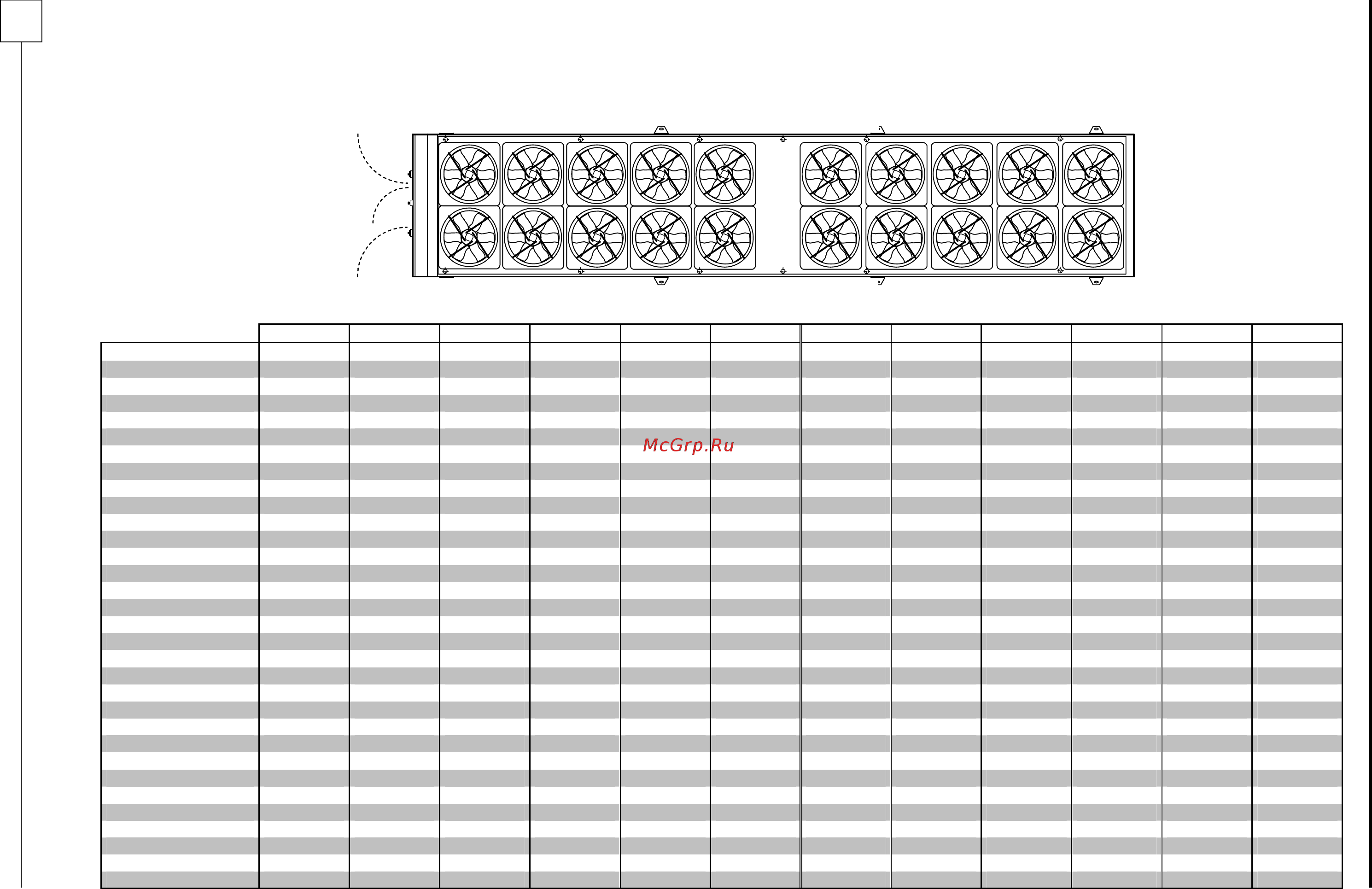

ANTI VIBRATION MOUNTING (OPTIONAL) - ALLOCATION

L1 L2 L3 L4

R1 R2 R3 R4

L5 L6

R5 R6

20mm Ø Mounting Holes

L1 L2 L3 L4 L5 L6 R1 R2 R3 R4 R5 R6

TTC12B108Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN ORANGE ORANGE BLACK - -

TTC12B110Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN ORANGE PLAIN ORANGE - -

TTC12B112Xxx ORANGE ORANGE ORANGE PLAIN RED - ORANGE ORANGE ORANGE ORANGE RED -

TTC12B114Xxx ORANGE PLAIN ORANGE PLAIN BLACK - ORANGE ORANGE ORANGE ORANGE BLACK -

TTC12B116Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN ORANGE ORANGE PLAIN BLACK -

TTC12B118Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN PLAIN ORANGE PLAIN BLACK -

TTC12B120Xxx ORANGE BLACK PLAIN ORANGE PLAIN BLACK ORANGE BLACK ORANGE ORANGE ORANGE BLACK

TTC12B208Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN ORANGE ORANGE BLACK - -

TTC12B210Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN ORANGE PLAIN ORANGE - -

TTC12B212Xxx ORANGE ORANGE ORANGE PLAIN RED - ORANGE ORANGE ORANGE ORANGE RED -

TTC12B214Xxx ORANGE PLAIN ORANGE PLAIN BLACK - ORANGE ORANGE ORANGE ORANGE BLACK -

TTC12B216Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN ORANGE ORANGE PLAIN BLACK -

TTC12B218Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN PLAIN ORANGE PLAIN BLACK -

TTC12B220Xxx ORANGE BLACK PLAIN ORANGE PLAIN BLACK ORANGE BLACK ORANGE ORANGE ORANGE BLACK

TTC12C110Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN PLAIN PLAIN ORANGE - -

TTC12C112Xxx ORANGE ORANGE ORANGE PLAIN RED - ORANGE ORANGE ORANGE ORANGE RED -

TTC12C114Xxx ORANGE PLAIN PLAIN PLAIN BLACK - ORANGE ORANGE ORANGE ORANGE BLACK -

TTC12C116Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN PLAIN ORANGE PLAIN BLACK -

TTC12C118Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN PLAIN PLAIN PLAIN BLACK -

TTC12C120Xxx ORANGE BLACK PLAIN PLAIN PLAIN BLACK ORANGE BLACK ORANGE ORANGE ORANGE BLACK

TTC12D110Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN PLAIN PLAIN ORANGE - -

TTC12D112Xxx ORANGE PLAIN ORANGE PLAIN RED - ORANGE ORANGE ORANGE ORANGE RED -

TTC12D114Xxx ORANGE PLAIN PLAIN PLAIN BLACK - ORANGE ORANGE ORANGE ORANGE BLACK -

TTC12D116Xxx ORANGE PLAIN PLAIN PLAIN BLACK - ORANGE PLAIN ORANGE PLAIN BLACK -

TTC12D118Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN PLAIN PLAIN PLAIN BLACK -

TTC12D120Xxx ORANGE BLACK PLAIN PLAIN PLAIN BLACK ORANGE BLACK PLAIN ORANGE PLAIN BLACK

TTC12D210Xxx PLAIN PLAIN PLAIN ORANGE - - PLAIN PLAIN PLAIN ORANGE - -

TTC12D212Xxx ORANGE ORANGE ORANGE PLAIN RED - ORANGE ORANGE ORANGE ORANGE RED -

TTC12D214Xxx ORANGE PLAIN PLAIN PLAIN BLACK - ORANGE ORANGE ORANGE ORANGE BLACK -

TTC12D216Xxx ORANGE PLAIN PLAIN PLAIN BLACK - ORANGE PLAIN ORANGE PLAIN BLACK -

TTC12D218Xxx PLAIN PLAIN PLAIN PLAIN BLACK - PLAIN PLAIN PLAIN PLAIN BLACK -

TTC12D220Xxx ORANGE BLACK PLAIN PLAIN PLAIN BLACK ORANGE BLACK ORANGE ORANGE ORANGE BLACK
