Installation Data

Chilled water pipework and ancillary components must be installed in accordance with:

• National and Local Water supply company standards

• The manufacturer's instructions are followed when fitting ancillary components

• The system liquid is treated to prevent corrosion and algae forming

• In ambients of 0°C and below, where static water can be expected, or when water

supply temperatures of +5°C or below is required, the necessary concentration of

Glycol or use of an electrical trace heater must be included

WATER SYSTEM

• The schematic is referred to as a guide to ancillary recommendations

CAUTION

The unit water connections are NOT designed to support external pipework,

pipework MUST be supported separately.

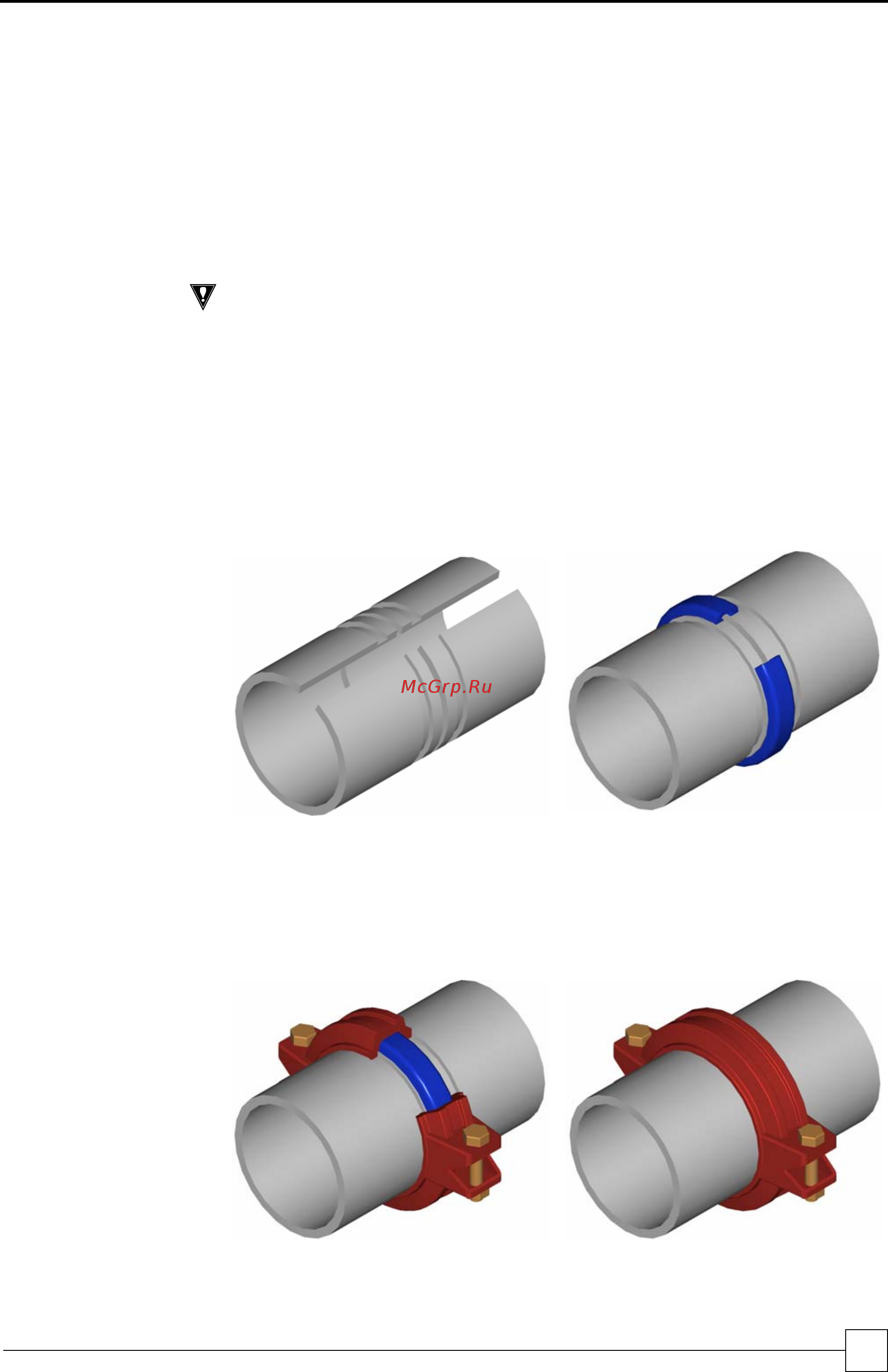

1 Place Grooved Ends Together 2 Locate Rubber Gasket

• Note that an expansion gap of 5mm is

shown here

• The gasket should be checked for

compatability and damage prior

to installation

• A thin coat of sealing lubricant should

be applied to both the inside and

outside mating surfaces

• Slip the gasket fully onto one of the

pipe ends, align the second pipe and

slide the gasket into place

3 Place Clamp over Gasket 4 Secure Clamp

• Wrap the 2-halves of the clamp over

the gasket

• Ensure the gasket fits snugly within the

grooved recess within the inside of the

clamp and that the clamp

mates correctly

• Tightend the bolts incrementally and

evenly at both sides until a leak free

seal is formed

• The gasket should not be visible

beneath the clamp when the bolts are

properly tightened

GROOVED & CLAMPED

TYPE CONNECTION
