TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router User Guide
16

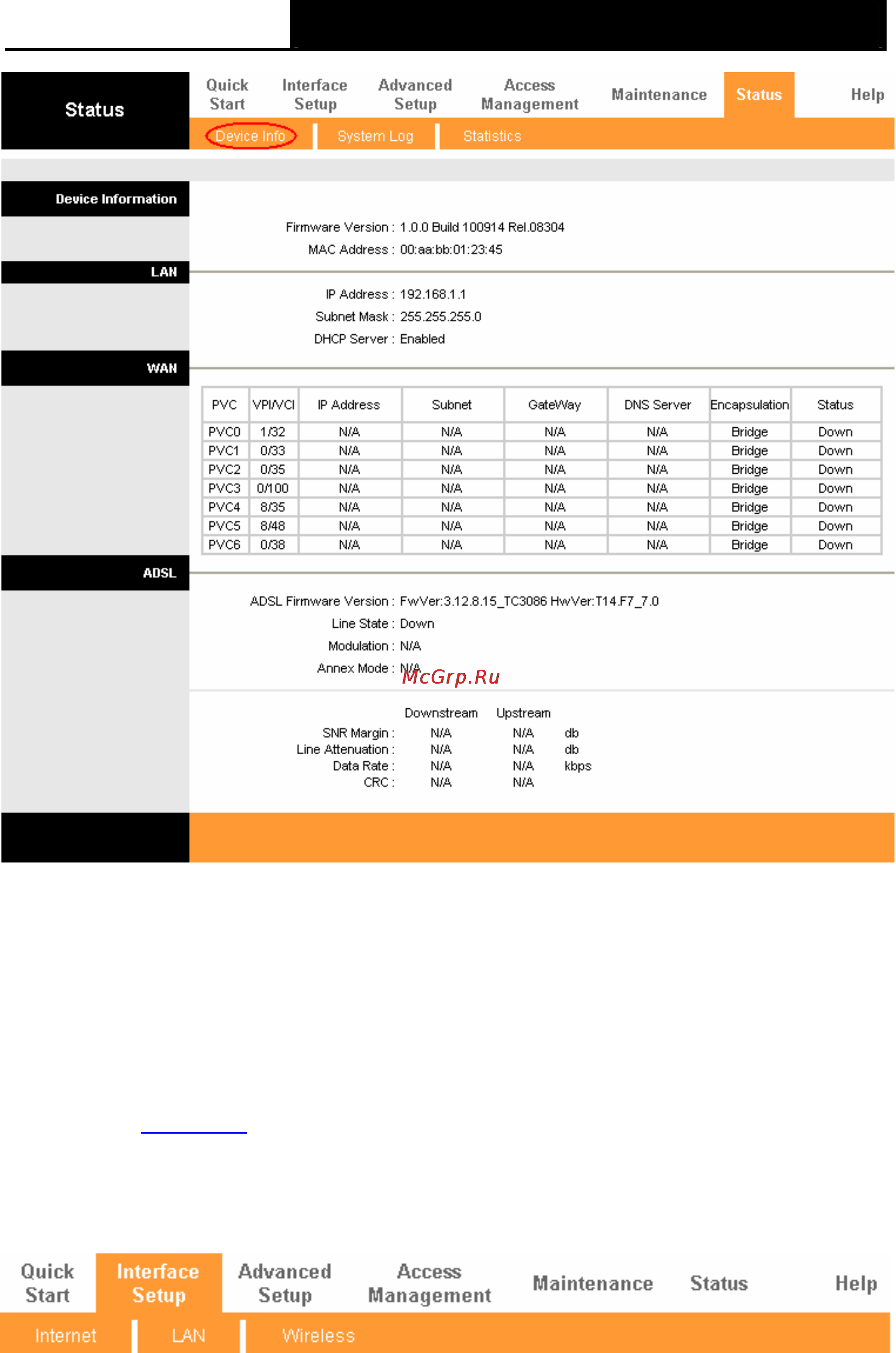

Figure 4-2
)
Note:
Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the
system log and traffic statistics about the Router.
4.2 Quick Start
Please refer to "3.2: Login".
4.3 Interface Setup
Choose “Interface Setup”, you can see the next submenus: Internet and LAN and Wireless.
Figure 4-3
Click any of them, and you will be able to configure the corresponding function.
