TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router User Guide

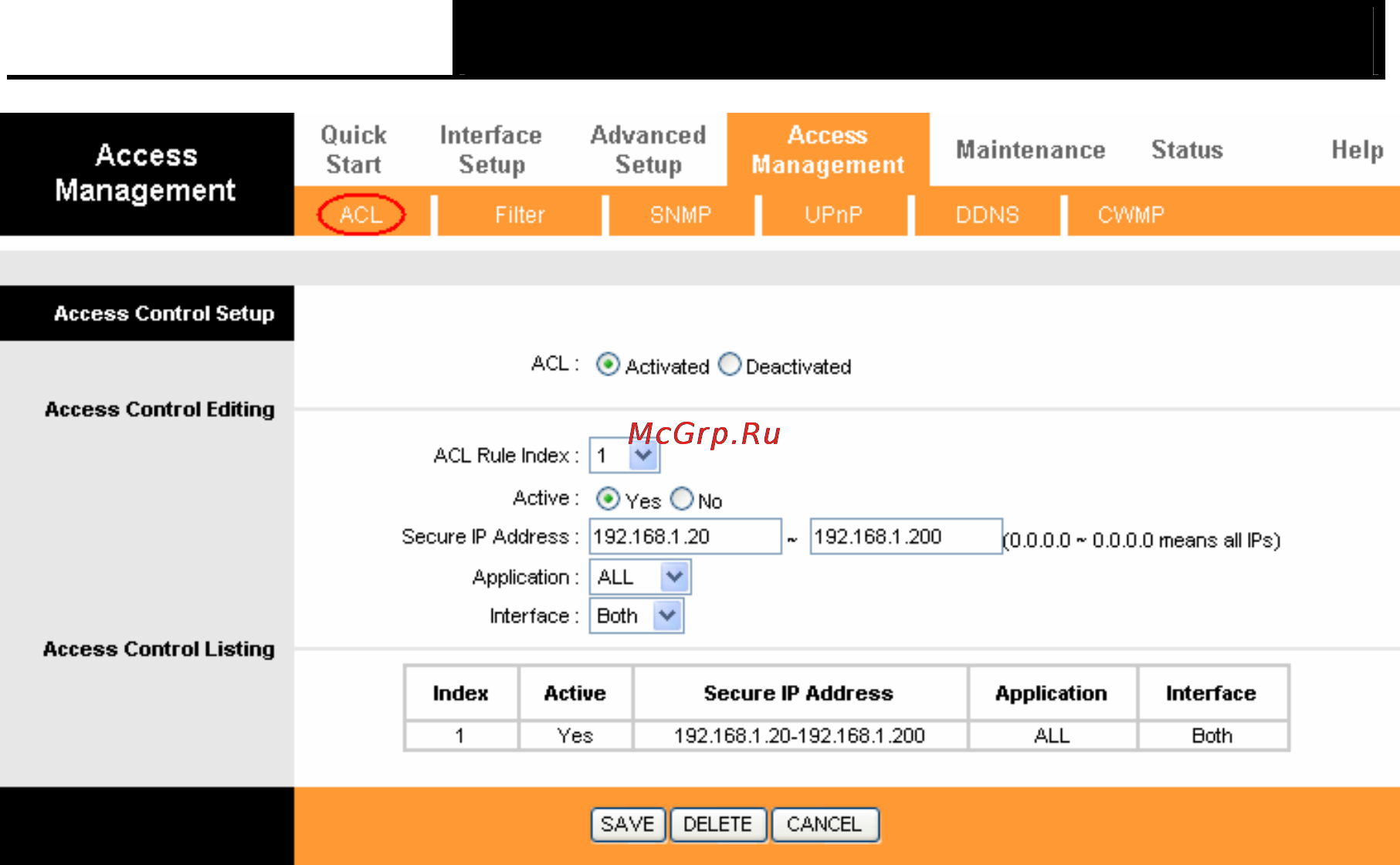

Figure 4-36

¾ ACL: If Activated, the IP addresses which are contained in the Access Control List can

access to the Router. If Deactivated, all IP addresses can access to the Router.

¾ ACL Rule Index: Select the ACL rule index for the entry.

¾ Active: Enable the ACL rule.

¾ Secure IP Address: Select the IP addresses which are permitted to access to the Router

remotely. With the default IP 0.0.0.0, any client would be allowed to remotely access the

ADSL Router.

¾ Application: Select the application for the ACL rule, and then you can access the Router

through it.

¾ Interface: Select the interface for access: LAN, WAN or Both.

¾ Access Control of Listing: This displays the information about the ACL Rules.

4.5.2 Filter

Choose “Access Management→Filter”, you can see the Filter screen (the default is IP/MAC

Filter screen shown in Figure 4-37 ). The filtering feature includes IP/MAC Filter, Application Filter,

and URL Filter. The feature makes it possible for administrators to control user's access to the

Internet, protect the networks.

4.5.2.1 IP Filter

Select IP/Mac Filter as the Filter type, and select IP as the Rule type (shown in Figure 4-37), then

you can configure the filter rules based on IP address. The filtering includes Outgoing and

Incoming, the detailed descriptions are provided below.
