TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router User Guide

4.5.2.2 MAC Filter

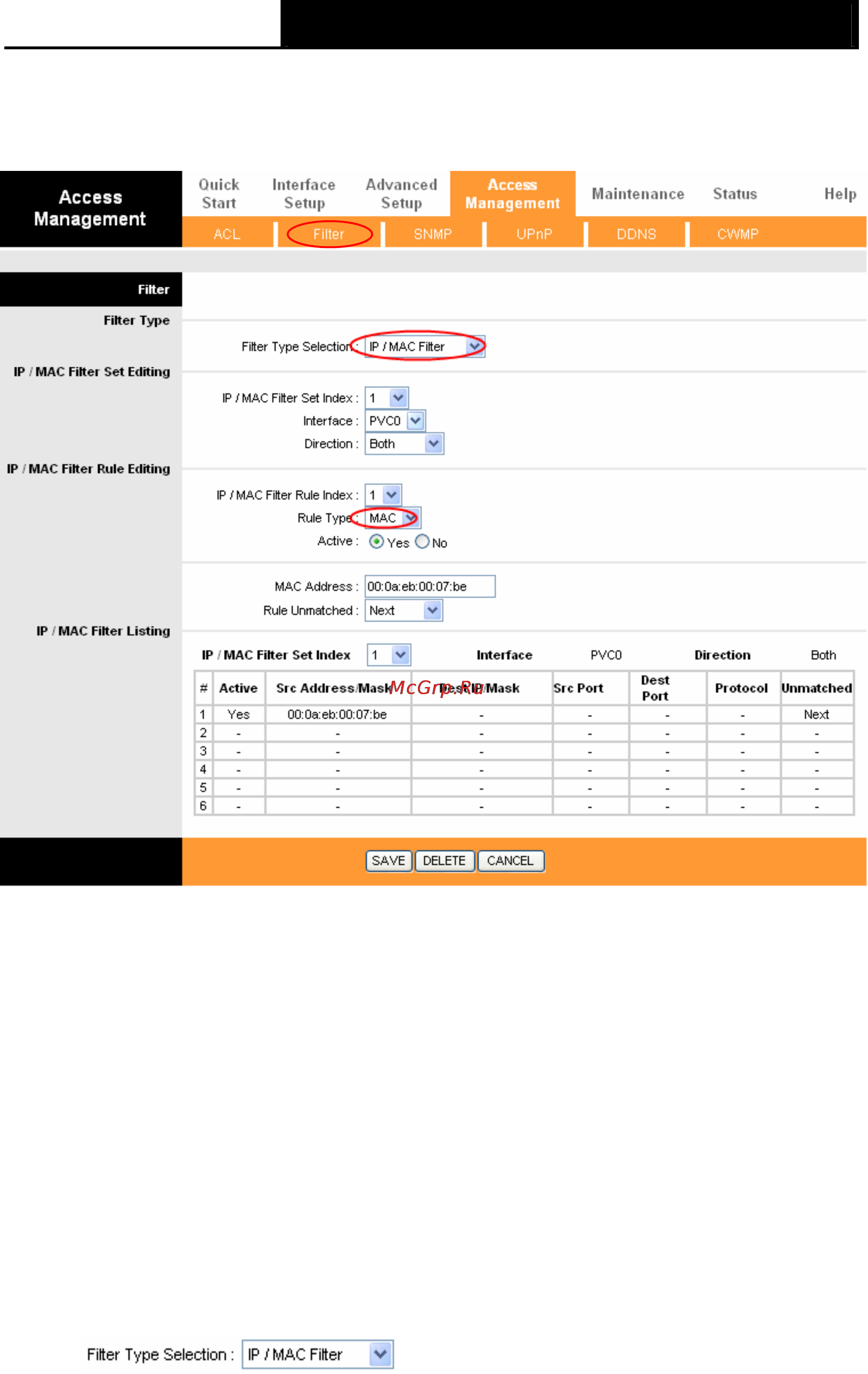

Select IP/Mac Filter as the Filter type, and select MAC as the Rule type (shown in Figure 4-38),

and then you can configure the filter rules based on MAC address.

Figure 4-38

¾ Rule Type: Select MAC for the MAC Filter rule.

¾ Active: Select “Yes” to make the rule to take effect.

¾ MAC Address: Enter the MAC address for the rule.

¾ Rule Unmatched: If the current rule can not match, and you select Forward, the Router will

skip the rule and transmit directly. If you select Next, the Router will find the next filter rule

(show in Filter list) to match.

¾ IP/MAC Filter Listing: This displays the information about the MAC Filter rules.

To add a MAC Address filtering entry:

For example: If you want to block the PCs with MAC addresses 00-0A-EB-00-07-BE and

00-0A-EB-00-07-5F to access the Internet, you can configure as follows. Presume the rules are

both aimed at the interface PVC0, and their indexes are (1, 1) and (1, 2).

Step 1: Select the “IP/MAC Filter” as the Filer Type Selection:

Select the “MAC” as the Rule Type on the Filter screen
