TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router User Guide

• Use QSS: Use QSS (Wi-Fi Protected Setup) function, you can add a new wireless device

to an existing network quickly. To Use QSS, keep the default setting, and configure the

parameters in QSS Settings. If you don’t want to Use QSS, select “No”, then you will see

the screen as shown below.

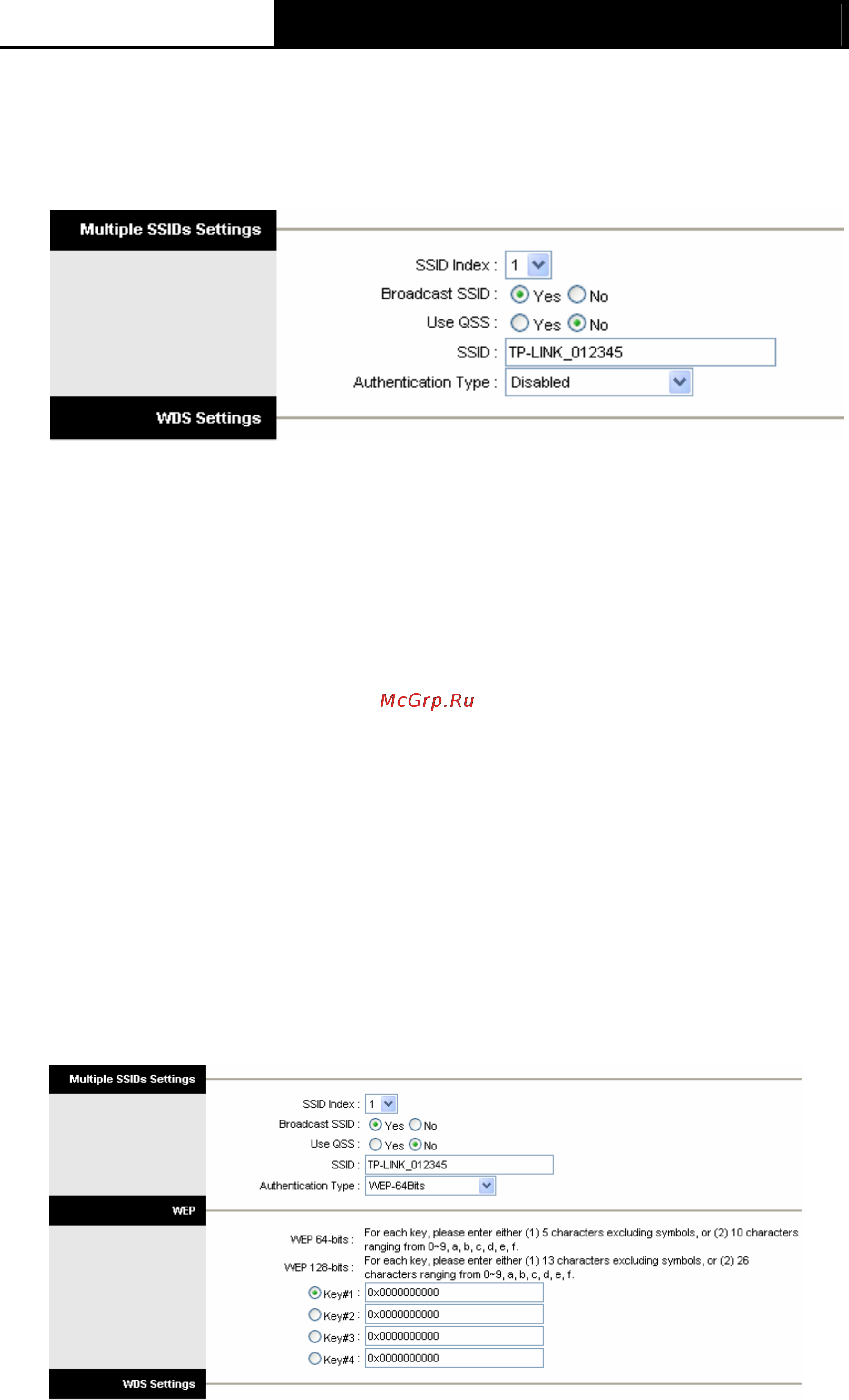

Figure 4-13

• SSID: Wireless network name shared among all points in a wireless network. The SSID

must be identical for all devices in the wireless network. It is case-sensitive and must not

exceed 32 characters (use any of the characters on the keyboard). Make sure this setting

is the same for all stations in your wireless network. Type the desired SSID in the space

provided.

• Authentication Type: Select an authentication type from the drop-down list, which

allows you to configure security features of the wireless LAN interface. Options available

are: Disabled, WEP-64Bits, WEP-128Bits, WPA-PSK, WPA2-PSK and

WPA-PSK/WPA2-PSK.

)

Note:

For most users, it is recommended to use the default Wireless LAN Performance settings. Any

changes made to these settings may adversely affect your wireless network. Under certain

circumstances, changes may benefit performance. Carefully consider and evaluate any changes

to these wireless settings.

1) WEP-64Bits

To configure WPA-64Bits settings, select the WPA-64Bits option from the drop-down list. The

menu will change to offer the appropriate settings. WPA-64Bits is a data privacy mechanism

based on a 64-bit shared key algorithm, as described in the IEEE 802.11g standard.

Figure 4-14
