TL-R402M Cable/DSL Router User Guide

Caution:

Sometimes the connection cannot be disconnected although you specify a time to Max Idle

Time. This is because there may still be active applications in the background, which may

cause fee accounted by your ISP.

Click the Connect button to connect immediately, Click the Disconnect button to disconnect

immediately.

Click the Advanced Settings button to set up the advanced option, the page shown in Figure 4-7

will then appear:

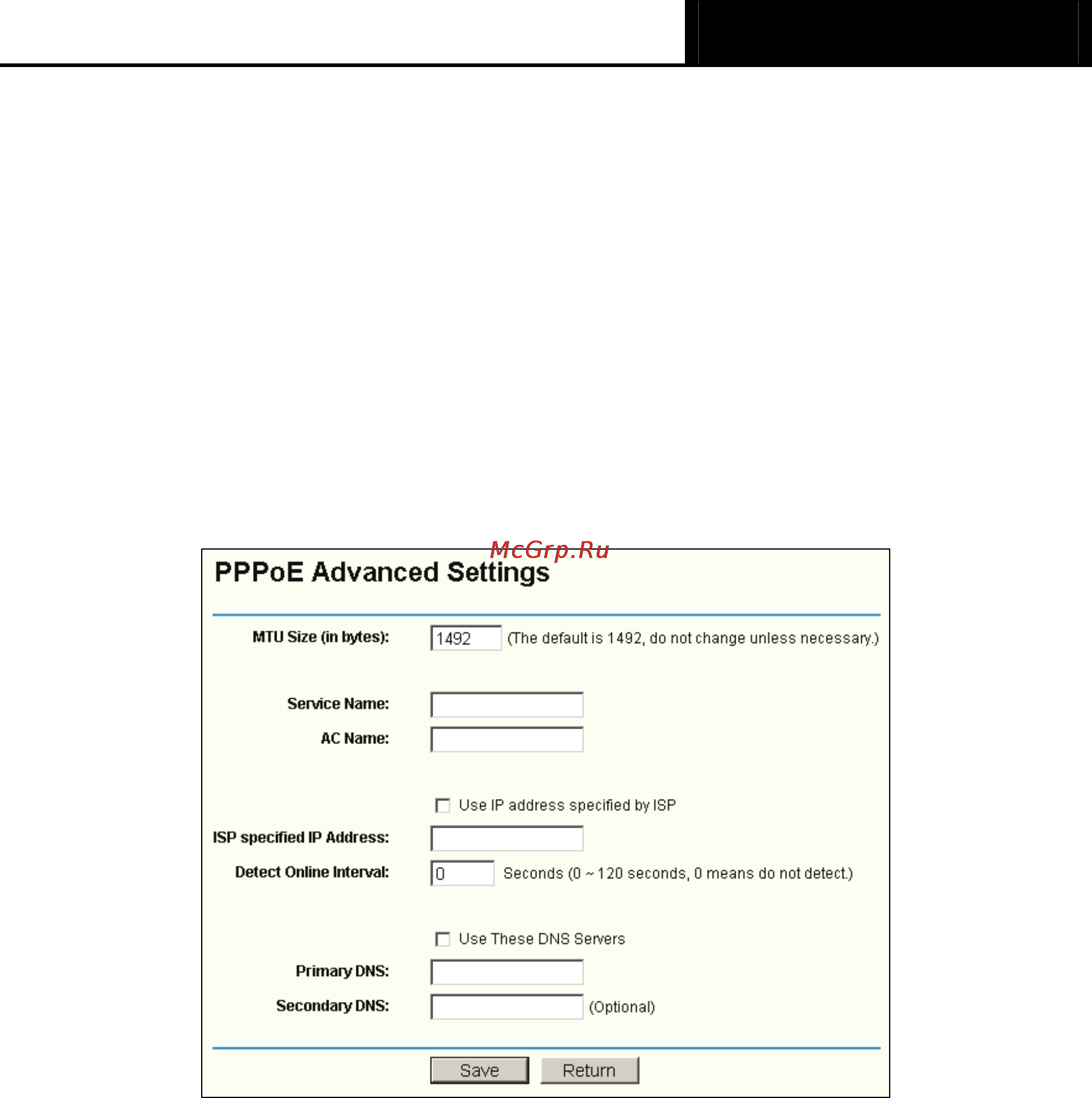

Figure 4-7 PPPoE Advanced Settings

¾ Packet MTU - The default MTU size is 1492 bytes, which is usually fine. For some ISPs, you

need modify the MTU. This should not be done unless you are sure it is necessary for your

ISP

¾ Service Name/AC Name - The service name and AC (Access Concentrator) name, this

should not be done unless you are sure it is necessary for your ISP

¾ ISP Specified IP Address - If you know that your ISP does not automatically transmit your

IP address to the router during login, click “Use the IP Address specified by ISP” check

box and enter the IP address in dotted-decimal notation, which your ISP provided

¾ Detect Online Interval - The default value is 0, you can input the value between 0 and 120.

The router will detect Access Concentrator online at every interval between seconds. If the

value is 0, it means do not detect

¾ DNS IP Address - If you know that your ISP does not automatically transmit DNS
