TL-R402M Cable/DSL Router User Guide

FTP. A virtual server is defined as a service port, and all requests from Internet to this service port

will be redirected to the computer specified by the server IP. Any PC that was used for a virtual

server must have a static or reserved IP address because its IP address may change when using

the DHCP function. You can set up virtual servers on this page, shown in Figure 4-15:

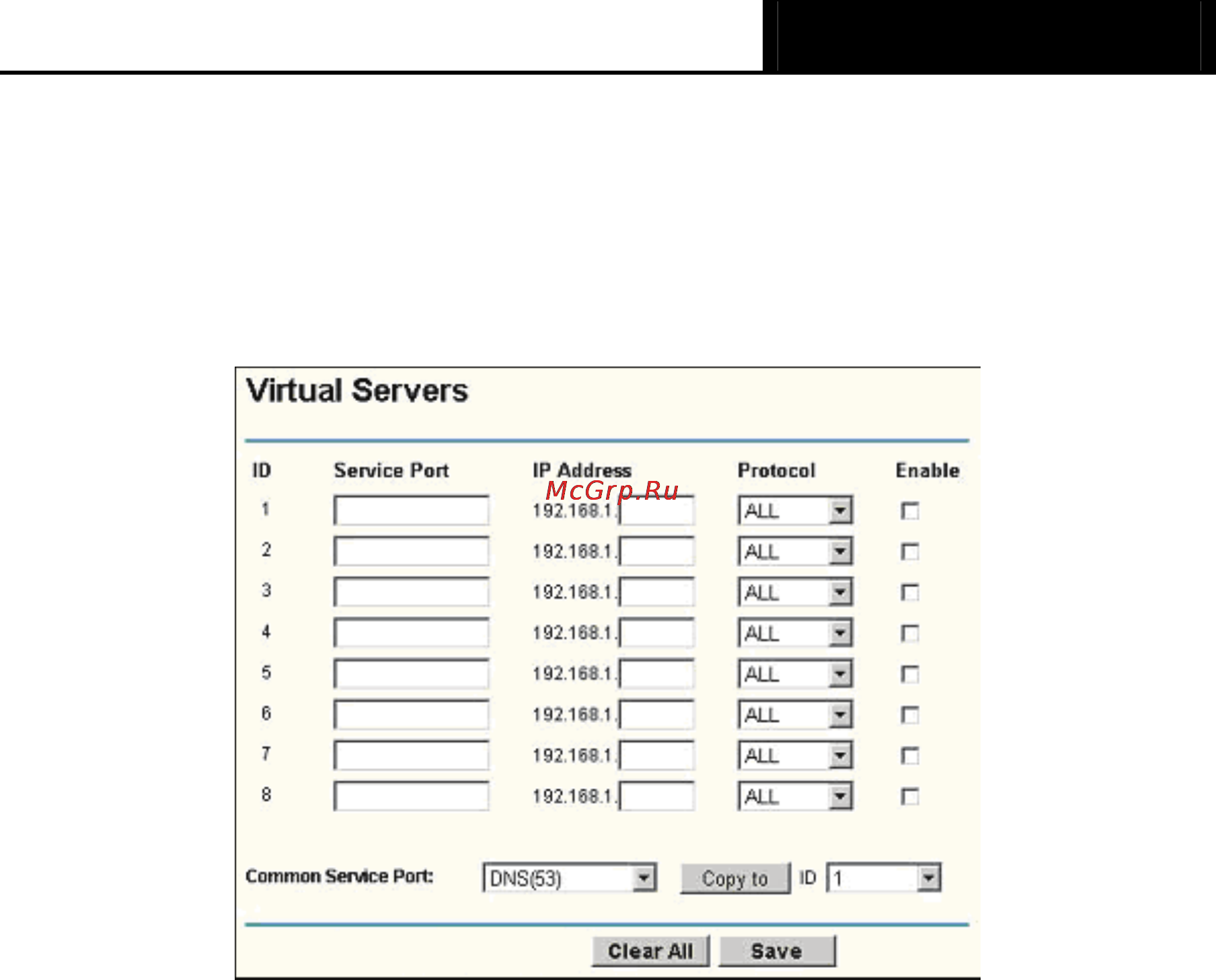

Figure 4-15 Virtual Servers

¾ Service Port - The numbers of External Ports. You can type a service port or a range of

service ports (the format is XXX – YYY, XXX is Start port, YYY is End port)

¾ IP Address - The IP address of the PC running the service application

¾ Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols

supported by the router)

¾ Enable - The Enable checkbox to enable the virtual server entry

¾ Common Service Port - Some common services already listed in the pull-down list

To setup a virtual server entry:

1. Select the service you want to use from the Common Service Port list, select the ID you

want to use, and click the Copy to button. If the Common Service Port list does not have

the service that you want to use, type the number of the service port or service port range in

the Service Port box.

2. Type the IP address of the computer in the Server IP Address box.

3. Select the protocol used for this application, either TCP,UDP, or All.

4. Select the Enable checkbox to enable the virtual server.
