TL-R402M Cable/DSL Router User Guide

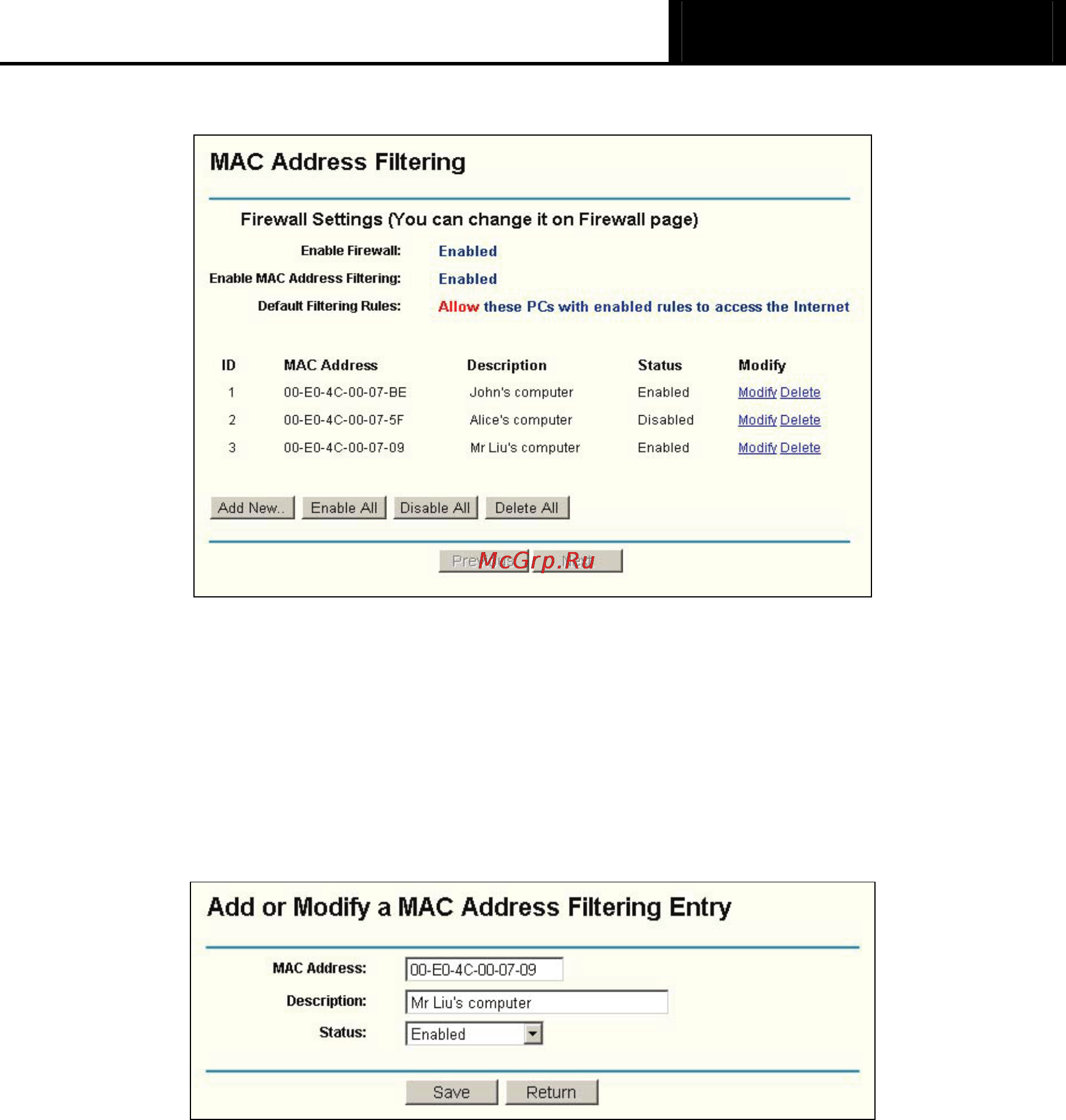

Figure 4-25 MAC Address Filtering

Before setting up MAC Filtering entries, you must ensure that Enable Firewall and Enable MAC

Filtering have been selected on the Firewall page. To Add a MAC Address filtering entry, click the

Add New… button. The page " Add or Modify a MAC Address Filtering entry" will appear,

shown in Figure 4-26:

Figure 4-26 Add or Modify a MAC Address Filtering entry

To add or modify a MAC Address Filtering entry, follow these instructions:

1. Enter the appropriate MAC address into the MAC Address field. The format of the MAC

address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:

00-0E-AE-B0-00-0B.

2. Type the description of the PC in the Description field. Fox example: John’s PC.

3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.

4. Click the Save button to save this entry.

To add additional entries, repeat steps 1-4.

When finished, click the Return button to return to the MAC Address Filtering page.

To Modify or delete an existing entry:
