limited to one hub. With a Class II hub, the network is limited to
two hubs.
However, you can expand your 100Base-TX network that
includes either class of hub by adding a 4-Slot Modular Switch.
With the 4-Slot Modular Switch added to your 100Base-TX
network, you can separate that network into individual
segments with their own collision domains. In other words, you
can connect one 100Base-T network with one or two hubs to
the 4-Slot Modular Switch, and you can connect another
100Base-TX network with one or two hubs to the 4-Slot
Modular Switch. You will then have one network with two
collision domains.

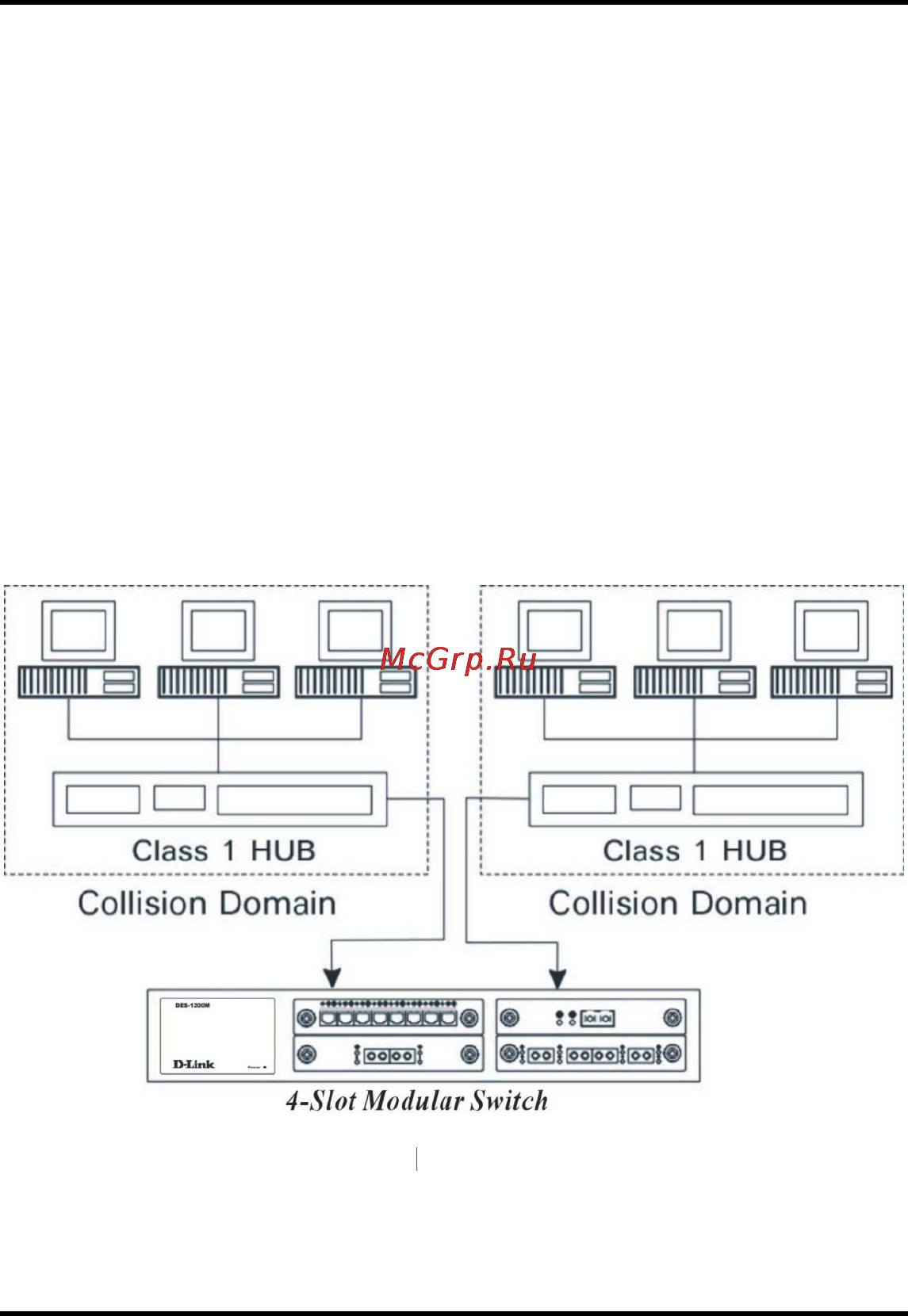

Figure 2-2. Expanding your 100Base-TX network (Class I)
