16
Expanded Networks
You can expand your 10Base-T or 100Base-TX or 1000Base-
SX/LX network beyond its hub limit by adding a 4-Slot Modular
Switch.
10Base-T Networks
10Base-T Networks are limited to four hubs between any two
nodes. By adding your 4-Slot Modular Switch to a network, you
can divide that network into segments with their own collision
domains. In other words, you can connect one 10Base-T
network with four hubs to your 4-Slot Modular Switch. Then you
can connect another 10Base-T network with four hubs to your
4-Slot Modular Switch. You will then have one network with two
collision domains, allowing four hubs on each port.

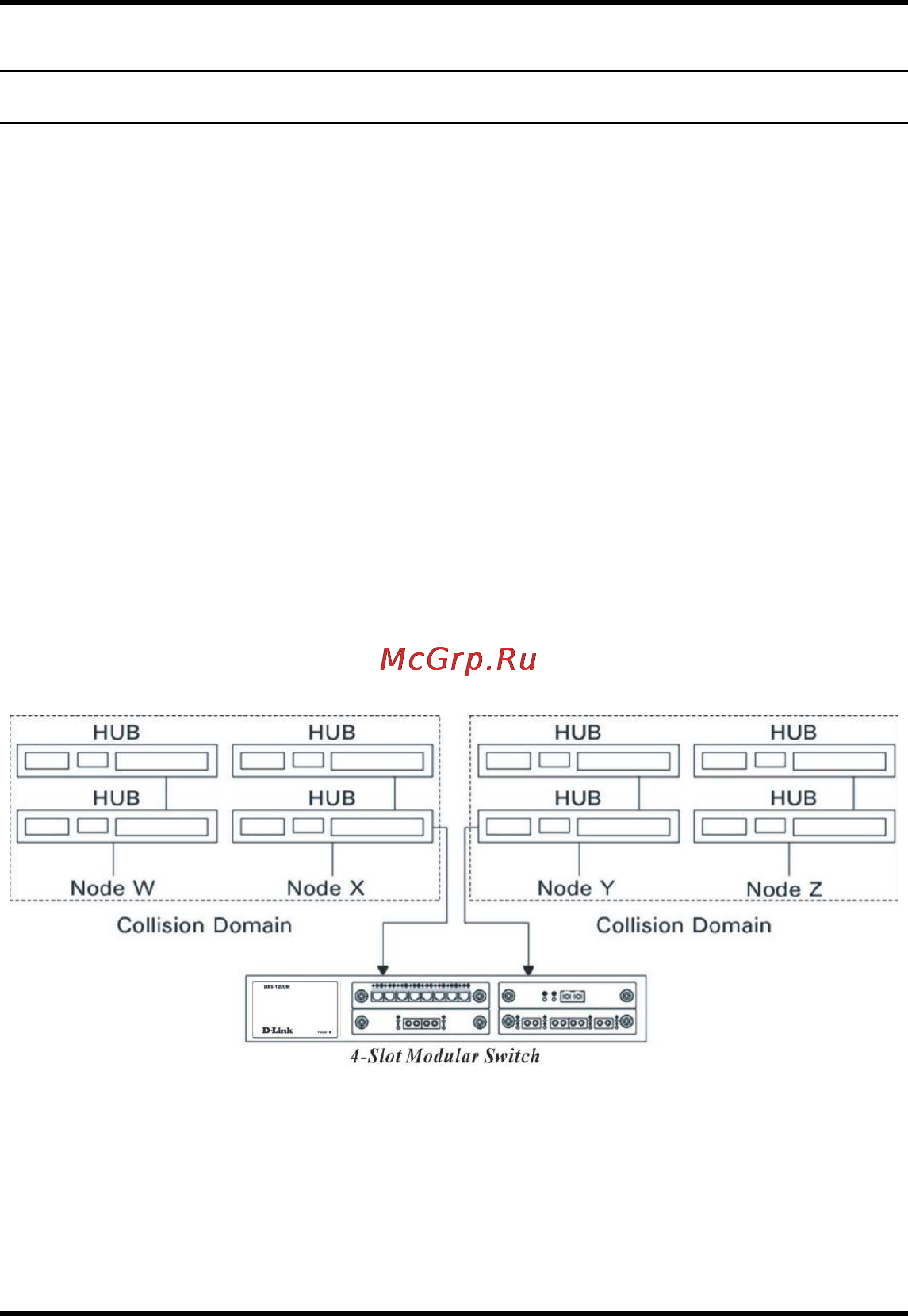

Figure 2-1. Expanding your 10Base-T Network
100Base-TX Networks
The hub limit of a 100Base-TX network depends on the class of
the hub in the network. With a Class I hub, the network is
