10
DES-124F 4 Ports 100Base-FX Fiber Module

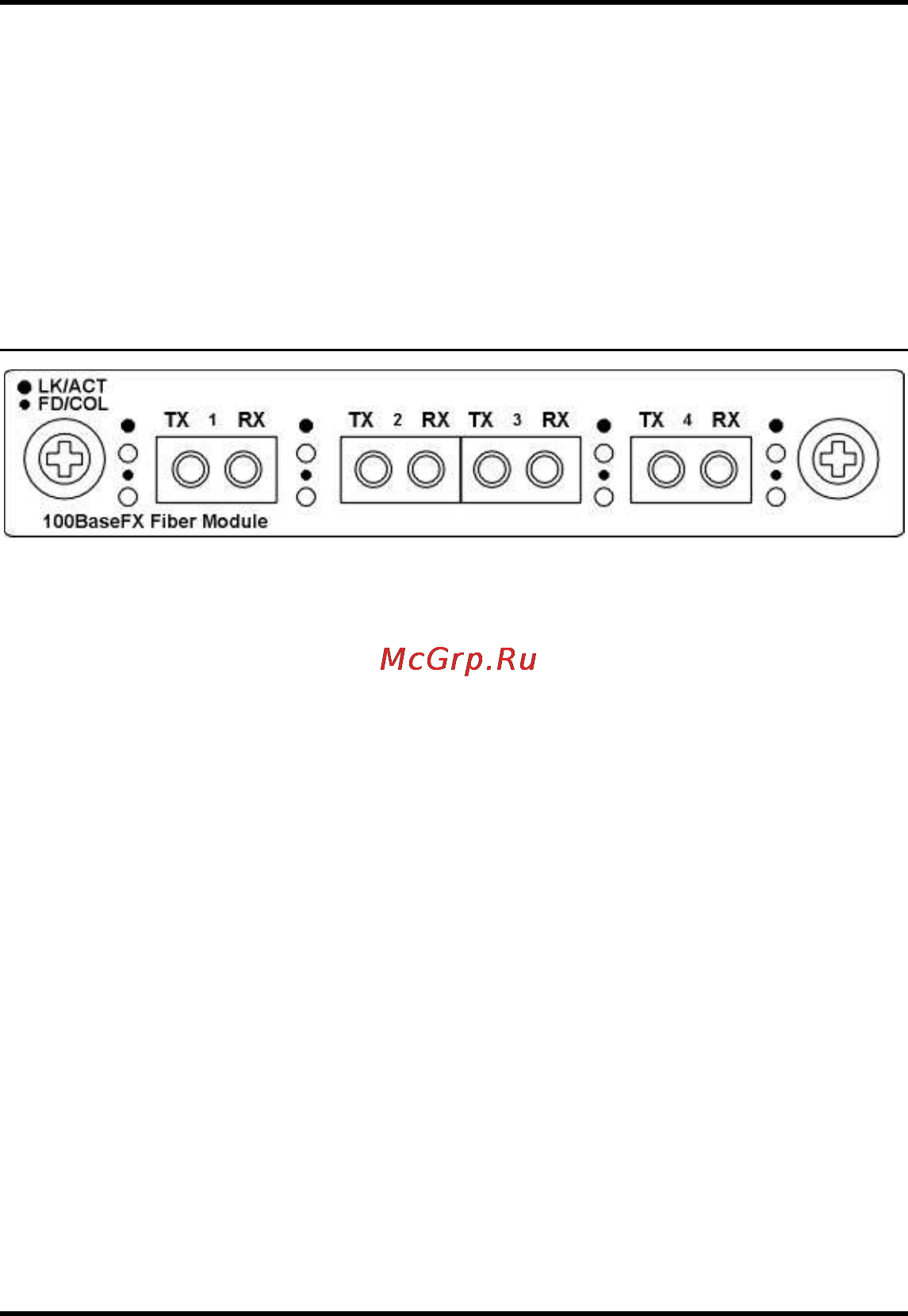

Figure 1-8. 4 port 100Base-TX/FX Front View
When installed into a DES-1200M , the DES-124F Module
provides 4 x 100Mbps Fast Ethernet fiber ports which can be
used to:
Connect the DES-1200M to the backbone of your network;
that is, to a basement switch, hub or router.
Connector the DES-1200M to a 100Mbps server or end
station.
An ST (or SC) connector provides the link to the multi-mode
fiber cabling and three LEDs show five status of the Module at-
a glance. A DIP-switch sets the operating mode to half duplex
or full duplex (default).
