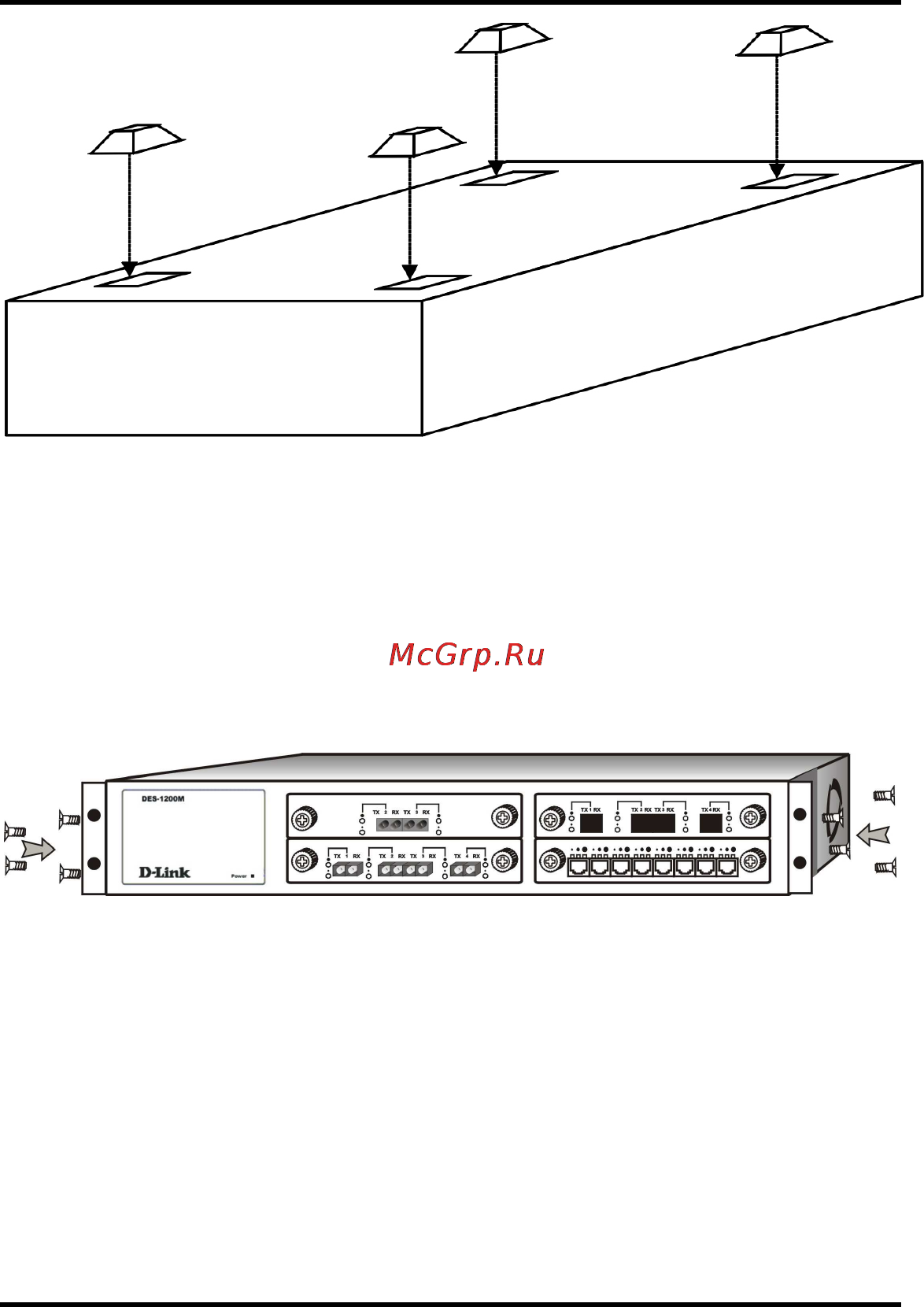

Figure 3-1. Attaching self-adhesive feet for desktop installation
Rack Installation
Your switch comes with two rack mounting brackets. you can
use these brackets to mount the switch on an EIA standard 19"
rack. Attach the brackets to the switch, using the screws
provided.
Figure 3-2. Attaching the mount brackets for rack installation
Next, install the switch in the rack using the screws provided to
attach the brackets to the rack.
