11
DCS-950G User’s Manual
D-Link Systems, Inc.
Hardware Installation

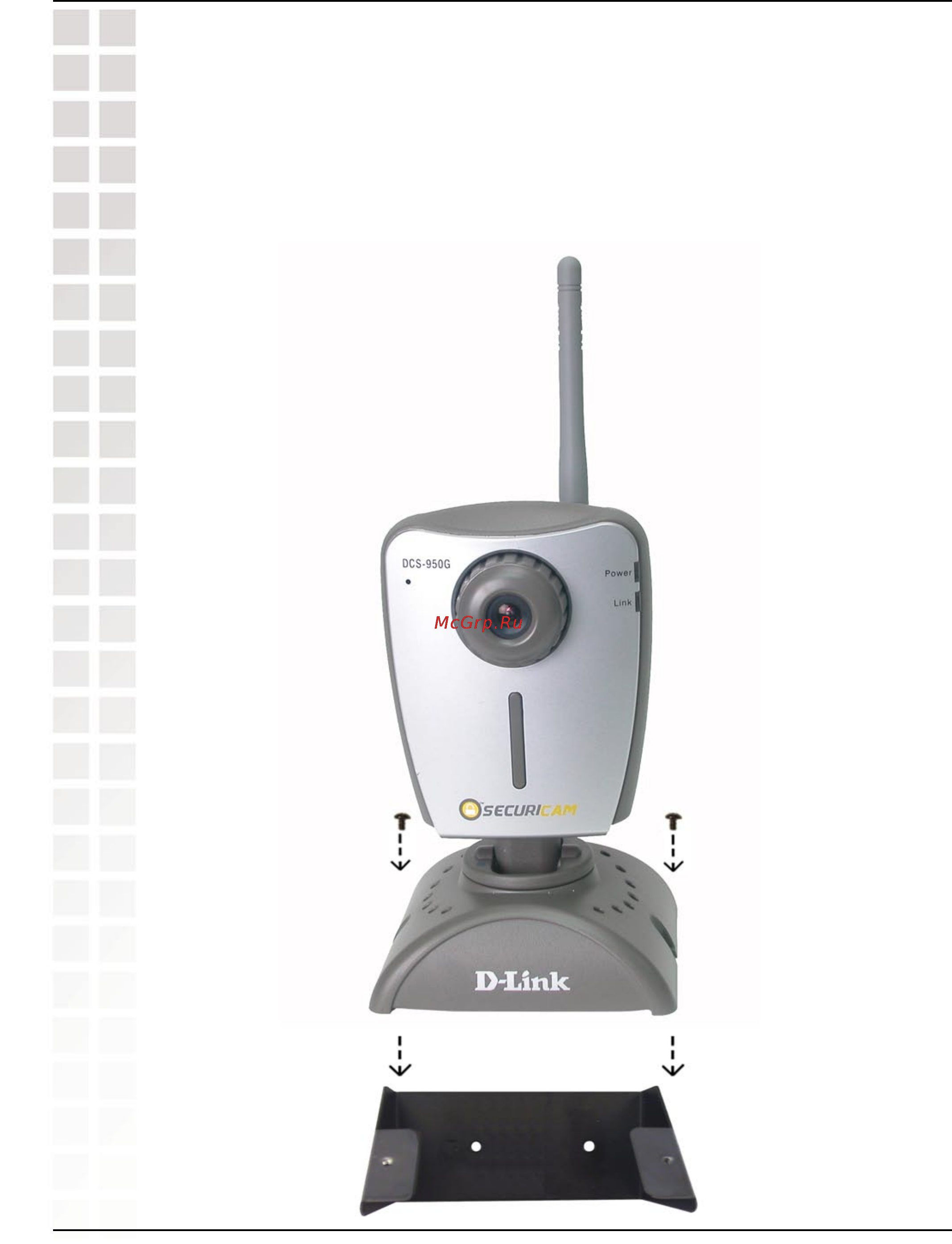

Attach the Mounting Bracket
If you would like to mount the camera on a wall, locate the necessary screws and
continue with securing the bracket to the wall. To attach the mounting bracket to the
Camera, simply attach the Camera’s base to the bracket (see illustration below).
