Hardware Overview
Hardware Overview

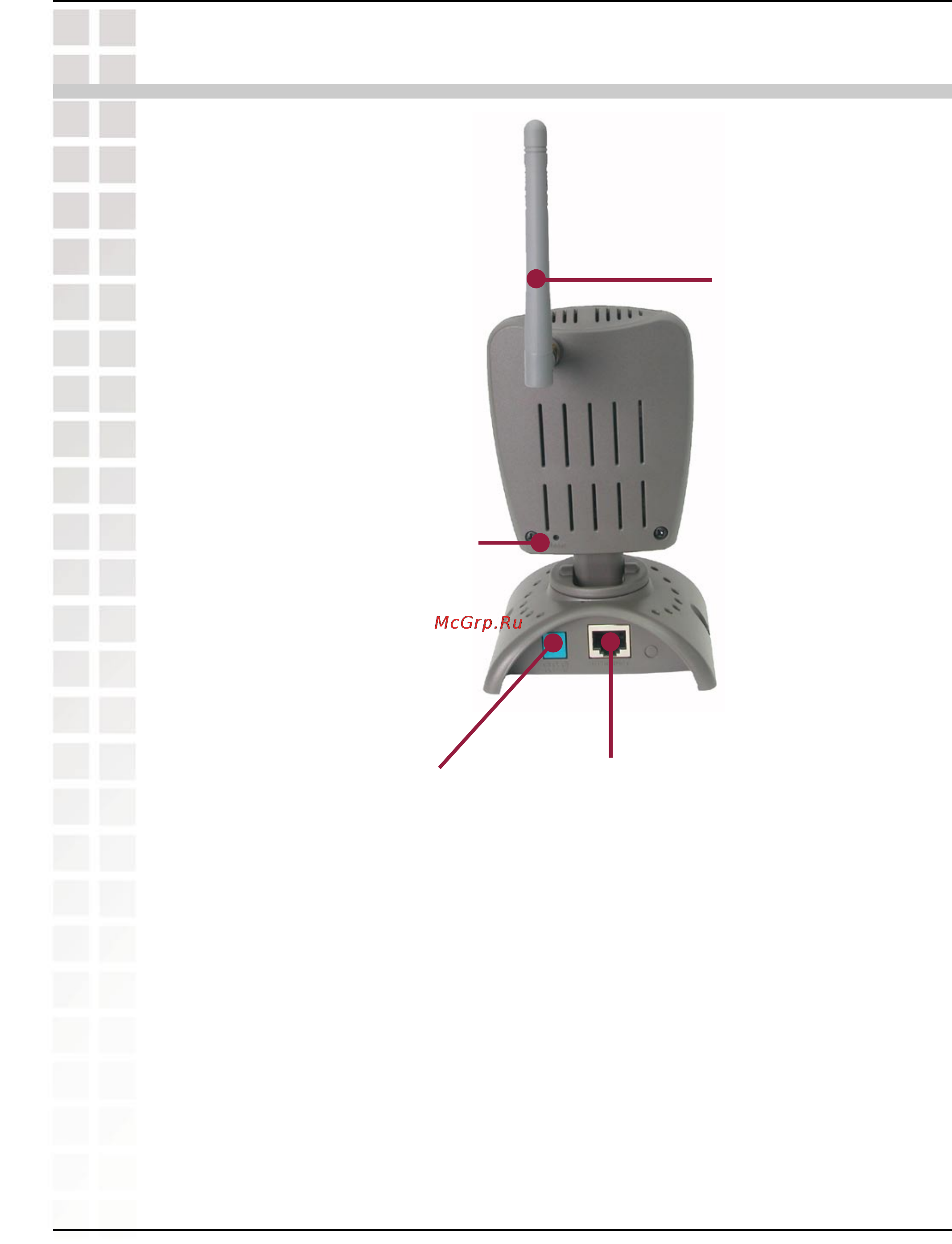

Connections
Ethernet Cable Connector
The DCS-950G features an RJ-45
connector for connections to 10Base-T
Ethernet cabling or 100Base-TX Fast
Ethernet cabling (which should be
Category 5 UTP cable). The port supports
the NWay protocol, allowing the DCS-950G
to automatically detect or negotiate the
transmission speed of the network. The
port also supports MDI/X, which allows
the use of either straight through or cross-
over cables.
DC Power Connector
The DC power input connector
is labeled DC 5V with a single
jack socket to supply power to
the DCS-950G.
Reset Button
Reset will be initiated when the
reset button is pressed once and
Power LED begins to flash.
Factory Reset will be initiated
when the reset button is pressed
continuously for ten seconds.
Release the reset button and the
Power LED will begin to flash
indicating that the DCS-950G’s
settings are reverting back to the
factory settings. The IP address will
also return to the default setting of
192.168.0.20.
802.11g Antenna
The DCS-950G features
an 802.11g wireless
antenna for 802.11g
wireless connectivity to
your existing
wireless
network.
The DCS-950G
can be used in conjunction
with an 802.11g compliant
access point or router.
