71
DCS-950G User’s Manual
D-Link Systems, Inc.
IPView Lite
View

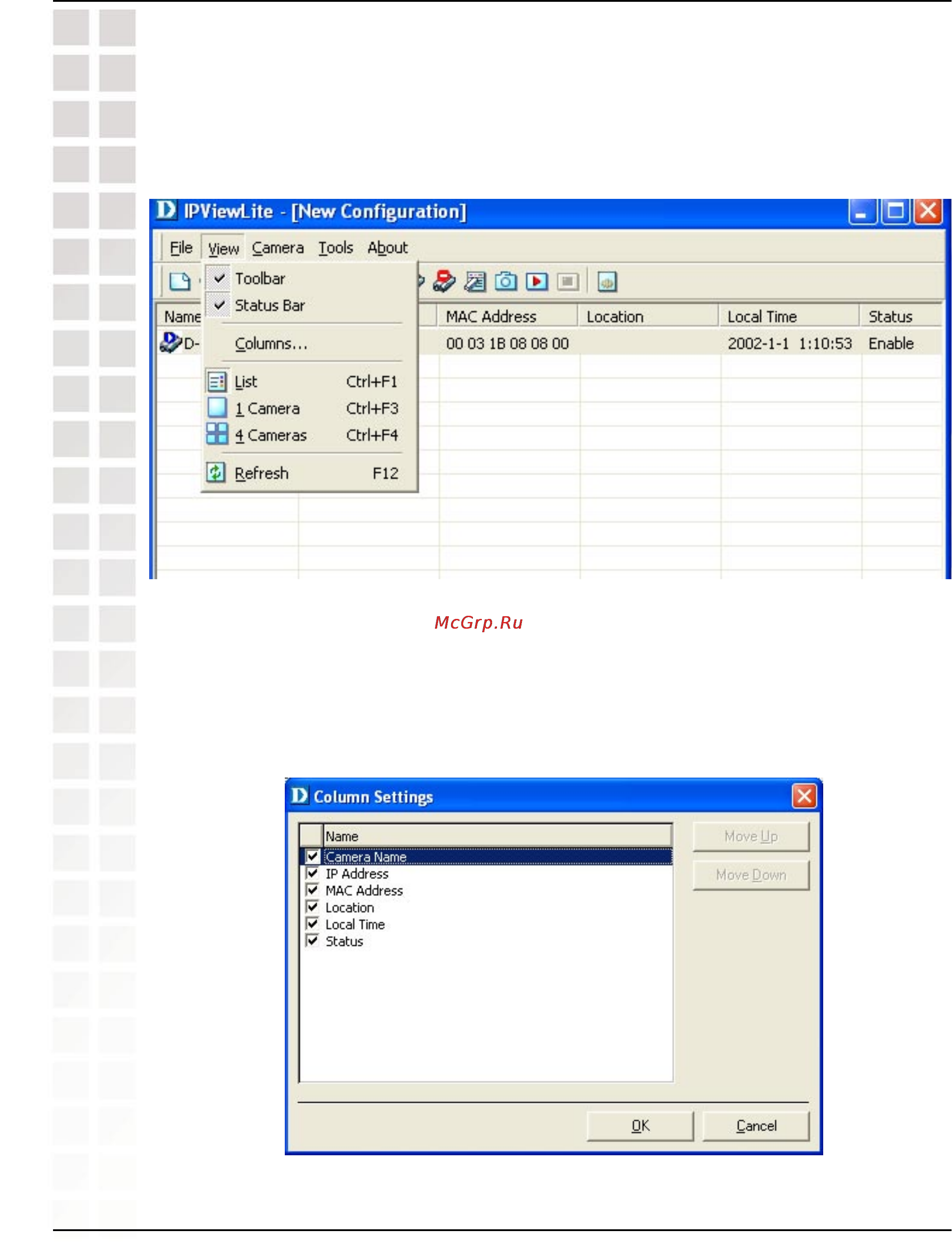

When Columns is launched, a dialog box will appear displaying the Column Settings.
Select the columns that you wish to appear in the List View as illustrated below.
View on the menu bar provides users with management capabilities for Columns, List,
Camera and Refresh. You can view the Camera in 1 Camera or 4 Camera mode. The
View menu bar is pictured below.
Columns
