34
DCS-950G User’s Manual
D-Link Systems, Inc.

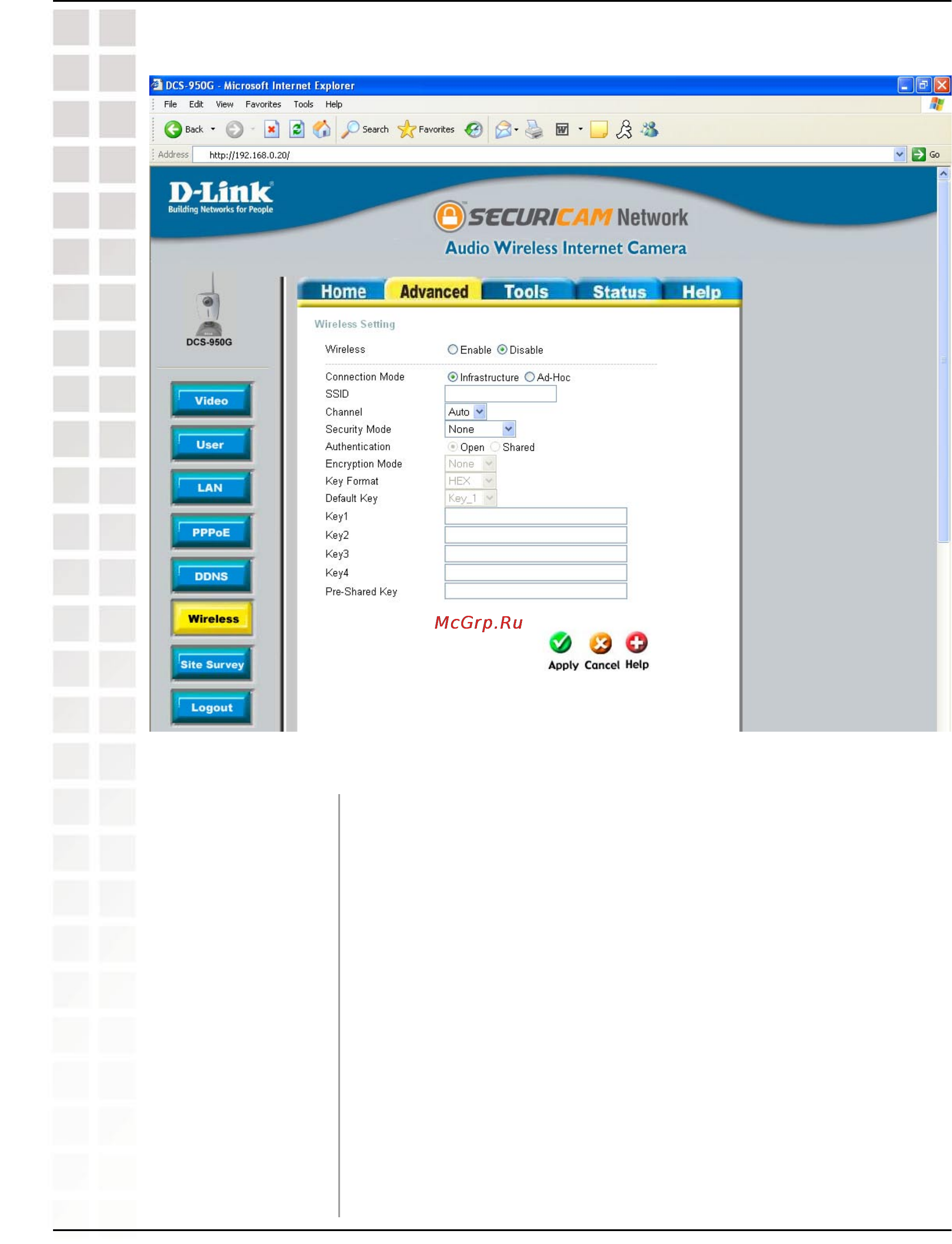

Using the Configuration Menu
Advanced > Wireless
Wireless:
Wireless
Click to enable or disable your wireless settings.
Select one of the two options:
Infrastructure - connecting the WLAN using an Access Point
such as the DWL-2100AP or a DI-624 wireless router. (The
default setting.)
Ad-Hoc – wireless mode used when connecting directly to a
computer equipped with a wireless adapter in a peer-to-peer
environment.
(Service Set Identifier) is a name that identifies a wireless
network. Access Points and wireless clients attempting to
connect to a specific WLAN (Wireless Local Area Network)
must use the same SSID. The default setting is NULL.
Connection Mode:
SSID:
