D-Link DCS-950G [62/96] How to change the ip address
![D-Link DCS-950G [62/96] How to change the ip address](/views2/1043941/page62/bg3e.png)
62
DCS-950G User’s Manual
D-Link Systems, Inc.
IPView Lite

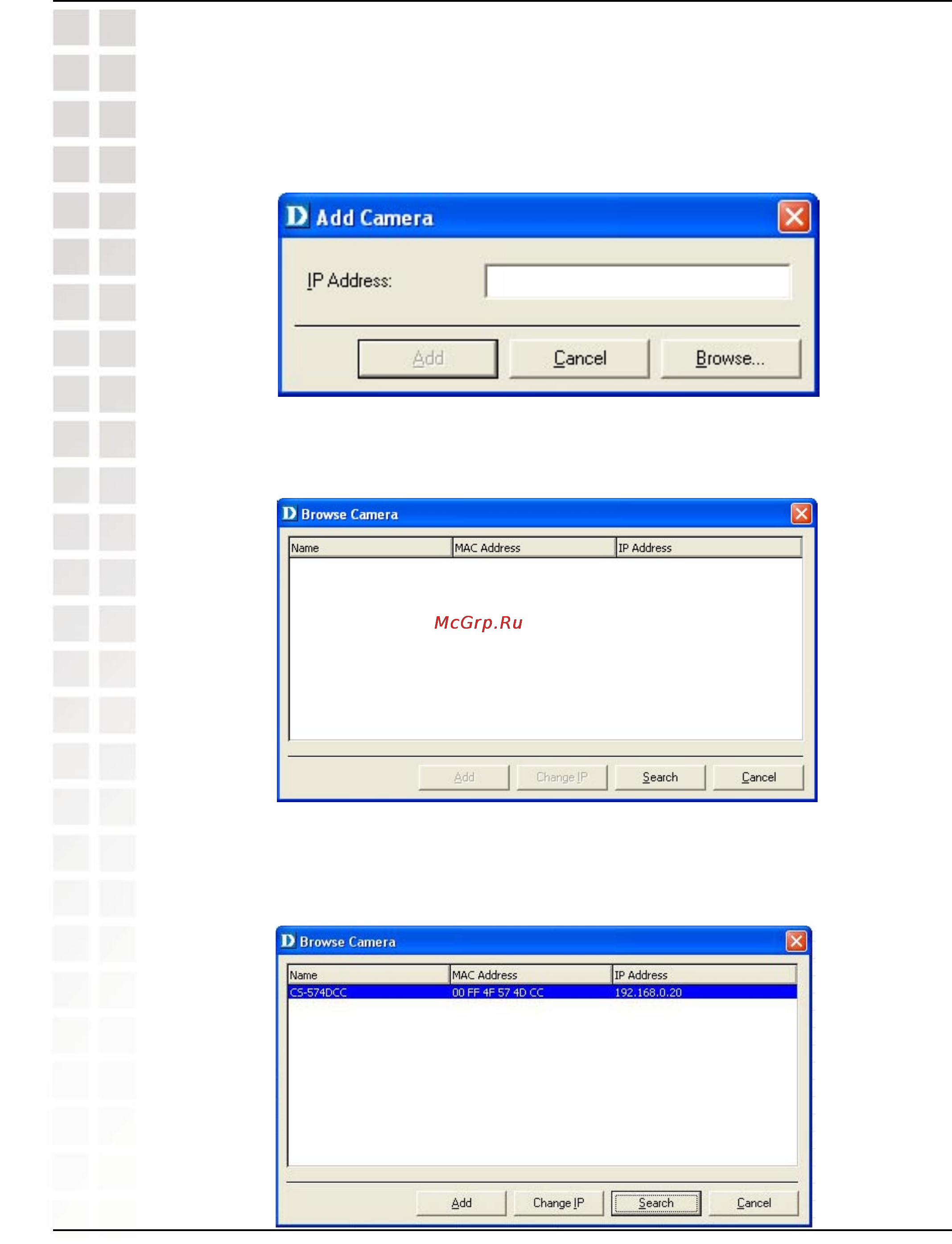

To change an IP Address for a camera, select Camera > Add. An Add Camera dialog
box will appear (see below).
Click on Browse. The Browse Camera dialog box will appear with a blank screen (see
below).
How to Change the IP Address
Click Search. IPView Lite will detect and search for all available cameras installed on
the local area network (example below.)
