30
DCS-950G User’s Manual
D-Link Systems, Inc.

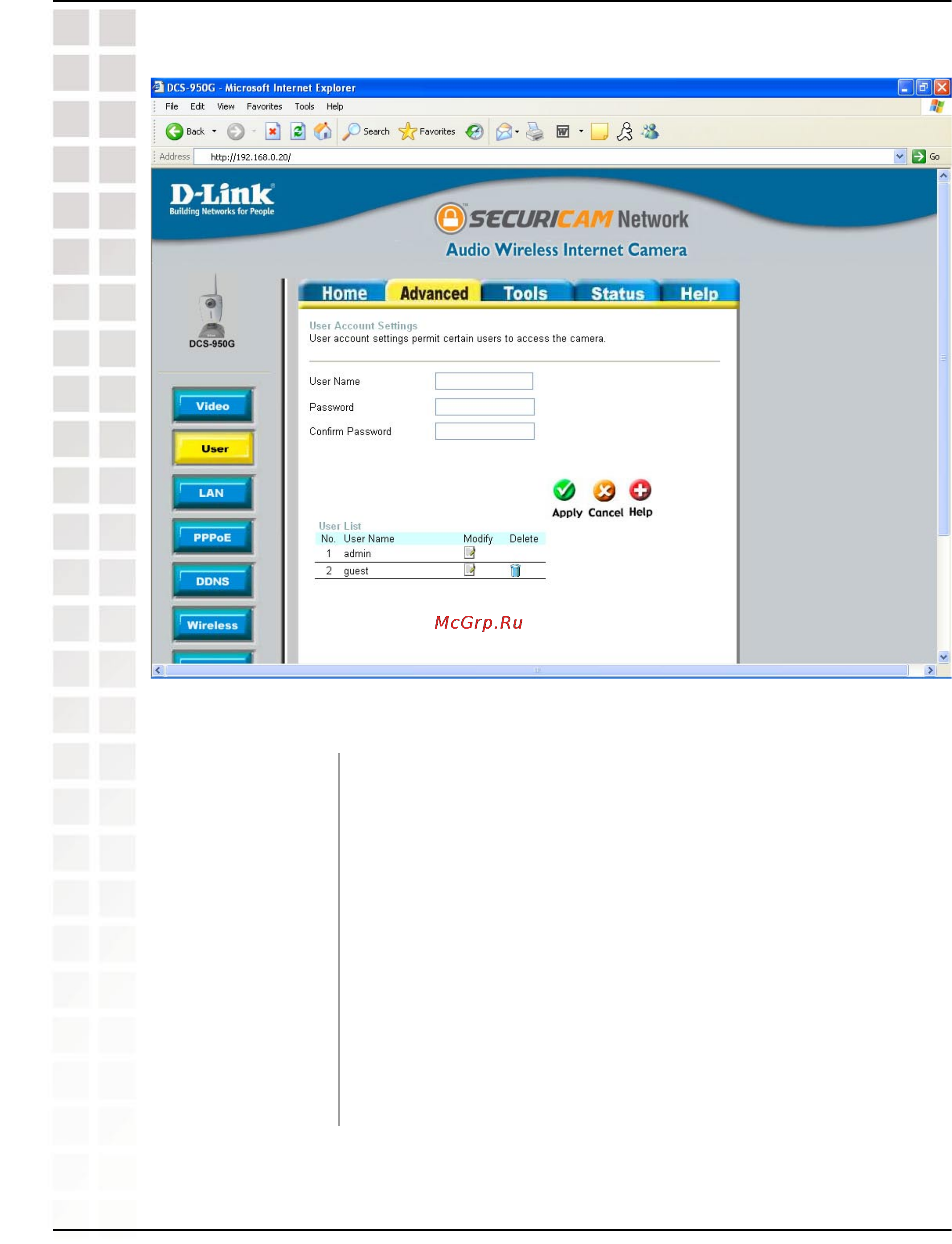

Using the Configuration Menu
User
Advanced > User
User Name:
Password:
User List:
Enter the user name in this field. A maximum of 32 user names
are allowed, however each user name must be different.
Each user name can be used as a group. For example, if the
Username is Guest and the User Password is Guest, anyone
can access the DCS-950G using this information. The maximum
length for the User Name is 16 characters (Printable ASCII).
Enter the user’s password you want to assign to the specific
Username. The maximum password length is 16 characters
(Printable ASCII).
The User List displays all the user names that have access to
the DCS-950G. To delete a user, click on the corresponding
trash can icon.
