D-Link DIR-857 [19/99] Setup wizard

15D-Link DIR-855 User Manual

Section 3 - Conguration

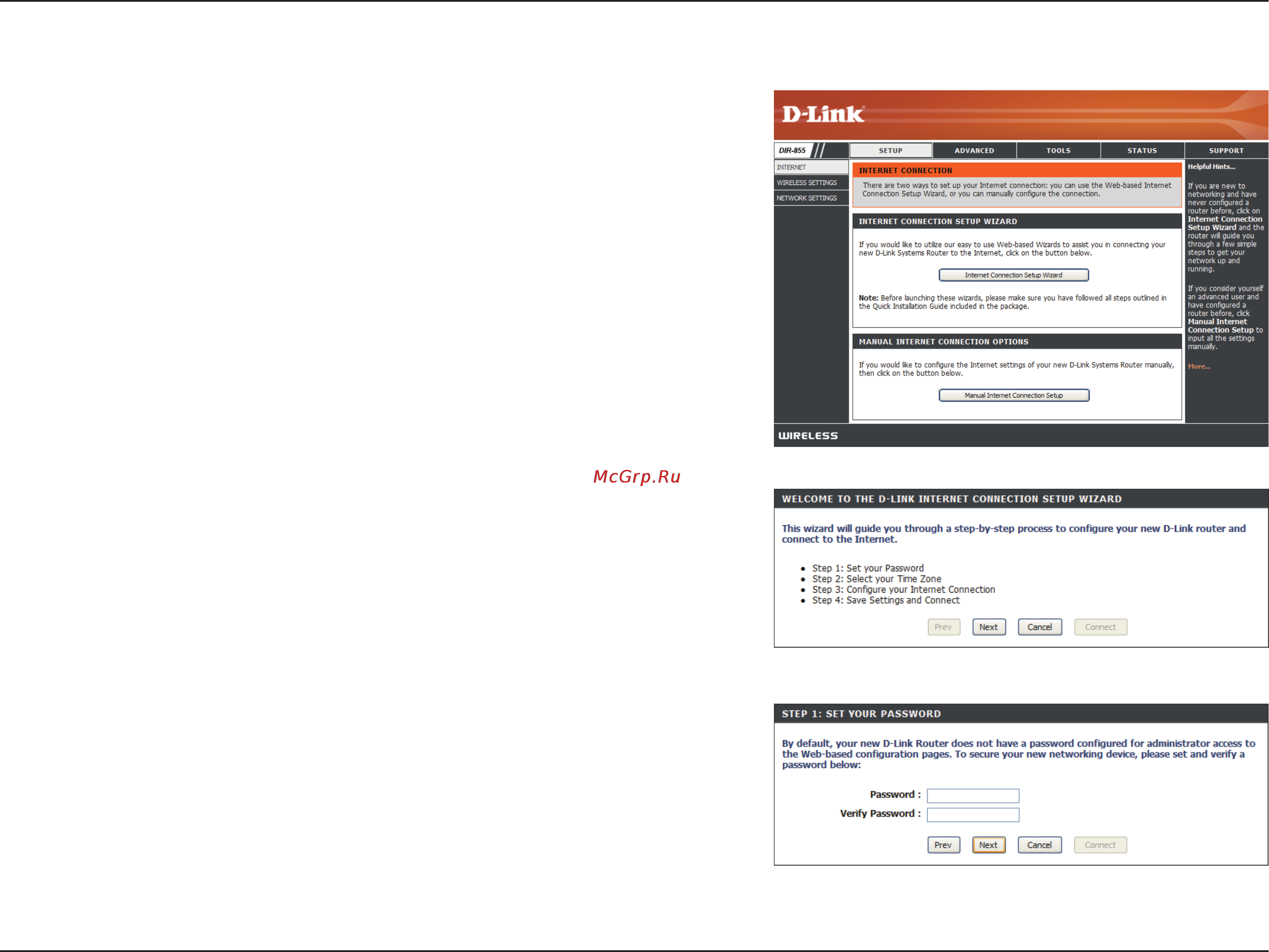

Setup Wizard

Click Launch Internet Connection Setup Wizard to begin.

If you want to enter your settings without running the wizard, click

Manual Conguration and skip to page 19.

Click Next to continue.

Create a new password and then click Next to continue.
