52D-Link DIR-855 User Manual
Section 3 - Conguration
UPnP
Internet Ping Block
Internet Port Speed
Multicast Streams
To use the Universal Plug and Play (UPnP
™
) feature
click on Enabled. UPNP provides compatibility with
networking equipment, software and peripherals.
Unchecking the box will not allow the DIR-855 to
respond to pings. Blocking the Ping may provide
some extra security from hackers. Check the box
to allow the Internet port to be “pinged”.
Select from the drop-down menu if you would like
to apply the Inbound Filter to the WAN ping. Refer
to page 43 for more information regarding Inbound
Filter.
You may set the port speed of the Internet port to
10Mbps, 100Mbps, 1000Mbps, or auto. Some older
cable or DSL modems may require you to set the
port speed to 10Mbps.
Check the box to allow multicast trafc to pass
through the router from the Internet.
Enable UPnP:
WAN Ping:
WAN Ping Inbound
Filter:
WAN Port Speed:
Multicast streams:

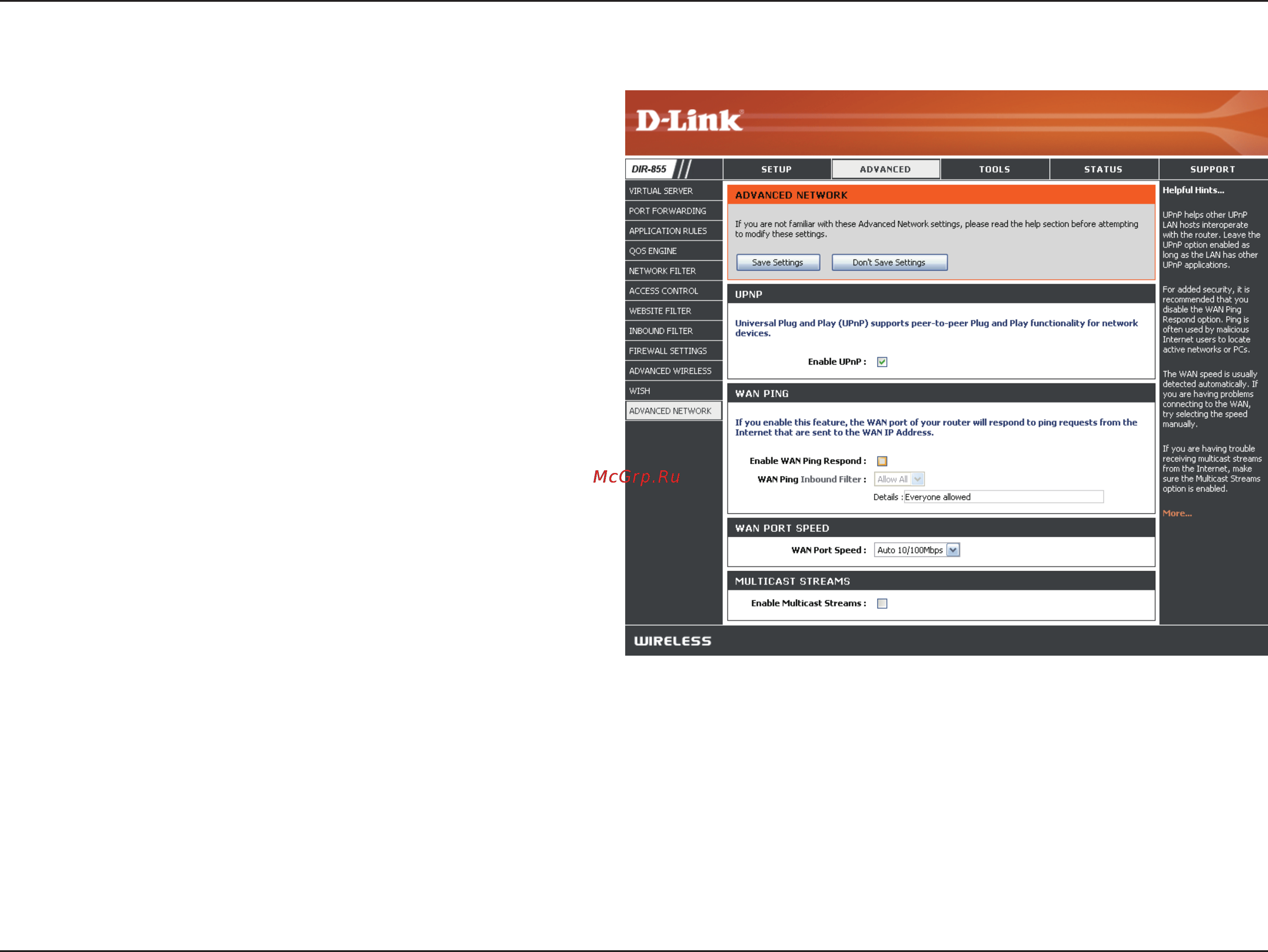

Advanced Network Settings
